Description

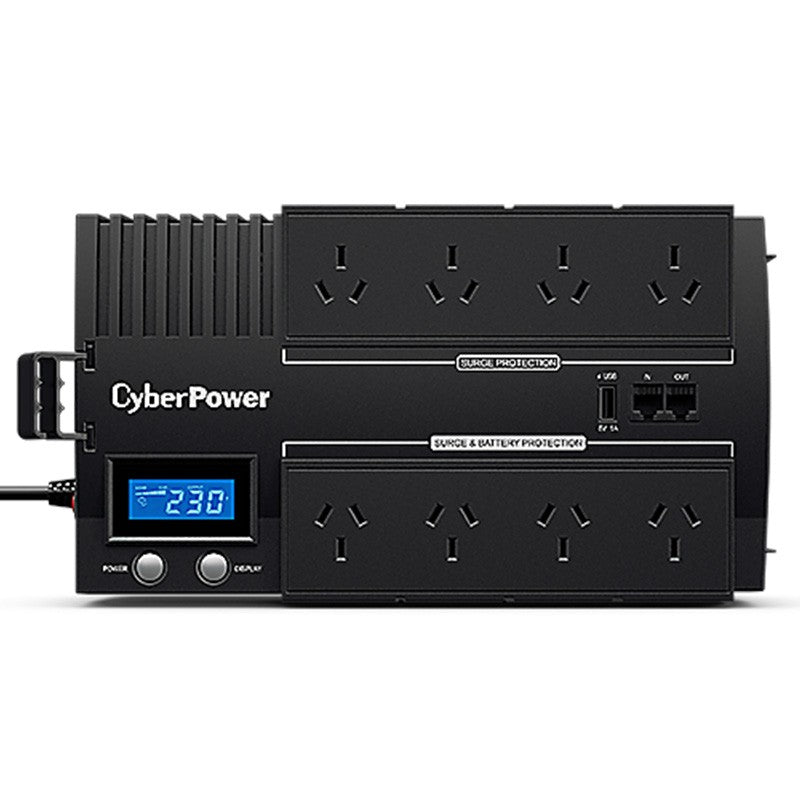

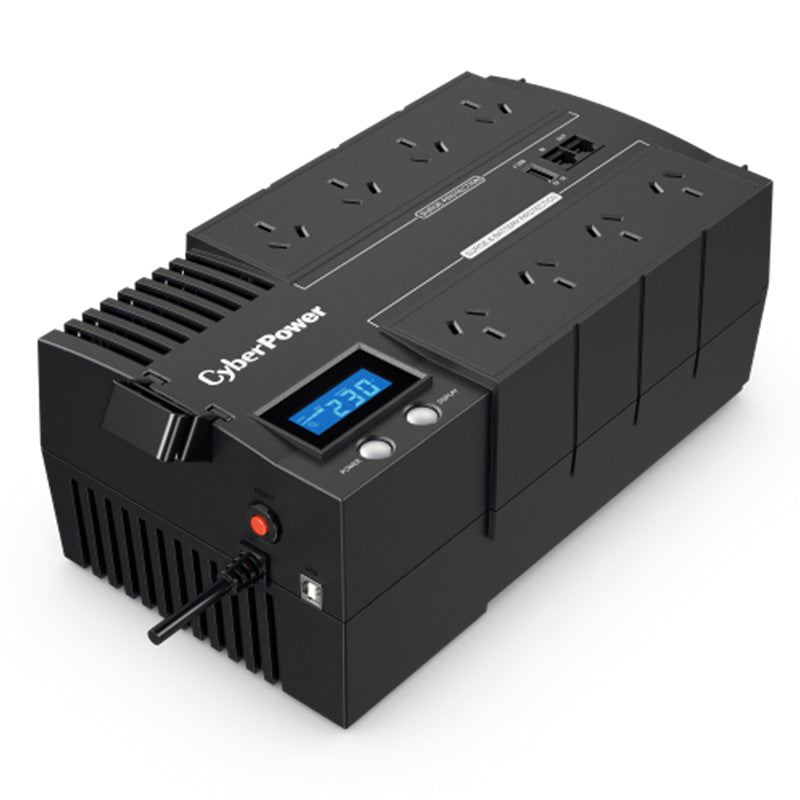

CyberPower BRIC-LCD 1200VA/720W (10A) Line Interactive UPS -(BR1200ELCD)
CyberPower BR1200ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.
Line-interactive UPS Topology
Simulated Sine Wave Output
USB Charging Port(s)
Phone/Fax/Modem/DSL/Network Protection
PowerPanel Management Software
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Surge and Spike Protection
LCD Status Display
-
Wall Mount Installation
SPECIFICATIONS:
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Desktop |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
INPUT |
|
Nominal Input Voltage ( Vac ) |
230 ± 10% |
Input Voltage Range ( Vac ) |
170 ~ 290 |
Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
5.45 |
Input Connector Type |
AU |
Power Cord Length (ft.) |
5 |
Power Cord Length (m.) |
1.5 |
OUTPUT |
|
Capacity (VA) |
1200 |
Capacity (Watts) |
720 |
On Battery Waveform |
Simulated Sine Wave |
On Battery Voltage(s) ( Vac ) |
230 ± 10 % |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
Overload Protection |
Circuit Breaker |
Outlet(s) - Total |
8 |
Outlet Type |
AU x 8 |
Outlet(s) - Battery & Surge Protected |
4 |
Outlet(s) - Surge-Only Protected |
4 |
Typical Transfer Time ( ms ) |
4 |
USB Charging Port(s) |
USB-A x 1 |
USB Charging Total Output |
5 V/ 1 A |
BATTERY |
|
Runtime at Half Load ( min ) |
9 |
Runtime at Full Load ( min ) |
2 |
Runtime at 60W ( min ) |
80 |
Runtime at 90W ( min ) |
51 |
Typical Recharge Time ( Hours ) |
8 |
Start On Battery |
Yes |
User-replaceable |
Yes |
Battery Type |
Sealed Lead-acid |
Battery Cartridge (RBP) |
RBP0063 |
Battery Cartridge (RBP) Quantity ( pcs ) |
2 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
150 |
EMI/RFI Filtration |
Yes |
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Power Status, Battery Status, Load Status, Other Information |
LCD Setting & Control |
Alarm Setting |
LED Indicators |
Power On, Line Mode, Battery Mode, Low Battery |
HID Compliant USB Port(s) |
1 |
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs ) |
USB Cable x1, Phone Line x1 |
Power Management Software |
PowerPanel Personal (Recommended) |
PHYSICAL |
|
Wall Mount Installation |
Yes |
Enclosure Construction |
Plastic |
Color |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
6.54 x 4.65 x 11.34 |
Dimensions (WxHxD) (mm.) |
166 x 118 x 288 |
Weight (lbs.) |
18.08 |
Weight (kg.) |
8.2 |
SHIPPING DIMENSIONS |
|
Dimensions (WxHxD) (in.) |
6.22 x 9.06 x 12.80 |
Dimensions (WxHxD) (mm.) |
158 x 230 x 325 |
Weight (lbs.) |
18.52 |
Weight (kg.) |
8.4 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
-4 ~ 122 |
Storage Temperature (°C) |
-20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Storage Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
137 |
Audible Noise at 1.5M from Surface of Unit ( dBA ) |
40 |
CERTIFICATIONS |
|
Certifications |
CE, RCM |
RoHS |
Yes |
OTHERS |
|
Package Contents |
BR1200ELCD UPS USB Cable Phone Line User's Manual Product Registration Card |
