Description

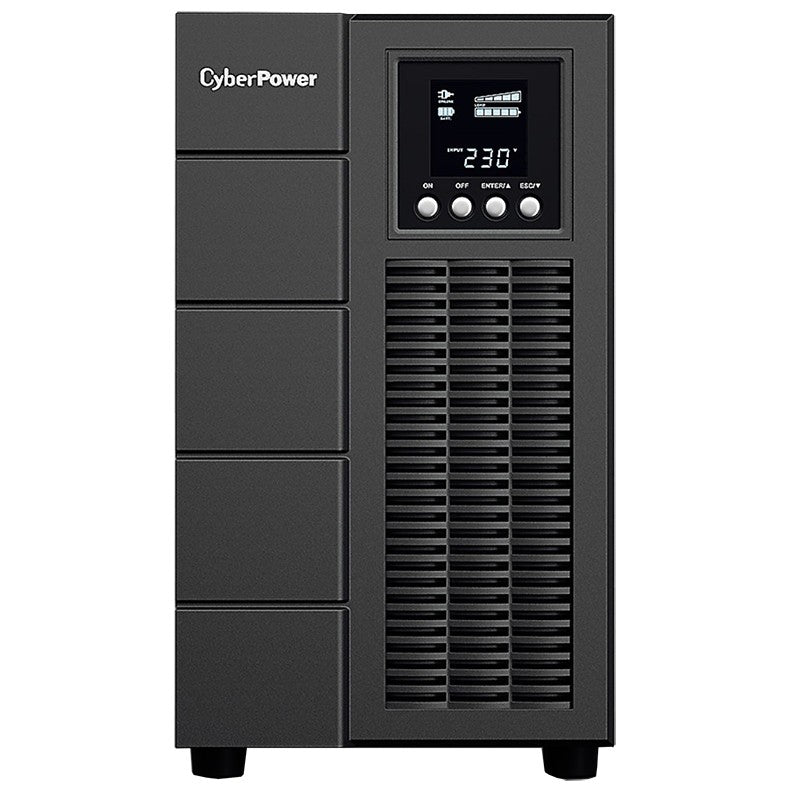

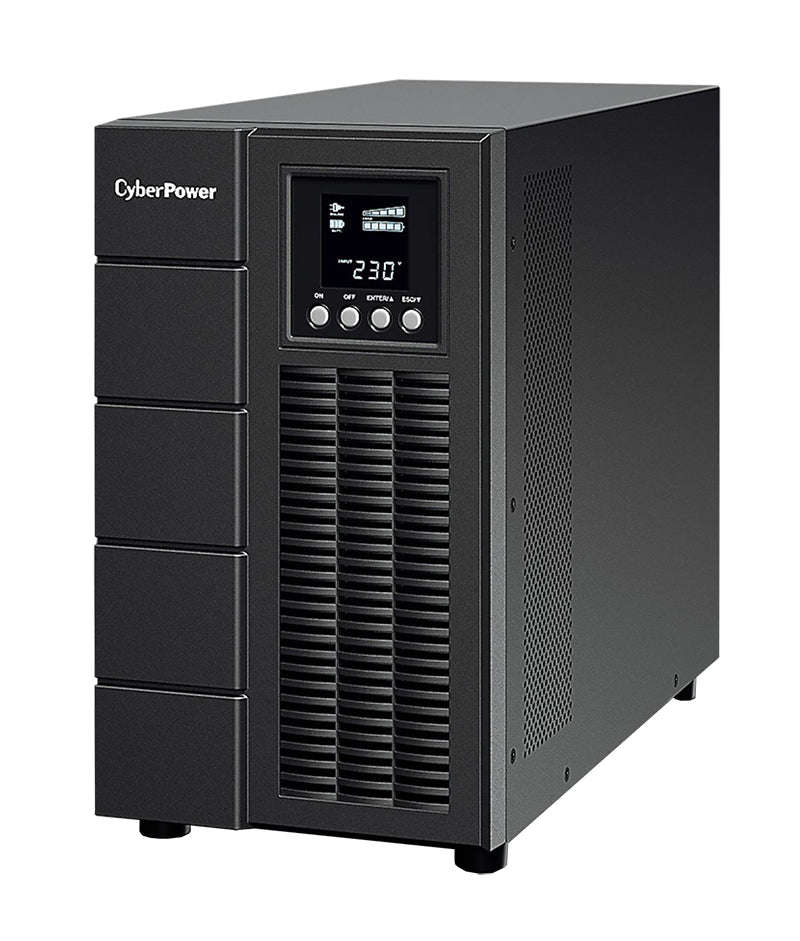

CyberPower Online S 2000VA / 1800W Tower Online UPS
CyberPower OLS2000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SPECIFICATIONS:
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Tower |
UPS Topology |
Online Double Conversion |
Energy Saving Technology |
Online ECO Mode Efficiency > 95% |
Active PFC Compatibility |
Yes |
INPUT |
|
Generator Compatibility |
Yes |
Nominal Input Voltage ( Vac ) |
230 ± 10% |
Input Voltage Range ( Vac ) |
160 ~ 300 |
Adjustable Voltage Range ( Vac ) |
0~50% Load for 110 ~ 300 Vac 0~60% Load for 120 ~ 300 Vac 0~80% Load for 140 ~ 300 Vac 0~100% Load for 160 ~ 300 Vac |
Input Frequency ( Hz ) |
50 ± 10 60 ± 10 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
9 |
Input Power Factor |
0.98 |
Input Connector Type |
IEC C20 |
Detachable Power Cord Plug Type |
AU x 1 |
Power Cord Length (ft.) |
5.9 |
Power Cord Length (m.) |
1.8 |
OUTPUT |
|
Capacity (VA) |
2000 |
Capacity (Watts) |
1800 |
On Battery Waveform |
Pure Sine Wave |
On Battery Voltage(s) ( Vac ) |
208 ± 1 % 220 ± 1 % 230 ± 1 % 240 ± 1 % |
Output Voltage Setting |
Configurable |
On Battery Frequency ( Hz ) |
50 ± 0.5% 60 ± 0.5% |
Output Frequency Setting |
Configurable |
Power Factor |
0.9 |
ECO Mode Voltage Tolerance |
± 15 % |
Overload Protection |
Internal Current Limiting, Circuit Breaker, Fuse |
Overload Protection (Line Mode) |
110~120% Load for 1 min, >120% Load Immediately |
Overload Protection (Battery Mode) |
110~120% Load for 10 sec, >120% Load Immediately |
Overload Protection (Bypass Mode) |
>130% Load Immediately |
Crest Factor |
3 : 1 |
Harmonic Distortion (Linear Load) |
THD＜3% |
Harmonic Distortion (Non-linear Load) |
THD＜5% |
Internal Bypass |
Automatic Bypass, Manual Bypass |

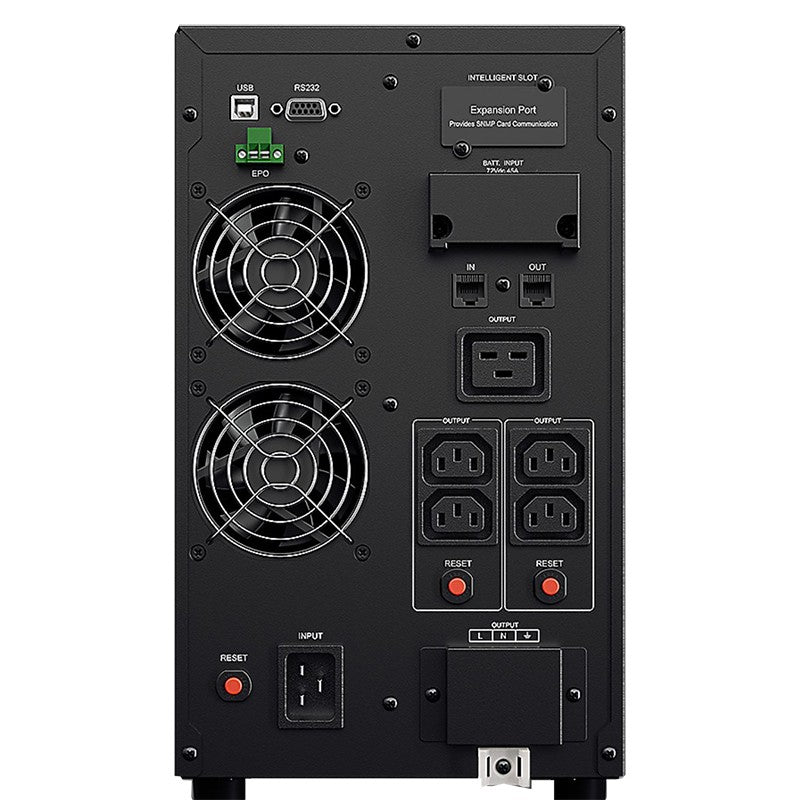

Outlet(s) - Total |
5 |
Outlet Type |
Hardwire Terminal Block x 1 IEC C13 x 4 |
Outlet(s) - Battery & Surge Protected |
4 |
Typical Transfer Time ( ms ) |
0 |
BATTERY |
|
Runtime at Half Load ( min ) |
15 |
Runtime at Full Load ( min ) |
5 |
Typical Recharge Time ( Hours ) |
5 |
Maximum Charging Current ( A ) |
1 |
Start On Battery |
Yes |
Smart Battery Management (SBM) |
Yes |
User-replaceable |
No |
Battery Type |
Sealed Lead-acid |
Compatible Extended Battery Module (EBM) |
BPSE72V45A |
Max. EBM Quantity ( pcs ) |
3 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
440 |
EMI/RFI Filtration |
Yes |
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting |
HID Compliant USB Port(s) |
1 |
Emergency Power Off (EPO) Port |
Yes |
Audible Alarms |
Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
Management Cable ( pcs ) |
Power Cord x2, USB Cable x1, Phone Line x1 |
Power Management Software |
PowerPanel Business (Recommended) |
PHYSICAL |
|
Enclosure Construction |
Metal |
Color |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
7.72 x 12.27 x 16.38 |
Dimensions (WxHxD) (mm.) |
196 x 337 x 416 |
Weight (lbs.) |
52.47 |
Weight (kg.) |
23.8 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
20 ~ 90 |
Operating Elevation ( feet/meters ) |
0-4,921 feet (0-1,500 meters) |
Storage Temperature (°F) |
-4 ~ 122 |
Storage Temperature (°C) |
-20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % ) |
10 ~ 90 |
Storage Elevation ( feet/meters ) |
0-4,921 feet (0-1,500 meters) |
Online Thermal Dissipation ( BTU/hr ) |
666 |
Audible Noise at 1.5M from Surface of Unit ( dBA ) |
45 |
CERTIFICATIONS |
|
Certifications |
CE, RCM |
RoHS |
Yes |
OTHERS |
|
What’s in the Box |
OLS2000E UPS Power Cord USB Cable Phone Line User's Manual * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
