Description

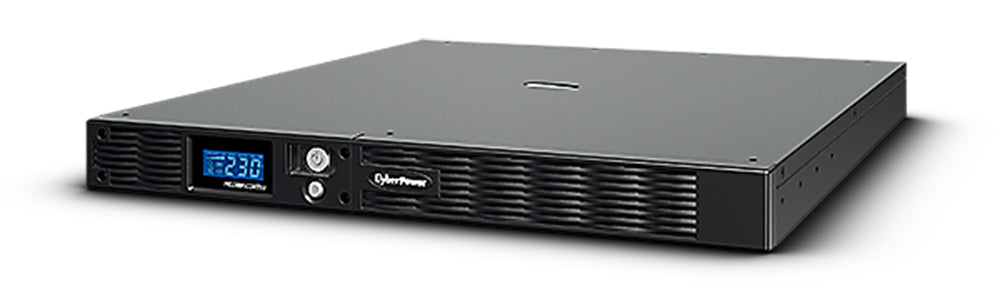

CyberPower PRO Rack LCD 1000VA / 800W 1U Line Interactive UPS
CyberPower PR1000ELCDRT1U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Surge and Spike Protection

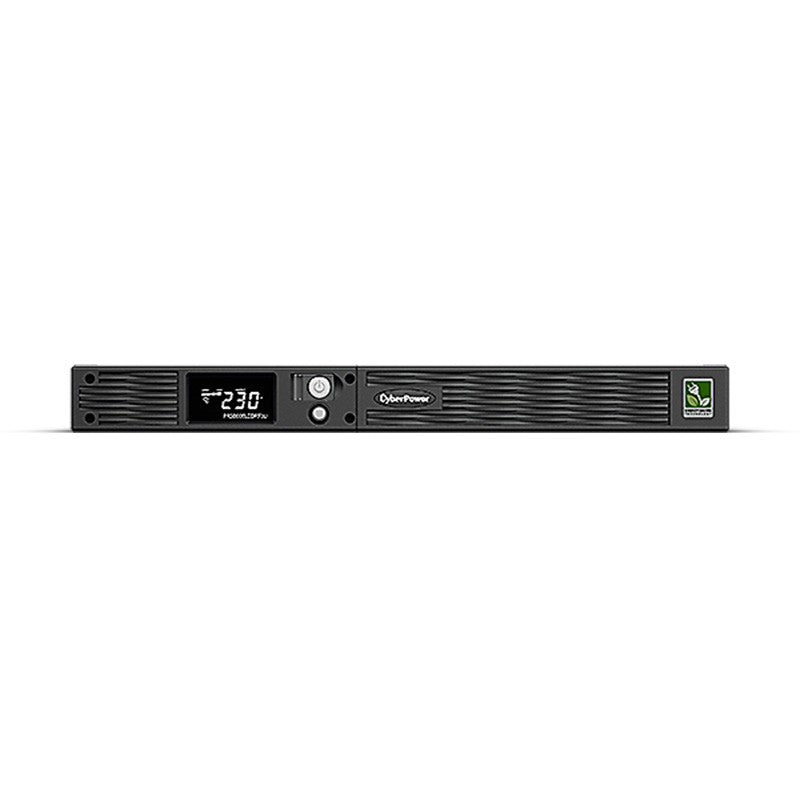

LCD Status Display
Emergency Power Off (EPO) Port
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Hot-swappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations
SPECIFICATIONS:
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Rackmount, Tower |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
Active PFC Compatibility |
Yes |
INPUT |
|
Nominal Input Voltage ( Vac ) |
220 ± 5% 230 ± 5% 240 ± 5% |
Input Voltage Range ( Vac ) |
160 ~ 286 |
Adjustable Voltage Range ( Vac ) |
150 ~ 300 Vac |
Input Frequency ( Hz ) |
50 ± 3 60 ± 3 |
Input Frequency Detection |
Auto-sensing |
Input Connector Type |
IEC C14 |
Detachable Power Cord Plug Type |
AU x 1 |
Power Cord Length (m.) |
3 |
OUTPUT |
|
Capacity (VA) |
1000 |
Capacity (Watts) |
800 |
On Battery Waveform |
Pure Sine Wave |
On Battery Voltage(s) ( Vac ) |
220 ± 5 % 230 ± 5 % 240 ± 5 % |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Power Factor |
0.8 |
Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
Overload Protection |
Internal Current Limiting |

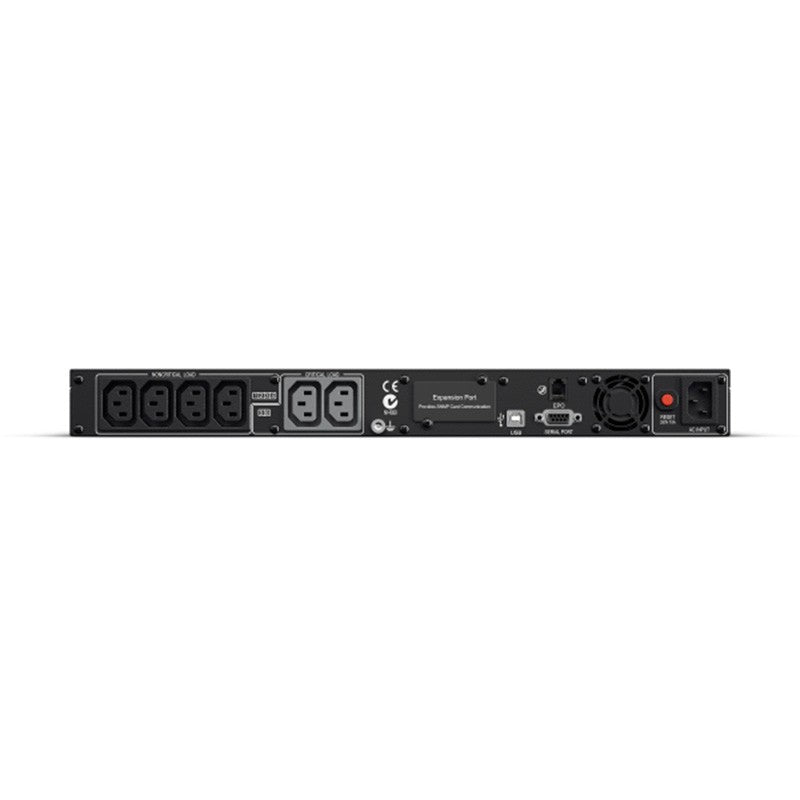

Outlet(s) - Total |
6 |
Outlet Type |
IEC C13 x 6 |
Outlet(s) - Battery & Surge Protected |
6 |
Outlet(s) - Critical Load (CL) |
2 |
Outlet(s) - Non-Critical Load (NCL) |
4 |
Typical Transfer Time ( ms ) |
4 |
BATTERY |
|
Runtime at Half Load ( min ) |
12 |
Runtime at Full Load ( min ) |
3.1 |
Typical Recharge Time ( Hours ) |
6 |
Start On Battery |
Yes |
User-replaceable |
Yes |
Hot-swappable |
Yes |
Battery Type |
Sealed Lead-acid |
Battery Cartridge (RBP) |
RBP0027 |
Battery Cartridge (RBP) Quantity ( pcs ) |
1 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
810 |
EMI/RFI Filtration |
Yes |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning |
LCD Setting & Control |
Alarm Setting, Input & Output, Battery Setting |
LED Indicators |
Power On |
HID Compliant USB Port(s) |
1 |
Emergency Power Off (EPO) Port |
Yes |
Audible Alarms |
Battery Mode, Low Battery, Overload, Overcharge, Overheat |
Management Cable ( pcs ) |
Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1 |
Power Management Software |
PowerPanel Business (Recommended) |
PowerPanel Cloud Service |
Yes - 90 Days Free Trial with PowerPanel Personal/Business |
PHYSICAL |
|
Enclosure Construction |
Metal |
Color |
Black |
Rackmount Ears |
Yes |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
16.9 x 1.7 x 19.3 |
Dimensions (WxHxD) (mm.) |
430 x 44 x 490 |
Weight (lbs.) |
40 |
Weight (kg.) |
18 |
Installed Rack Height ( U ) |
1 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
5 ~ 113 |
Storage Temperature (°C) |
-15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Storage Elevation ( feet/meters ) |
0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
72 |
CERTIFICATIONS |
|
Certifications |
CE, C-Tick, EAC |
RoHS |
Yes |
OTHERS |
|
What’s in the Box |
PR1000ELCDRT1U UPS Rackmount Ears Screw Kit Power Cord USB Cable Serial Cable EPO Cable User's Manual * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
