Description

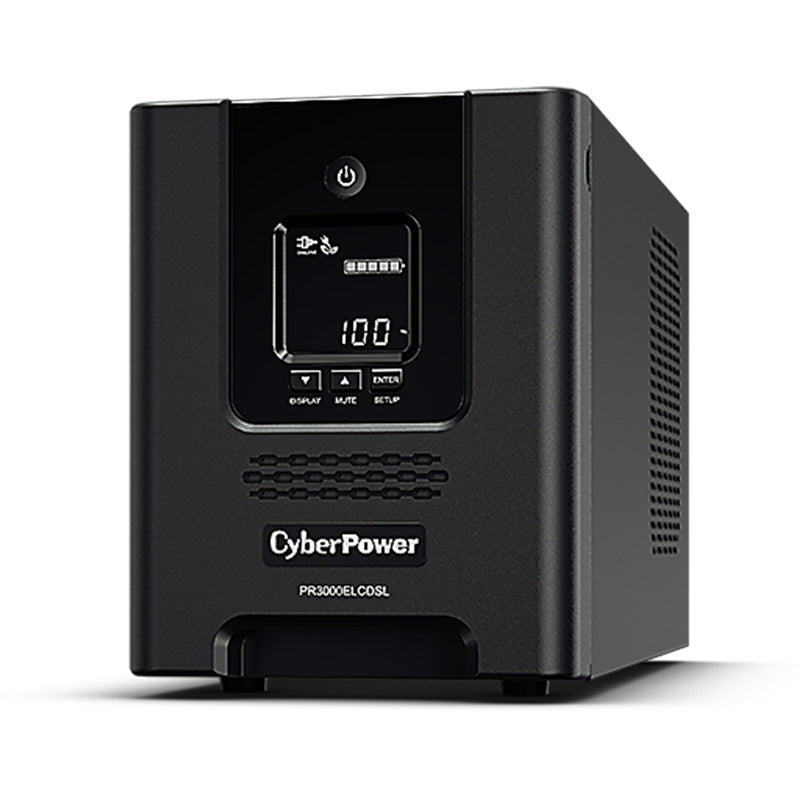

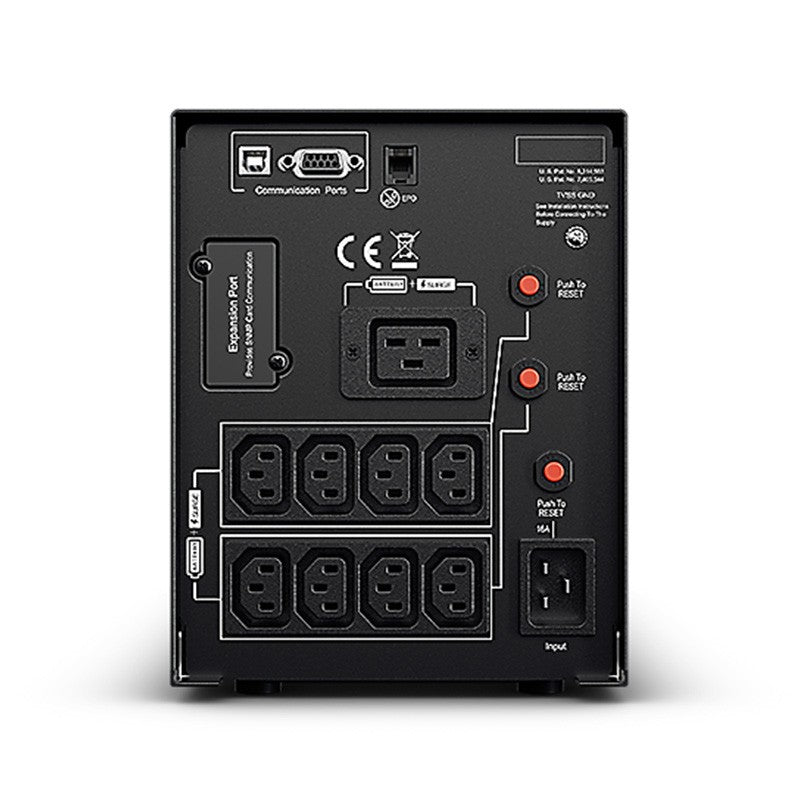

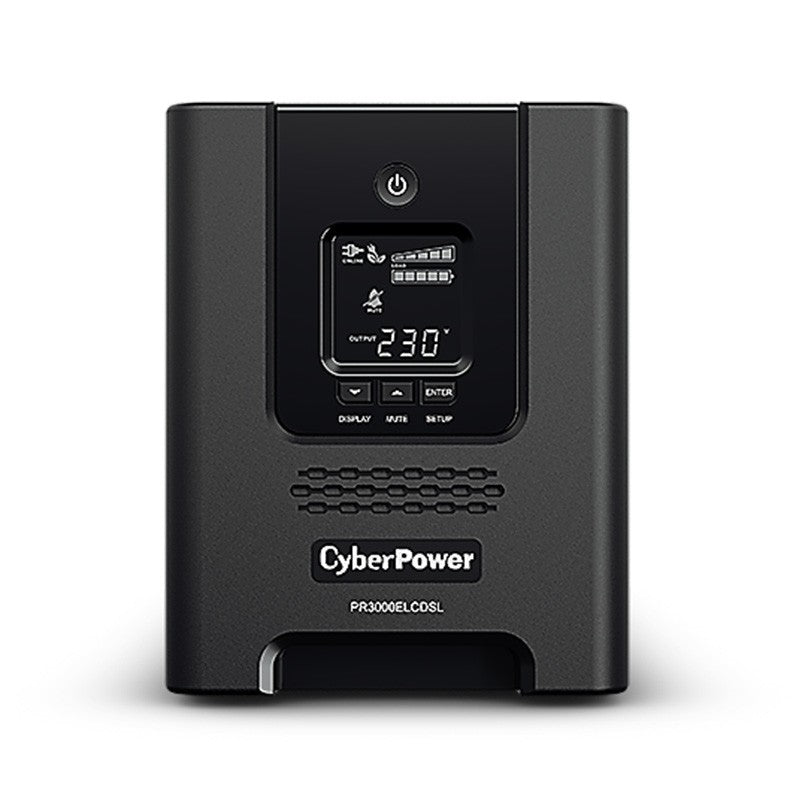

CyberPower Smart App Professional Tower 3000VA/2700Watt UPS
CyberPower PR3000ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Tower Form Factor
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SPECIFICATIONS:
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Tower |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
Energy Star Qualified |
Yes |
Active PFC Compatibility |
Yes |
INPUT |
|
Nominal Input Voltage ( Vac ) |
230 |
Input Voltage Range ( Vac ) |
151 ~ 296 |
Input Frequency ( Hz ) |
50 ± 3 60 ± 3 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
16 |
Input Connector Type |
IEC C20 |
Detachable Power Cord Plug Type |
AU x 1 IEC C14 x 1 |
Power Cord Length (ft.) |
10 6 |
Power Cord Length (m.) |
3.05 1.83 |
OUTPUT |
|
Capacity (VA) |
3000 |
Capacity (Watts) |
2700 |
On Battery Waveform |
Pure Sine Wave |
On Battery Voltage(s) ( Vac ) |
230 ± 10% |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
Overload Protection |
Internal Current Limiting, Circuit Breaker |
Outlet(s) - Total |
9 |
Outlet Type |
IEC C19 x 1 IEC C13 x 8 |
Outlet(s) - Battery & Surge Protected |
9 |
Typical Transfer Time ( ms ) |
4 |
BATTERY |
|
Runtime at Half Load ( min ) |
7 |
Runtime at Full Load ( min ) |
2 |
Typical Recharge Time ( Hours ) |
8 |
Start On Battery |
Yes |
User-replaceable |
Yes |
Hot-swappable |
Yes |
Battery Type |
Sealed Lead-acid |
Battery Cartridge (RBP) |
RBP0116 |
Battery Cartridge (RBP) Quantity ( pcs ) |
1 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
405 |
EMI/RFI Filtration |
Yes |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log |
LED Indicators |
Power On |
HID Compliant USB Port(s) |
1 |
Emergency Power Off (EPO) Port |
Yes |
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs ) |
Power Cord x5, USB Cable x1, EPO Cable x1 |
Power Management Software |
PowerPanel Business (Recommended) |
PHYSICAL |
|
Enclosure Construction |
Metal |
Color |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
6.69 x 8.70 x 17.00 |
Dimensions (WxHxD) (mm.) |
170 x 221 x 432 |
Weight (lbs.) |
56.6 |
Weight (kg.) |
25.7 |
SHIPPING DIMENSIONS |
|
Dimensions (WxHxD) (in.) |
12.44 x 14.17 x 22.80 |
Dimensions (WxHxD) (mm.) |
316 x 360 x 579 |
Weight (lbs.) |
61.53 |
Weight (kg.) |
27.91 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
5 ~ 113 |
Storage Temperature (°C) |
-15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
Storage Elevation ( feet/meters ) |
0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
200 |
CERTIFICATIONS |
|
Certifications |
CE, RCM |
RoHS |
Yes |
OTHERS |
|
What’s in the Box |
PR3000ELCDSL UPS Power Cord USB Cable EPO Cable User's Manual |
