Description

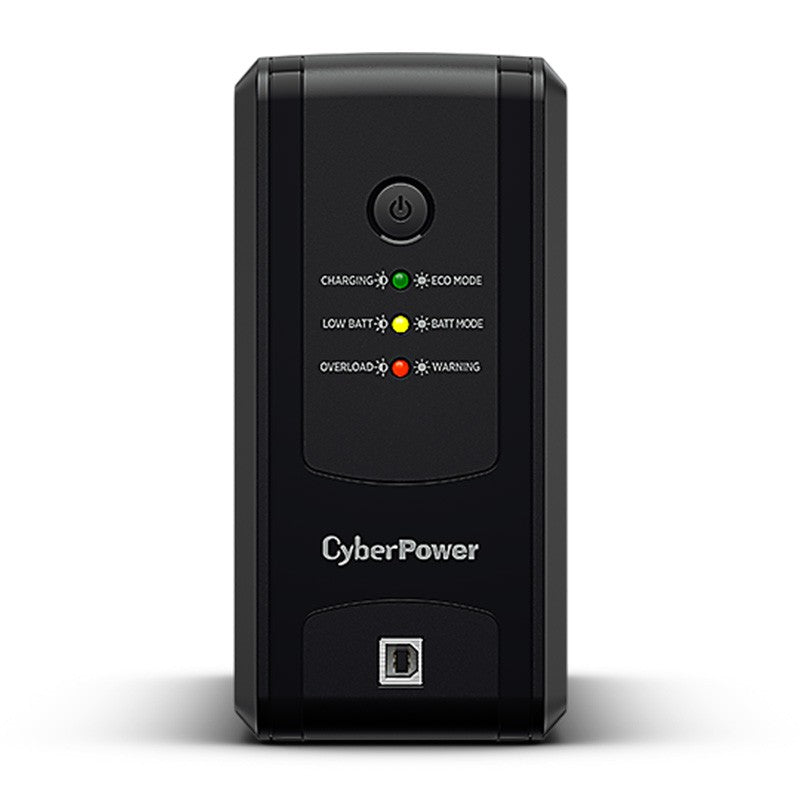

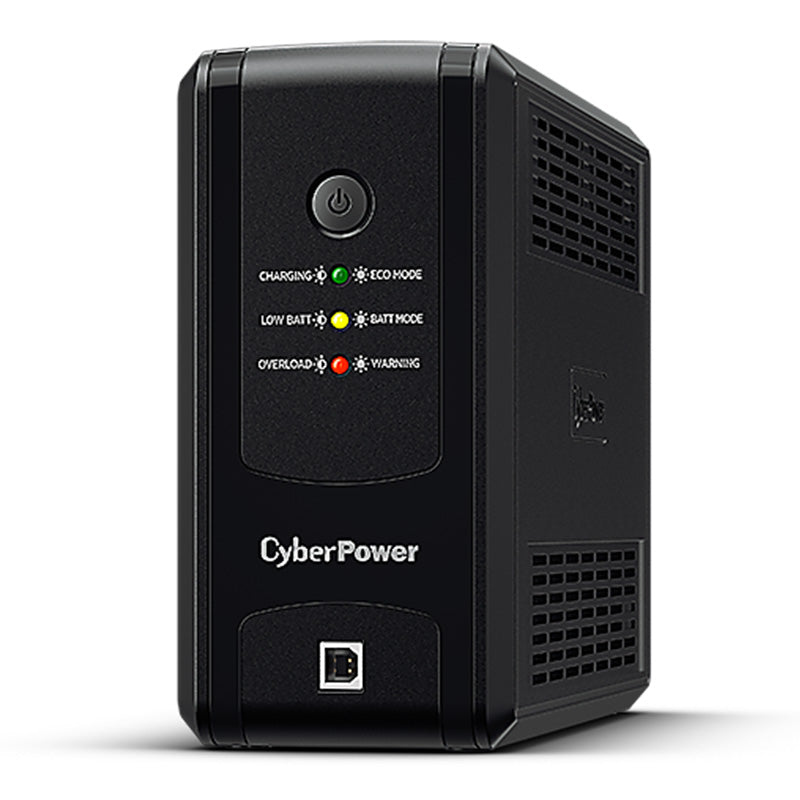

CyberPower Sytems Value SOHO 850VA / 425W Line Interactive UPS
CyberPower UT850EG guarantees power protection for computers, POS systems, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design helps UPS achieve ultra-low power consumption to reduce energy costs while lowering UPS operating temperature, which extends its battery lifespan.
The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.
Line-interactive UPS Topology
Automatic Voltage Regulation (AVR)
LED Status Indicator
Surge and Spike Protection
High-speed Ethernet Data Transmission
PowerPanel Management Software
EMI and RFI Filtration
Energy Saving Technology
Generator Compatible
Overload Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
Configurable Alarm
SPECIFICATIONS:
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Tower |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
INPUT |
|
Generator Compatibility |
Yes |
Nominal Input Voltage ( Vac ) |
230 ± 10% |
Input Voltage Range ( Vac ) |
165 ~ 290 |
Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
3.69 |
Input Connector Type |
AU |
Power Cord Length (ft.) |
4 |
Power Cord Length (m.) |
1.2 |
OUTPUT |
|
Capacity (VA) |
850 |
Capacity (Watts) |
425 |
On Battery Waveform |
Simulated Sine Wave |
On Battery Voltage(s) ( Vac ) |
230 ± 10 % |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
Overload Protection |
Internal Current Limiting, Fuse |
Outlet(s) - Total |
3 |
Outlet Type |
AU x 3 |
Outlet(s) - Battery & Surge Protected |
3 |
Typical Transfer Time ( ms ) |
4 |
BATTERY |
|
Runtime at 60W ( min ) |
30 |
Runtime at 90W ( min ) |
20 |
Runtime at 200W ( min ) |
5.5 |
Typical Recharge Time ( Hours ) |
6 |
Start On Battery |
Yes |
User-replaceable |
No |
Battery Type |
Sealed Lead-acid |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
150 |
EMI/RFI Filtration |
Yes |
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
MANAGEMENT & COMMUNICATIONS |
|
LED Indicators |
Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload, UPS Fault |
HID Compliant USB Port(s) |
1 |
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs ) |
USB Cable x1 |
Ethernet Data Transmission Speed |
Up to 1Gbps |
Power Management Software |
PowerPanel Personal (Recommended) |
PHYSICAL |
|
Enclosure Construction |
Plastic |
Color |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
3.31 x 6.85 x 11.02 |
Dimensions (WxHxD) (mm.) |
84 x 174 x 280 |
Weight (lbs.) |
9.26 |
Weight (kg.) |
4.2 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
-4 ~ 122 |
Storage Temperature (°C) |
-20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Storage Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
34 |
CERTIFICATIONS |
|
Certifications |
RCM |
RoHS |
Yes |
OTHERS |
|
What’s in the Box |
UT850EG UPS USB Cable User's Manual * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
