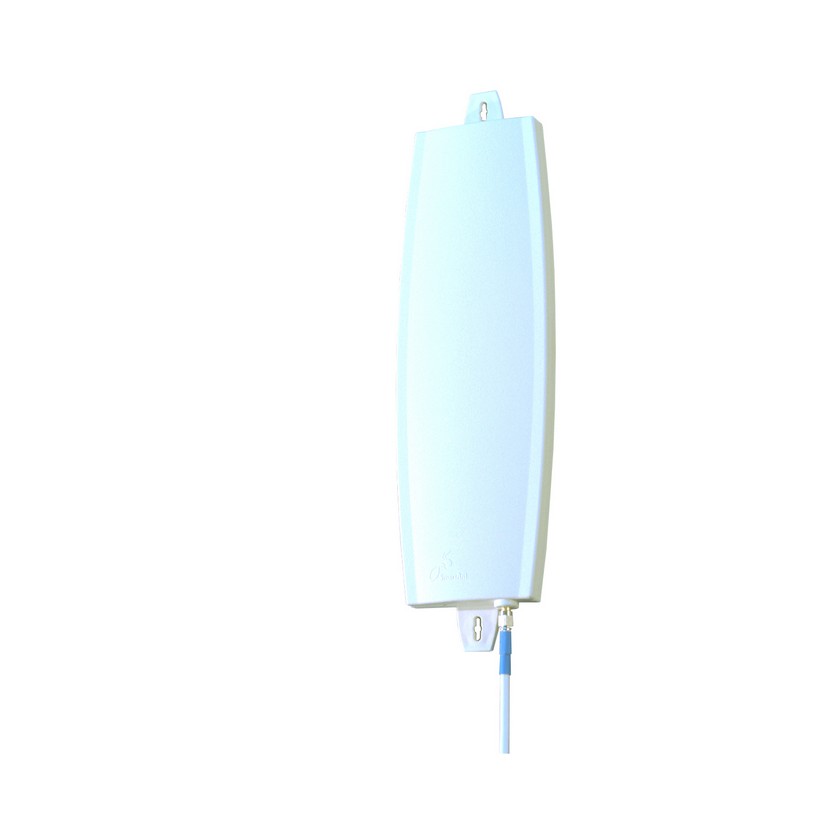

D-Link ANT24-1200 Indoor 11.5dbi High Gain Directional Panel Antenna

Roll over image to zoom in Click on image to zoom

D-Link ANT24-1200 Indoor 11.5dbi High Gain Directional Panel Antenna

Name: D-Link ANT24-1200 Indoor 11.5dbi High Gain Directional Panel Antenna
Brand: D-link
Price: 134.55 AUD
Availability: InStock

D-link

Price:

$134.55

Quantity:

More payment options

Share this product

Product Name: D-Link ANT24-1200 Indoor 11.5dbi High Gain Directional Panel Antenna

Model Number: ANT24-1200

Brand: D-Link

Manufacturer Warranty: 1 Year

The D-Link ANT24-1200 High Gain Indoor Directional Panel Antenna is designed for use with wireless devices operating in the 2.4GHz frequency band such as 802.11 standard wireless access points and routers. It provides a Gain of 12dBi to give your wireless network an extended operating range. For best performance, users can use an antenna of the same Gain (12dBi) or higher, at the other end of the connection to take advantage of this antenna™s powerful signal transmission1. The antenna can be used at homes, businesses or public hotspots.

1 Transmission and reception distances can vary according to the transmission speeds. To get maximum signal coverage, make sure there is no obstruction in the signal path between the transmission and reception ends.

Data Sheet	Data Sheet Link
Electrical Properties
Frequency Range	2400-2500MHz
Peak Gain	12dBi
VSWR	1.5 : 1 Max
Polarization	Linear, vertical
Horizontal Half Power Beam Width (HPBW/ H-PLANE)	80°
Vertical Half Power Beam Width (HPBW/ V-PLANE)	23°
Front to Back Ratio	15 dB
Downtilt	0°
Power Handling	20 W (cw)
Impedance	50 ohms
Connector	SMA female (built-in)
Extension Cable	3 m with SMA and RP-SMA connectors
Mounting Type	Window/ Wall
Physical & Environmental
Survival Wind Speed	180km/hr
Operating Temperature	-10°C to +55°C
Operating Humidity	95% @ 55°C
Color	White
Material	ABS, UV resistant
Weight	190g
Dimensions	330 (L) x 93 (W) x 20.7 (H) mm
Note	1 Transmission and reception distances can vary according to the transmission speeds. To get maximum signal coverage, make sure there is no obstruction in the signal path between the transmission and reception ends. 2 The transmission distance range depends on the two same spec antennas with default cable loss under free line of sight environment.

* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
