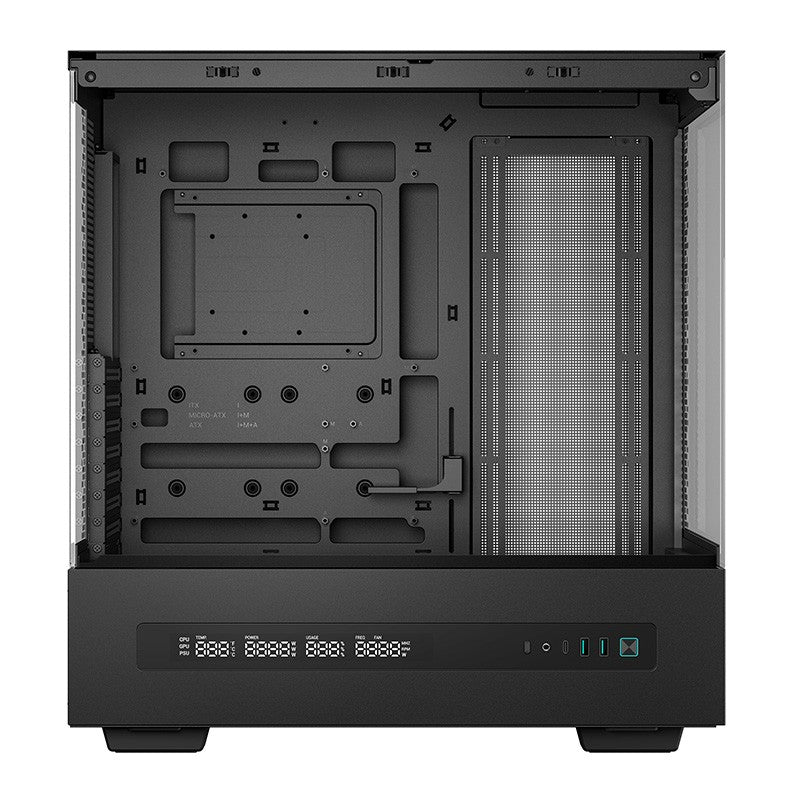

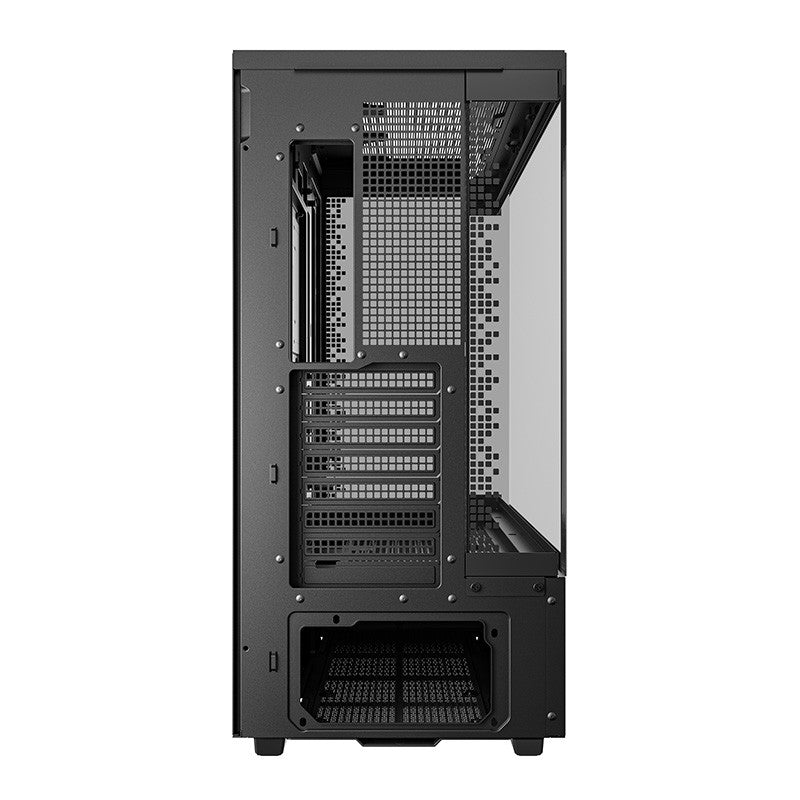

Deepcool CH690 Digital TG ATX Case - Black

Net Weight

9.8Kg

Materials

ABS+SPCC+Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX / ATX

ATX(Rear Connector)/Micro-ATX(Rear Connector)

Front I/O Ports

USB3.0×2?Gen2 Type-C x1?Audio/Mic×1

3.5" Drive Bays

1

2.5" Drive Bays

2+1

Expansion Slots

8 Slots

Pre-Installed Fans

None

Fan Support

Front:NA

Top:3×120 / 3×140mm

Side:3×120 / 3×140mm

PSU Shrouded :3×120 / 3×140mm

Rear: 1×120 / 1×140mm

Radiator Support

Front: NA

Top: 120/140/240/280/360/420mm

Side: 120/140/240/280mm

Bottom: 120/240/360mm

CPU Cooler Height Limit

182mm

GPU Length Limit

450mm

Power Supply Type

ATX PS2?maximum length: 180mm?
