Description
SPECIFICATIONS:
Net Weight |
1847 g |

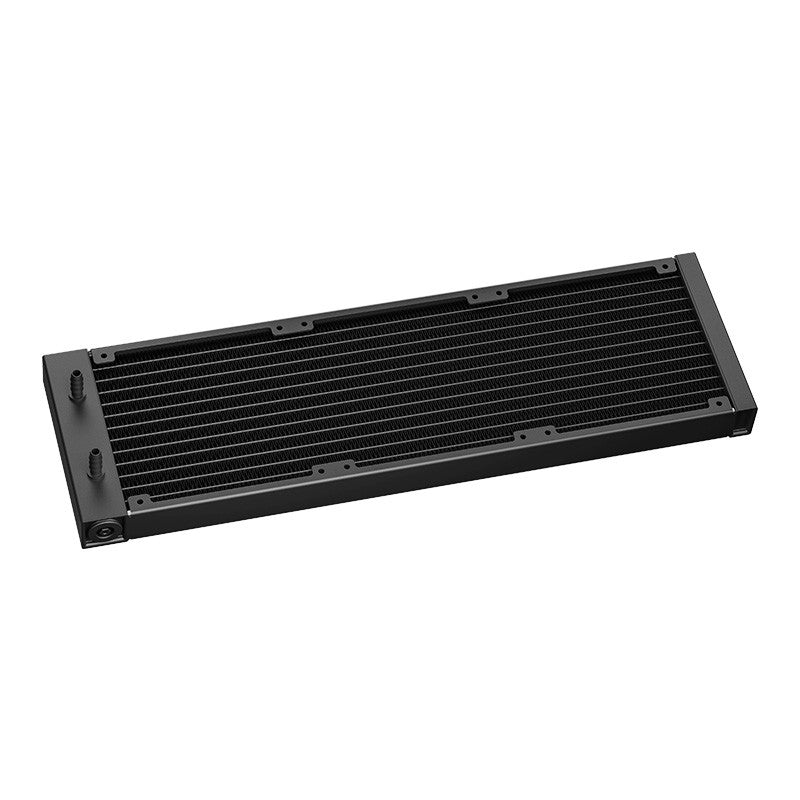

Radiator Dimensions |
402×120×27 mm(L×W×H) |
Radiator Material |
Aluminum |
Tube length |
410 mm |

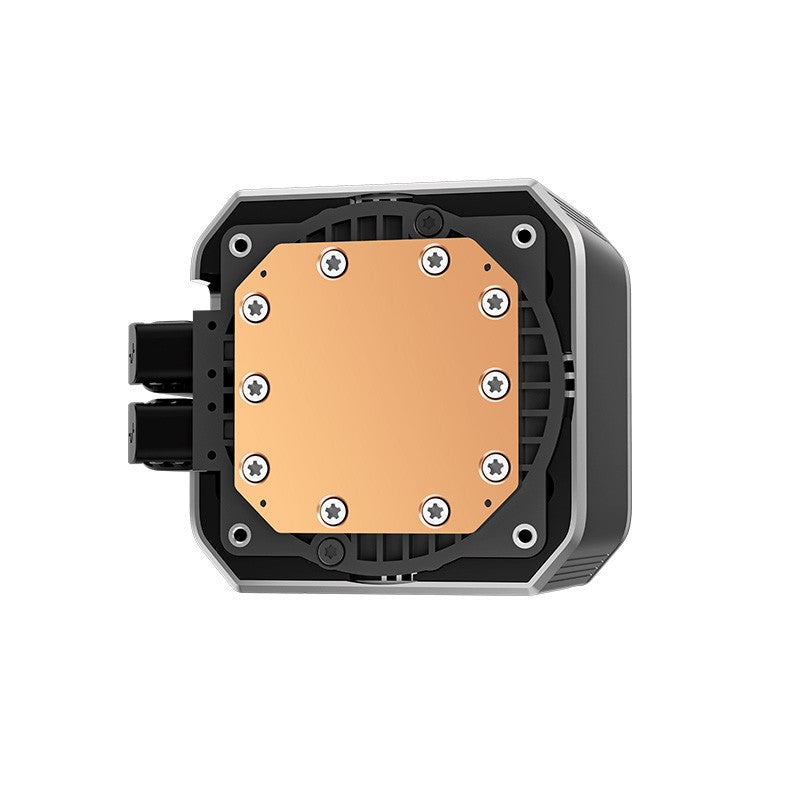

Pump Dimensions |
93×77×66 mm(L×W×H) |
Pump Speed |
3400 RPM±10% |
Pump Connector |
3-pin |
Pump Rated Voltage |
12 VDC |
Pump Rated Current |
0.35 A |
Pump Power Consumption |
4.2 W |
Fan Dimensions |
120×120×25 mm(L×W×H) |
Fan Speed |
500~2150 RPM±10% |
Fan Airflow |
72.45 CFM |
Fan Air Pressure |
4.32 mmAq |
Fan Noise |
≤36.49 dB(A) |
Fan Connector |
4-pin PWM |
Bearing Type |
Fluid Dynamic Bearing |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.3 A |
Fan Power Consumption |
3.6 W |
LED Type |
Addressable RGB LED |
LED Connector |
3-pin(+5V-D-G) |
LED Rated Voltage |
5 VDC |
LED Power Consumption |
2.45 W（PUMP） |
Display Specifications |
2.83 inch 480×640 TFT LCD |
Application For |
Intel LGA1700/1200/1151/1150/1155 AMD AM5/AM4 |
