Description
SPECIFICATIONS:
TECHNICAL INFORMATION |
|
Connectivity Technology |
Wired |
Number of Displays Supported |
4 |
Device Supported |
Notebook |
Management Features |
Host PC Management: MAC address pass-through PXE Boot Dock Power Button Sync Wake-On-LAN WLAN to LAN switch Kernel Direct Memory Access (DMA) protection
Dock Management Features: Host PC based firmware update Firmware update on disconnect Port Disablement |
VIDEO RESOLUTION |
|
DP1.4 with Display Stream Compression |
4 x WQHD (3440 x 1440) @ 60Hz 3 x WQHD (3440 x 1440) @ 60Hz 2 x 5K (5120 x 2160) @ 60Hz 1 x 6K (6144 x 3456) @ 60Hz |
DP1.4 without Display Stream Compression |
Up to: 4 x HD (1280x720) @ 60Hz 3 x FHD (1920x1080) @ 60Hz 2 x QHD (2560x1440) @ 60Hz 1 x 4K (3840 x 2160) @ 60Hz |
NETWORK & COMMUNICATION |
|
Ethernet Technology |
RJ45 Ethernet port, 2.5GbE |

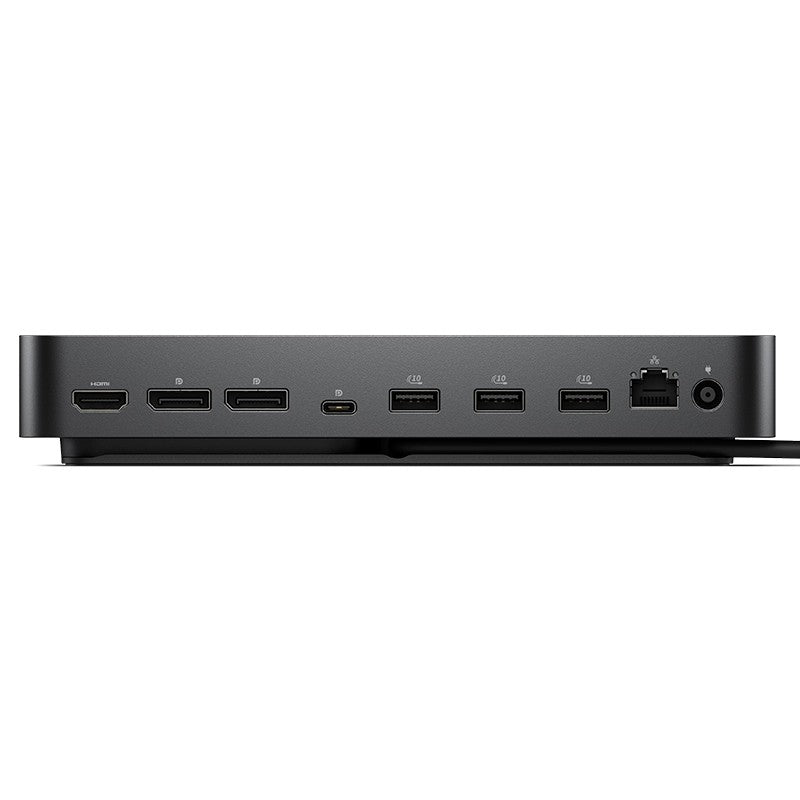

INTERFACES/PORTS |
|
Video interfaces |
2 x DP1.4 1 x HDMI 2.1 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 |
USB Ports (Data Only) |
4 x USB-A 3.2 Gen 2 (10 Gbps) 1 x USB-C 3.2 Gen 2 (10 Gbps) |
USB Power Delivery |
100W (Dell systems) 96W (non-Dell systems) |
USB Ports (Power) |
4 x USB-A 3.2 Gen 2 (4.5W each) 1 x USB-C 3.2 Gen 2 (15W) 1 x USB-C Multi-function DisplayPort (7.5W) All deliver power with or without PC |
SOFTWARE |
|
Operating System Supported |
Windows 10 Windows 11 Ubuntu Red Hat Enterprise Linux ChromeOS |
POWER DESCRIPTION |
|
Maximum Power Supply Wattage |
130W |
PHYSICAL CHARACTERISTICS |
|
Height |
205mm |
Width |
90mm |
Depth |
35.25mm |
Weight (Approximate) |
550 g |
MISCELLANEOUS |
|
Package Contents |
Docking Station Power Adapter and Power Cord Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information) |
Kensington Security Slot |
Yes |
