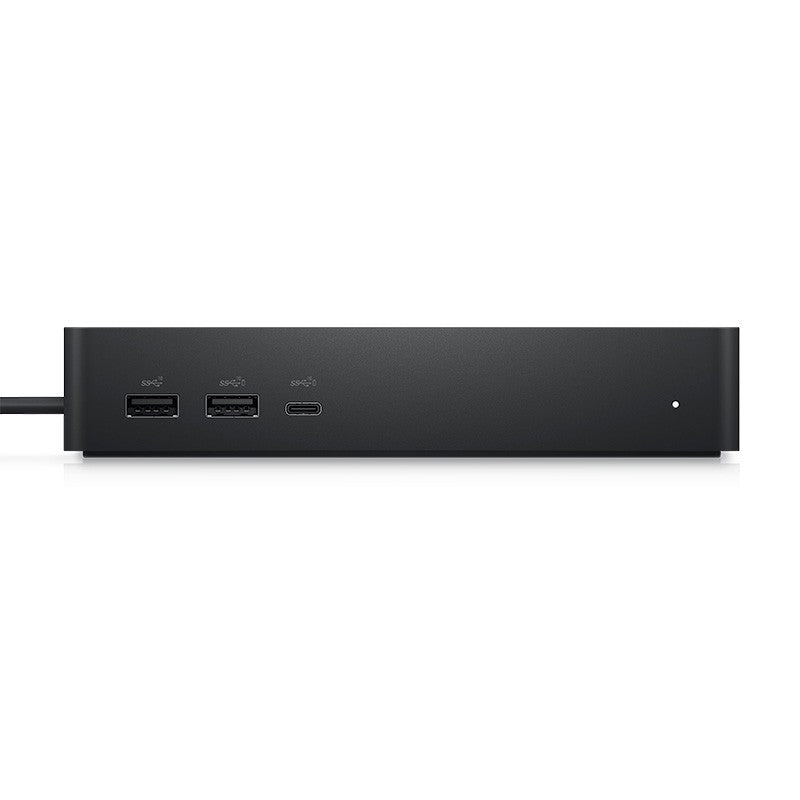

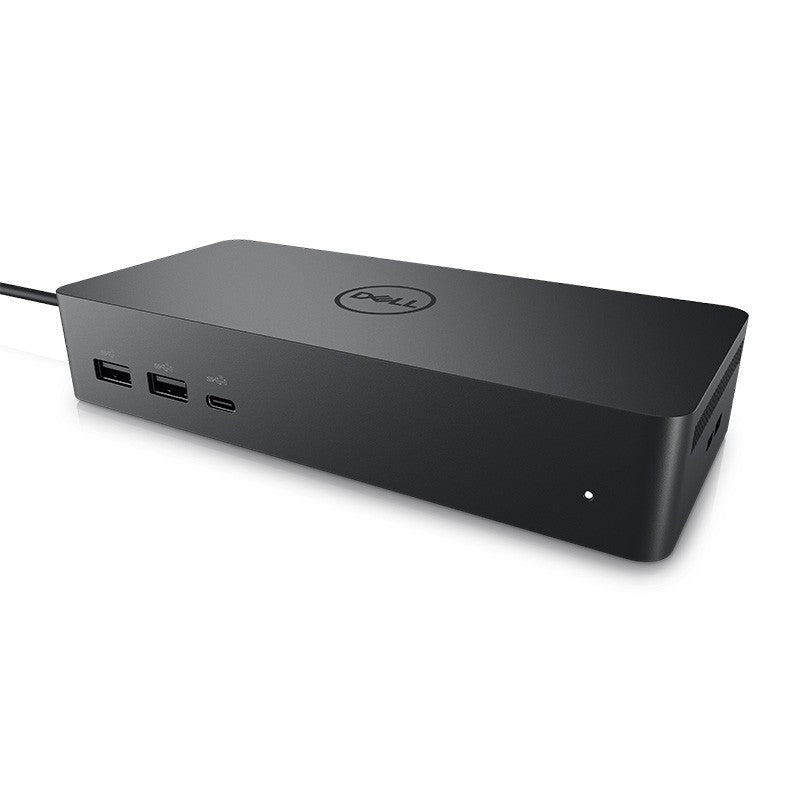

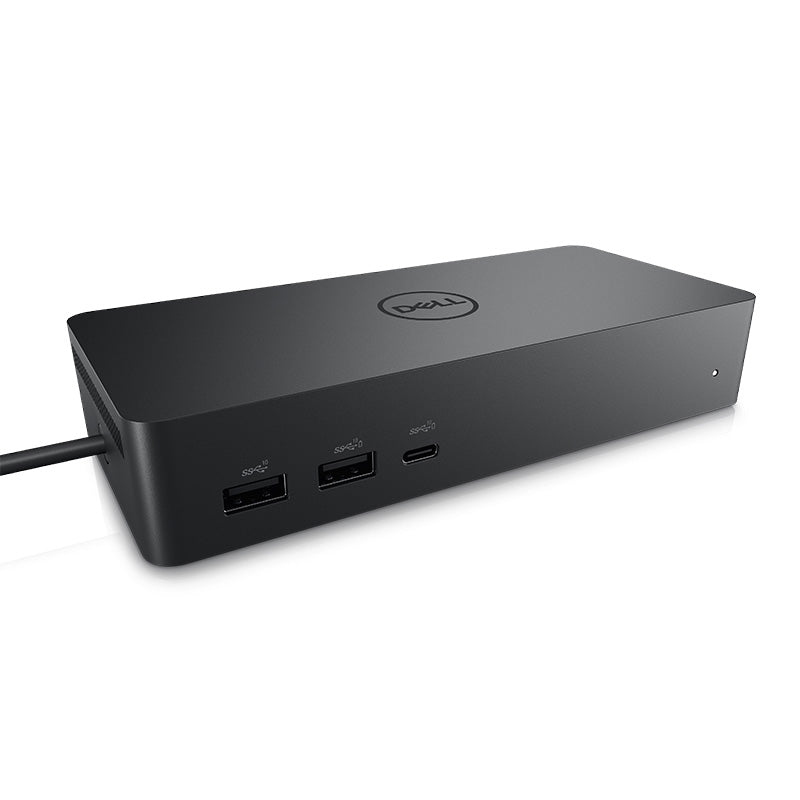

Dell UD22 Universal Docking Station

Display support

If PC has DisplayLink drivers installed:

For a HBR2* PC

2 x 4K @ 60Hz + 2 x FHD @60Hz

2 x 4K @ 60Hz + 1 x 4K @30Hz

For a HBR3 PC

2 x 4K @ 60Hz + 2 x QHD @60Hz

2 x 4K @ 60Hz + 1 x 4K @30Hz

For HBR3 PC (supporting Display Stream Compression)

4 x 4K @ 60Hz

If PC does not have DisplayLink drivers installed:

For a HBR2 PC

2 x FHD @60Hz

1 x 4K @ 30Hz

For a HBR3 PC

2 x QHD @60Hz

2 x 4K @ 30Hz

For HBR3 PC (supporting Display Stream Compression)

2 x 4K @ 60Hz

Max resolution

5K @ 60Hz with HBR3 systems supporting

Display Stream Compression

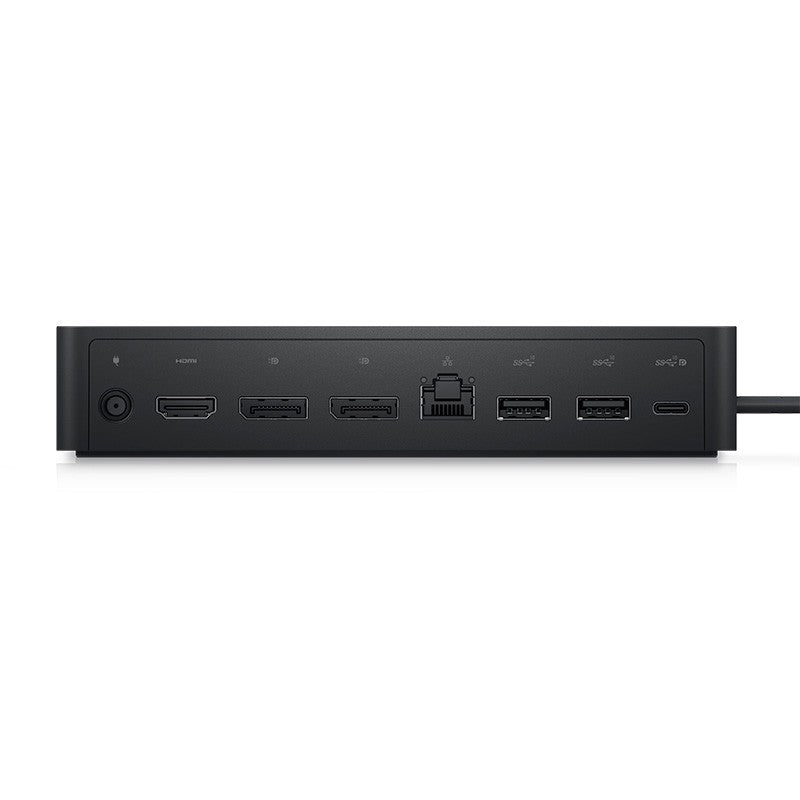

Video interfaces

1 x HDMI 2.0

2 x DP 1.2

1 x USB-C 3.2 Gen2 with DisplayPort 1.4 Alt Mode

USB ports

USB-A: 4 x USB 3.2 Gen 2 (1 with PowerShare)

USB-C: 1 x USB 3.2 Gen 2 with PowerShare; 1 x USB 3.2

Gen 2 with DisplayPort 1.4 Alt Mode

Networking

Gigabit Ethernet

Security slot type (Cable lock sold separately)

1 x Kensington security-cable slot

1 x Kensington nano lock slot

LED indicators

Power Adapter LED

Dock Status Indicator

RJ45 LEDs

Power

Power Adapter 130 Watt AC with up to 96 Watt power delivery to any USB-C Notebook

Dimensions

166mm x 76mm x 32mm

6.53in x 2.99in x 1.26in

Dock weight (Without power adapter)

416 g (0.92 lb)

Operating systems

Windows 10

Windows 11

Ubuntu 20.04 and later

Mac OS 12.2.1 and later

ChromeOS R100 and later

Systems management

Wireless vPro supported by the notebook, tablet, or workstation

Kernel Direct Memory Access (DMA) protection

Docking interface

Type-C Connector

Cable length

0.8 m

Mac address

Pass-Through MAC Address

Management features

Wake-On-LAN3

MAC address pass-through

What’s in the box

Docking station

Power adapter and power cord

Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
