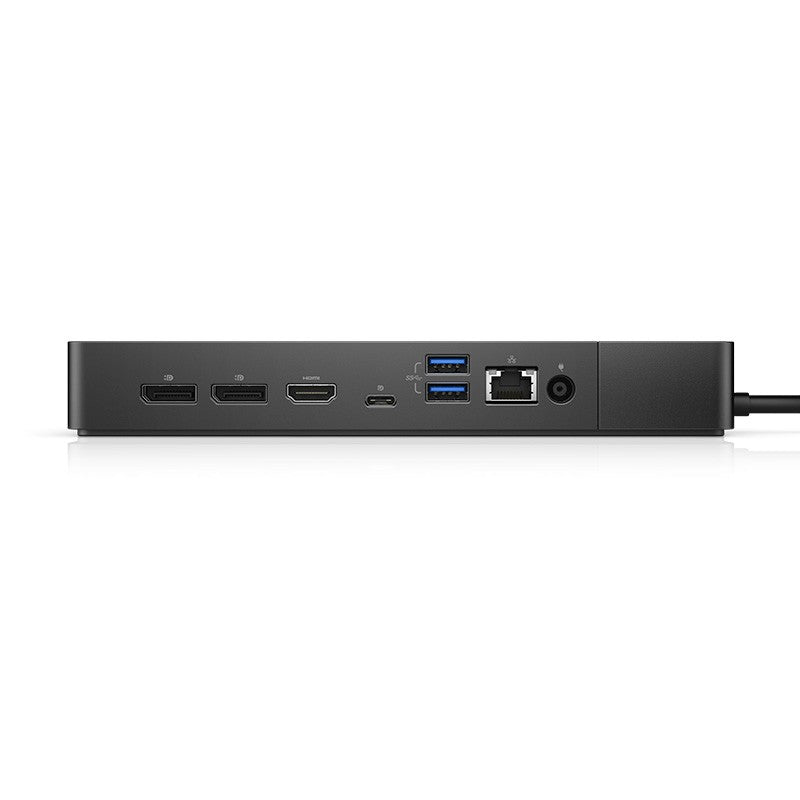

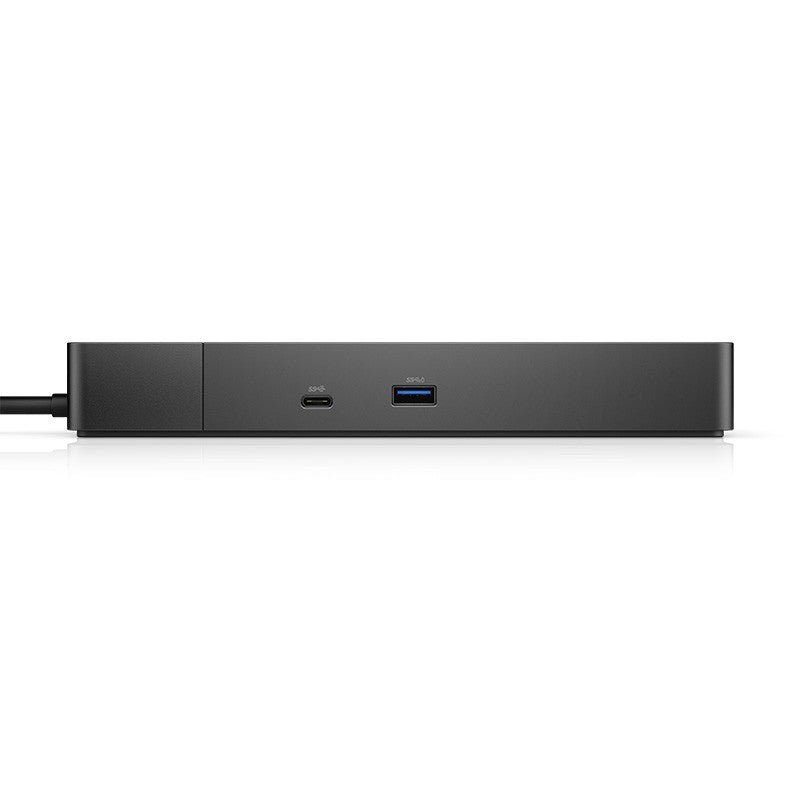

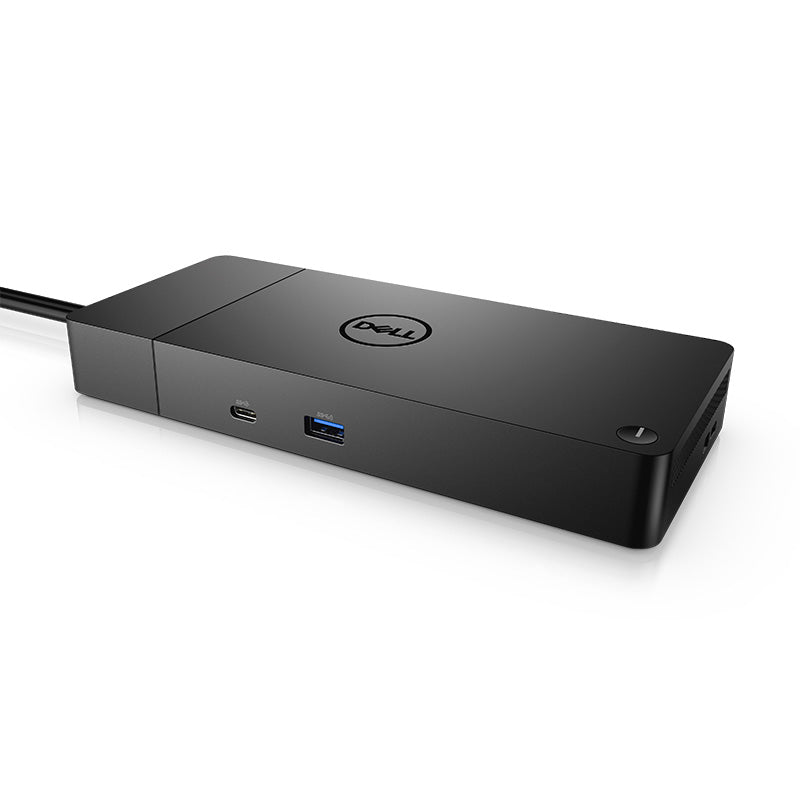

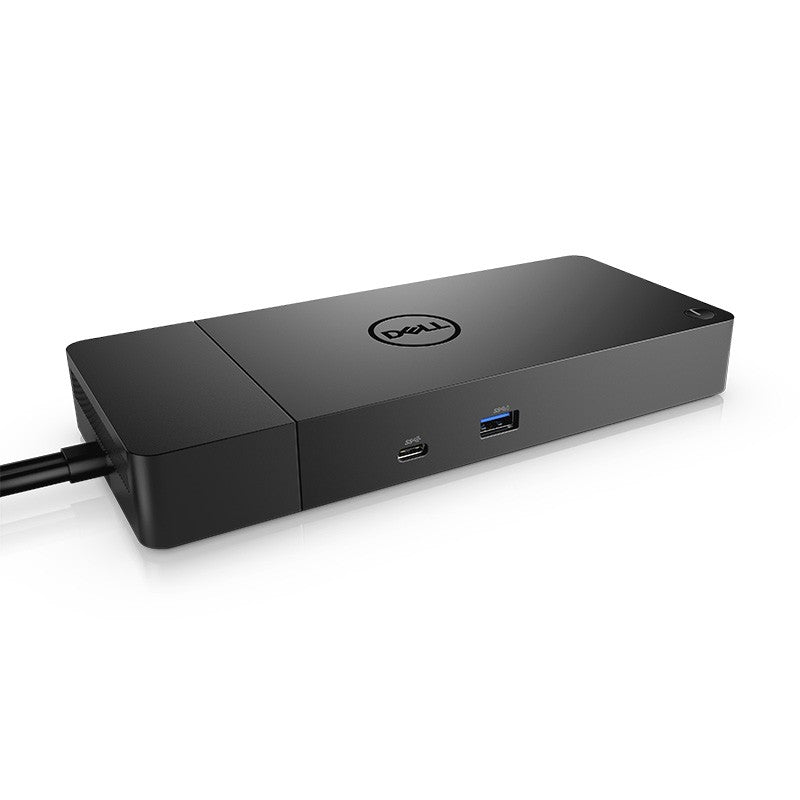

Dell WD19DCS Performance Dual USB-C Docking Station with 210W Power Delivery

Display Support with Dual USB-C input

For a HBR2* PC:

3 x FHD @ 60Hz

3 x QHD @ 60Hz

1 x 4K @ 60Hz

For a HBR3 PC:

3 x FHD @ 60Hz

3 x QHD @ 60Hz

2 x 4K @ 60Hz

1 x 8K @ 30 Hz

Max Resolution

5120 x 2880 @ 60Hz

Video interfaces

2 x Full size DP1.4

1 x HDMI

1 x MFDP USB-C

USB Ports

3 x USB-A 3.1 Gen 1

2 x USB-C 3.1 Gen 2

Networking

Gigabit Ethernet

Security Slot Type (cable lock sold separately)

1 x Kensington lock slot

1 x Noble Wedge lock slot

LED Indicators

Power Adapter LED

Power Button LED

RJ45 LEDs

Power

Power Adapter 240 Watt AC with up to 210 Watts power delivery

(When only one cable is connected to the system, the second USB-C cable behaves as USB-C with PowerShare providing power for a peripheral or mobile phone.)

Up to 90 Watts power delivery to non-Dell systems

Dimensions

205mm x 90mm x 29mm

8.07in x 3.54in x 1.14in

Dock Weight (without power adapter)

585g

1.29lbs

Operating Systems

Microsoft Windows 10

Ubuntu 18.04

Red Hat Enterprise Linux

Systems Management

Wireless vPro supported by Notebook or Workstation

Docking Interface

Separable Dual DisplayPort over USB-C

Cable Length

0.8m

MAC Address

Pass Through MAC Address

Management Features

PXE Boot

Wake-On-LAN

MAC address pass-through

Port Disablement

Wake-On-Dock button

Wake-On-Dock

Dell Command Update (DCU)

Error messages and dock event notifications

What's in the Box

1 x WD19DCS Dock with dual USB-C Cable attached

1 x 240W Power Adapter
