Description
SPECIFICATIONS:
GENERAL |
|
Product Type |
Docking station |
Width |
20.5 cm |
Depth |
9 cm |
Height |
2.9 cm |
Weight |
650 g |
VIDEO |
|
Max Resolution Details |
5K - 60 Hz (Single Display) 4K - 60 Hz (Quad Display) |
NETWORKING |
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
EXPANSION / CONNECTIVITY |
|
Interfaces |

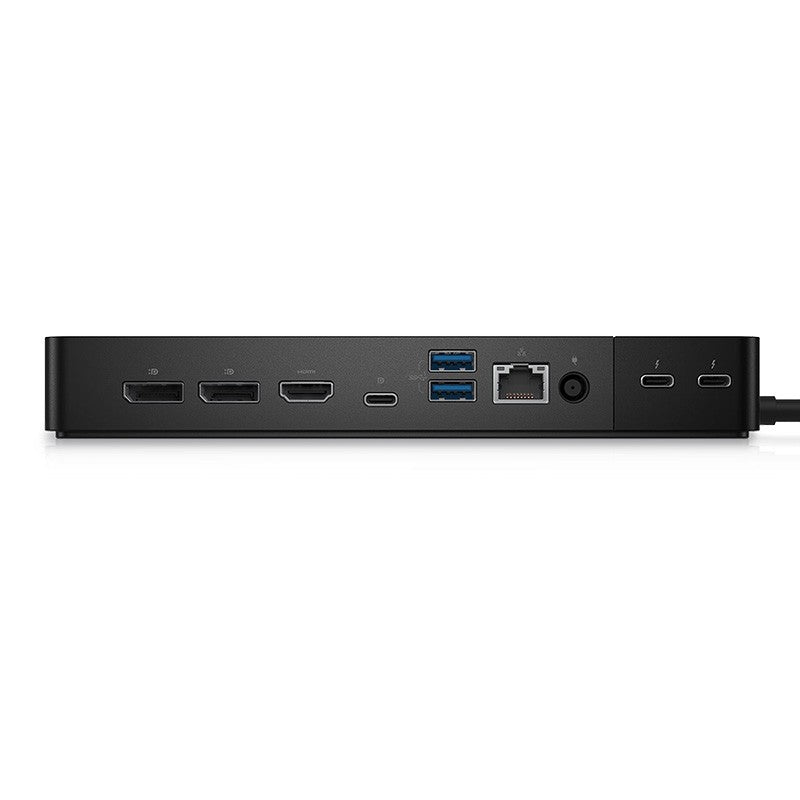

2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) 1 x display / video - HDMI - 19 pin HDMI 2.0 1 x USB-C 3.2 Gen 2/DisplayPort 1.4 2 x USB 3.2 Gen 1 - 9 pin USB Type A 1 x USB 3.2 Gen 1 with PowerShare - 9 pin USB Type A 1 x USB-C 3.2 Gen 2 1 x network - Ethernet 1000 - RJ-45 2 x Thunderbolt 4 |
MISCELLANEOUS |
|
Cables Included |
- 80 cm |
Features |
Security lock slot (cable lock sold separately), wake on LAN, LED indicator, Preboot Execution Environment (PXE) support, MAC address pass-through, 130W power delivery to Dell systems, 90W power delivery to non-Dell systems, wireless vPro, Kernel Direct Memory Access (DMA) protection |
Security Slot Type |
Noble Wedge security slot / Kensington security slot |
Compliant Standards |
DisplayPort 1.4 |
POWER |
|
Power Device |
Power adapter |
Power Provided |
130W (Dell systems) 90W (non-Dell systems) |
SYSTEM REQUIREMENTS |
|
OS Required |
Windows 10, Windows 11, Ubuntu 20.04 or later |
