Description
SPECIFICATIONS:

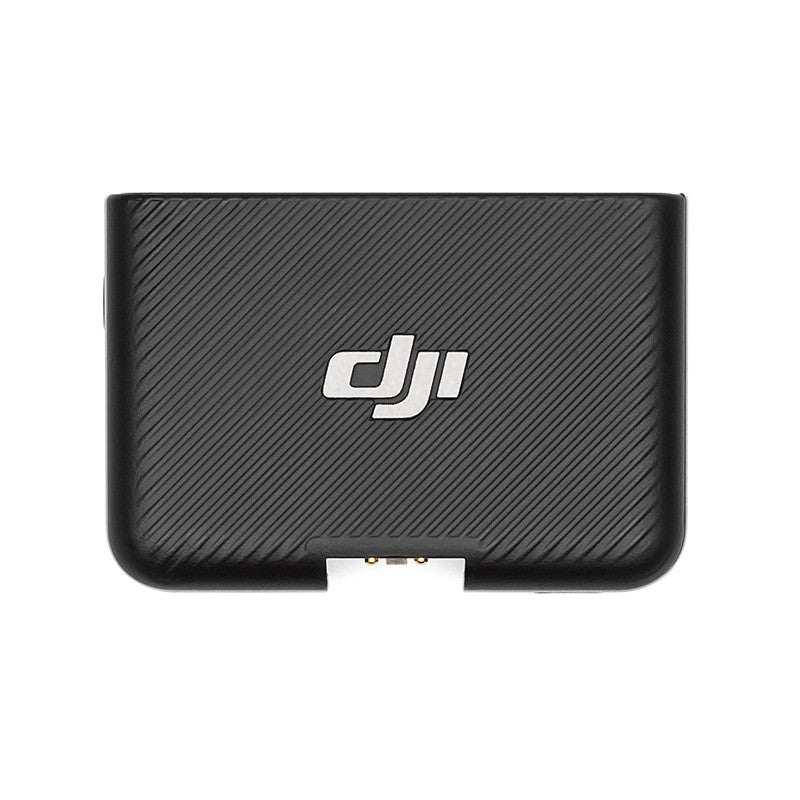

DJI MIC TRANSMITTERS |
|
Model |
AST01 |
Dimensions |
47.32×30.43×20.01 mm |
Weight |
30 g |
Wireless Mode |
GFSK 1 Mbps and 2 Mbps |
Equivalent Isotropic Radiated Power (EIRP) |
<20 dBm |
Operating Frequency |
2400-2483.5 MHz |
Battery Type |
LiPo 1S |
Battery Capacity |
320 mAh |
Battery Energy |
1.23 Wh |
Battery Voltage |
3.85 V |
Charging Temperature |
5 to 45° C (41° to 113° F) |
Operating Temperature |
-10° to 45° C (14° to 113° F) |
Charging Time |
70 mins |
Operating Time |
5.5 hours |
DJI MIC RECEIVER |
|
Model |
ASR01 |
Dimensions |
47.44×32.21×17.35 mm |
Weight |
24.9 g |
Wireless Mode |
GFSK 1 Mbps and 2 Mbps |
Equivalent Isotropic Radiated Power (EIRP) |
<20 dBm |
Operating Frequency |
2400-2483.5 MHz |
Battery Type |
LiPo 1S |
Battery Capacity |
320 mAh |
Battery Energy |
1.23 Wh |
Battery Voltage |
3.85 V |
Charging Temperature |
5 to 45° C (41° to 113° F) |
Operating Temperature |
-10° to 45° C (14° to 113° F) |
Charging Time |
70 mins |
Operating Time |
5 hours |

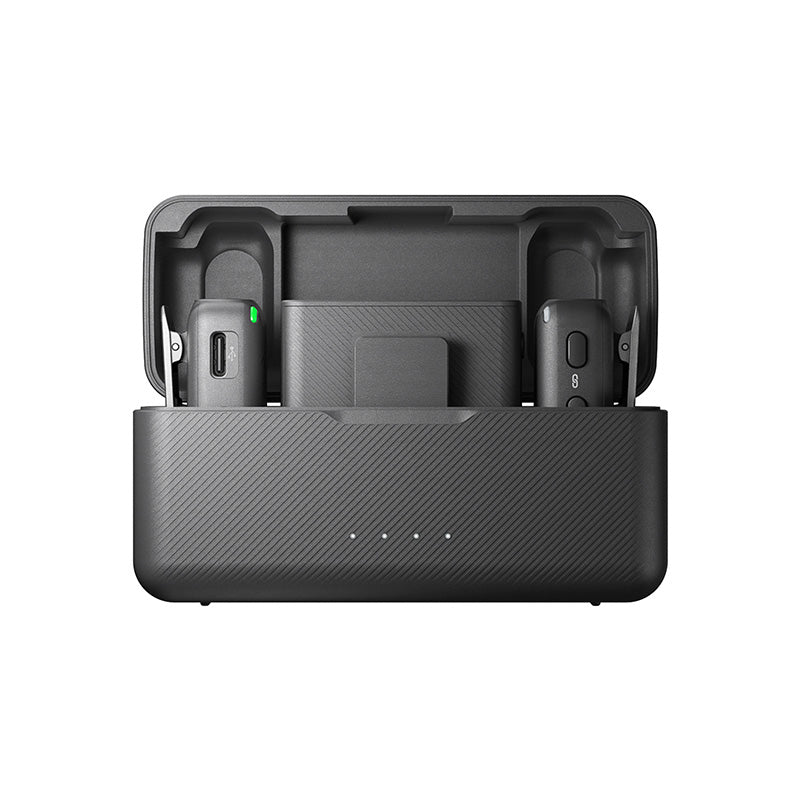

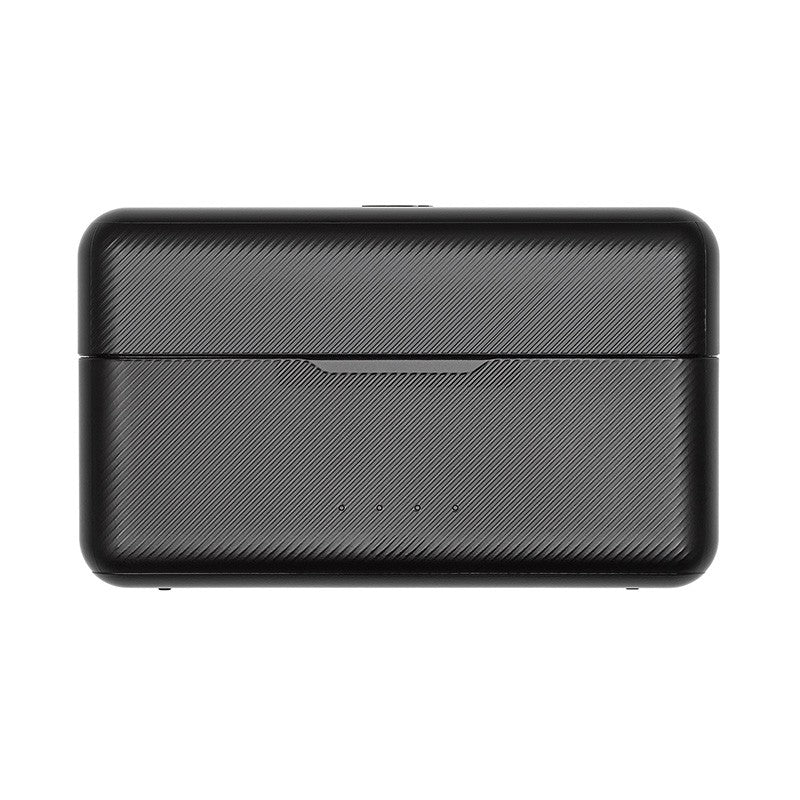

CHARGING CASE |
|
Model |
ASB01 |
Dimensions |
103.06×61.87×41.50 mm |
Weight |
162.2 g |
Battery Type |
LiPo 1S |
Battery Capacity |
2600 mAh |
Battery Energy |
10 Wh |
Battery Voltage |
3.87 V |
Charging Temperature |
5 to 45° C (41° to 113° F) |
Operating Temperature |
5 to 45° C (41° to 113° F) |
Charging Time |
2 hours and 40 mins |
Operating Time |
Fully charge three devices simultaneously 1.8 times |
GENERAL |
|
Microphone Directions |
All Directions |
Frequency Response |
Low Cut Off: 50 Hz - 20 kHz Low Cut On: 150 Hz - 20 kHz |
Max Sound Pressure Level (SPL) |
114 dB SPL |
Max Input Level (3.5 mm) |
-17 dBV (THD < 0.1%) |
Equivalent Noise |
23 dBA |
Monitor Interface Output Power |
Max Output 22mW@1kHz, 32Ω |
Max Transmission Distance |
250 m (FCC) 160 m (CE) * Measured in an unobstructed outdoor environment free of interference. |
OTHERS |
|
Notes |
1. Measured with FCC compliance in an unobstructed environment without interference (160 m under CE). 2. Not supported by DJI Mic (1 TX + 1 R X), which does not include the charging case. 3. Tested with a 48,000Hz sampling rate and 24-bit mono WAV audio format. 4. Tested with 2 transmitters connected to the receiver, without backup recording, and the receiver connected to a camera. |
