Edimax
Price:
$26.60

Description

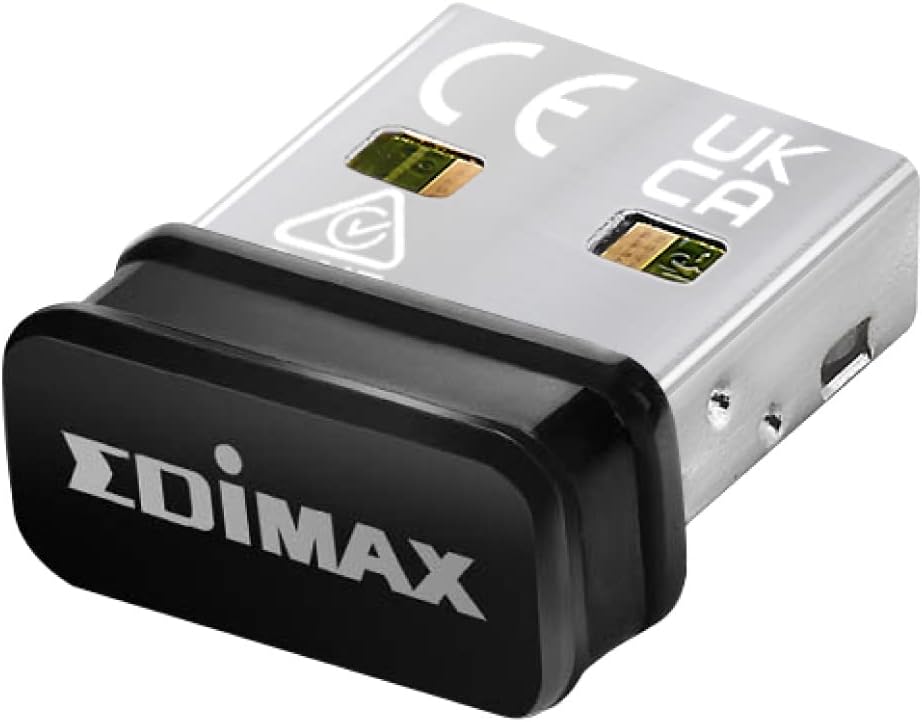

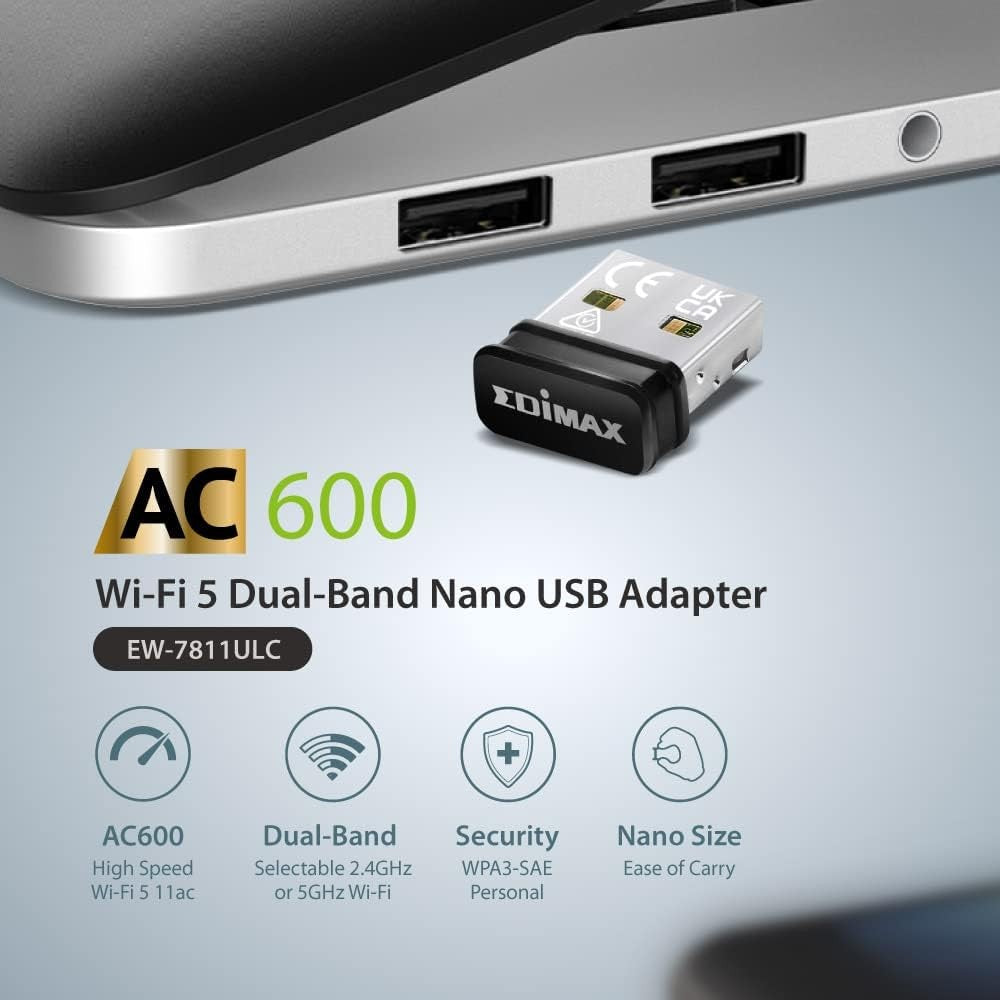

AC600 Wi-Fi 5 Nano USB Adapter

EW-7811ULC

  • AC600 Wi-Fi 5: Maximum data transfer rate up to 433Mbps (5GHz) and 200Mbps* (2.4GHz)
  • Dual-Band Selectivity: Selectable 2.4GHz and 5GHz band to switch anytime for smooth and stable Wi-Fi connection
  • Secure Wi-Fi: High level Wi-Fi security supported with WPA3-SAE (Personal), WPA2, WPA, WEP, 802.1x
  • Easy Installation: Simply and quickly 3-step installation via a USB port
  • Tiny and Stealthy Design: Extremely small AC600 Wi-Fi USB Adapter for stealth and ease of carry
  • Wide Compatibility: Works with any Wi-Fi router/AP/extender

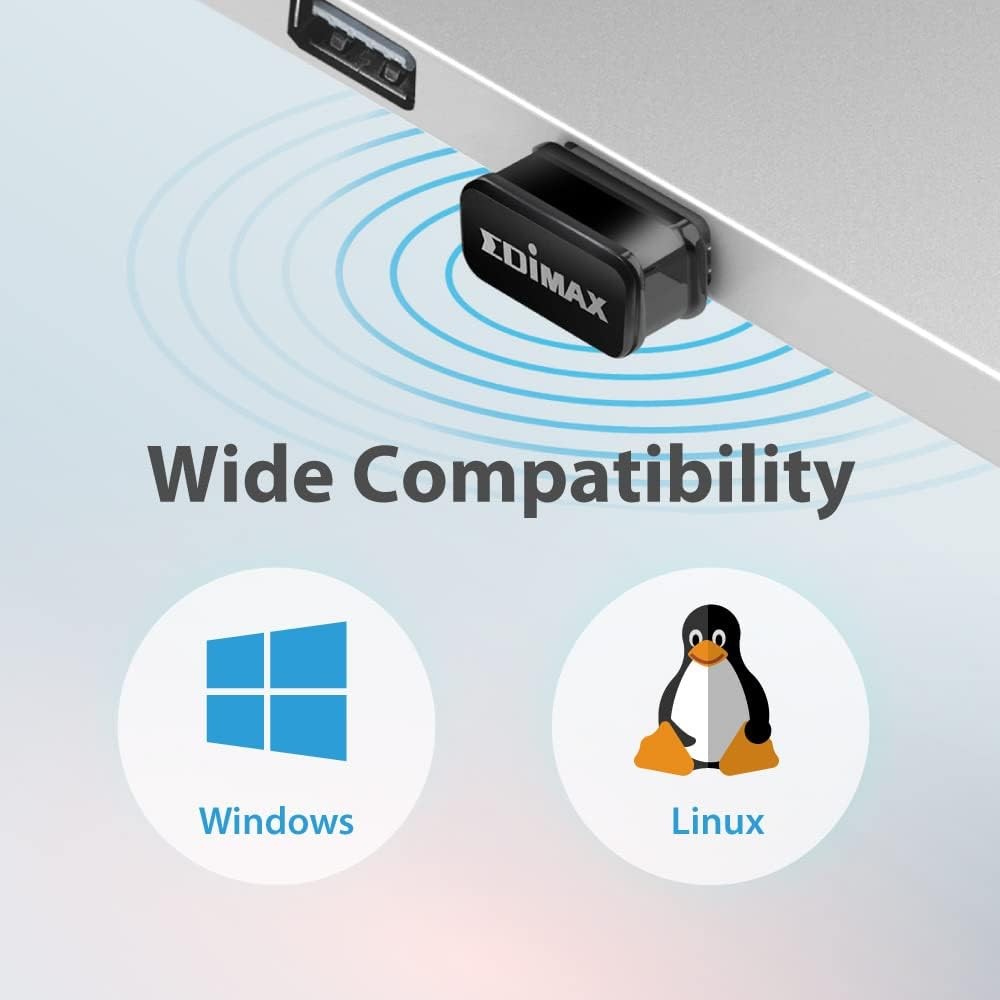

  • Supported OS: Windows and Linux
  • Application: Excellent for video streaming, Internet surfing and file transfers

SPECIFICATIONS

HARDWARE
Interface 1 x USB 2.0 Type A
LED Indicator 1 x Link/Activity LED
Antenna 1 x Internal PIFA Antenna (1T1R)

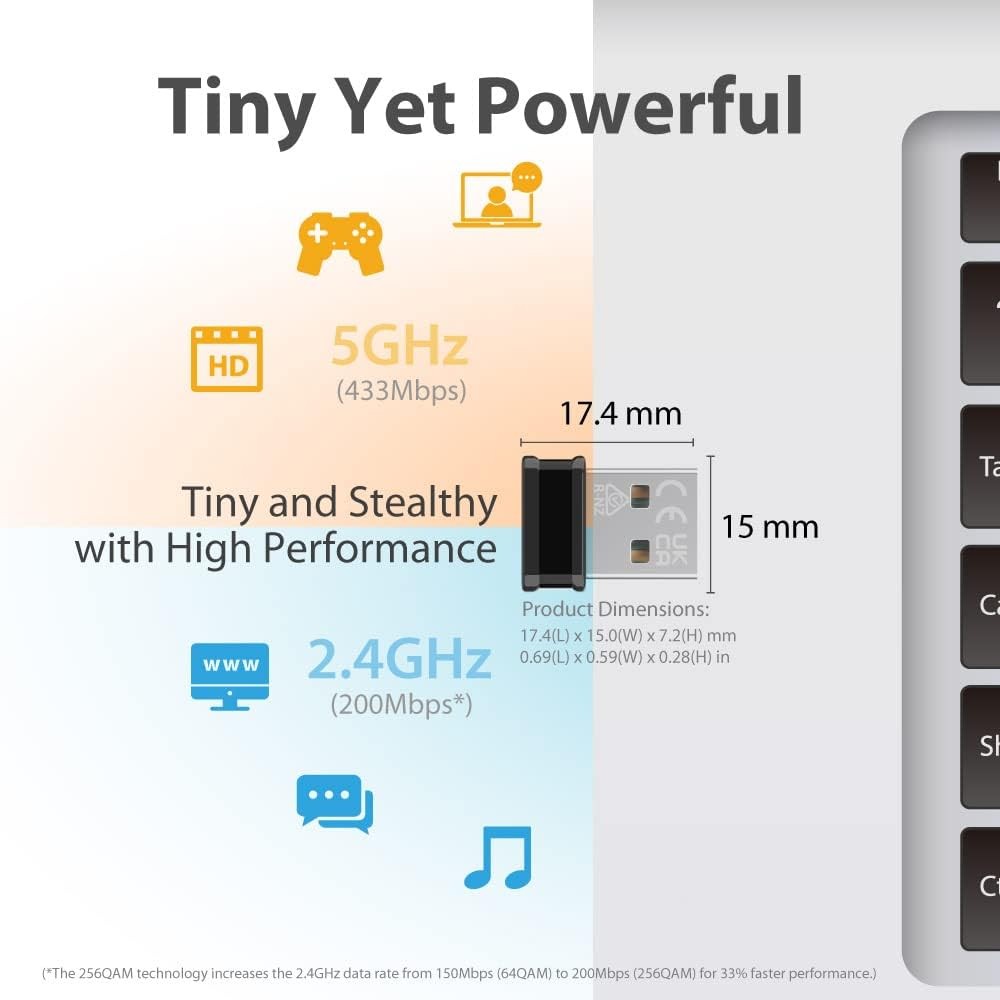

Dimensions 17.4(L) x 15.0(W) x 7.2(H) mm
(0.69(L) x 0.59(W) x 0.28(H) inches)
Weight 2g (0.07 ounces)
WIRELESS
Standard
  • 2.4GHz: IEEE 802.11b/g/n
  • 5GHz: IEEE 802.11a/n/ac
Frequency Band
  • 2.4GHz: 2.4000~2.4835GHz
  • 5GHz: 5.150~5.825GHz
*Subject to local regulations.
Maximum Data Rate / Speed
  • 11a: Up to 54Mbps
  • 11b: Up to 11Mbps
  • 11g: Up to 54Mbps
  • 11n (2.4GHz): Up to 200Mbps*
  • 11ac (5Gz): Up to 433Mbps
 * The  EW-7811ULC with 256QAM technology increases the 2.4GHz data rate from 150Mbps (64QAM) to 200Mbps (256QAM) for 33% faster performance.
Transmit Power 2.4GHz:
  • 11b(11Mbps): 17±1.5dBm
  • 11g(54Mbps): 14.5±1.5dBm
  • 11n(20MHz, MCS7): 15±1.5dBm
  • 11n(40MHz, MCS9): 14±1.5dBm
5GHz:
  • 11a(54Mbps): 14±1.5dBm
  • 11n(20MHz, MCS7): 14±1.5dBm
  • 11n(40MHz, MCS7): 14±1.5dBm
  • 11ac(80MHz, MCS9): 13±1.5dBm
Receive Sensitivity 2.4GHz:
  • 11b(11Mbps): -86±2dBm
  • 11g(54Mbps): -71±2dBm
  • 11n(20MHz, MCS7): -69±2dBm
  • 11n(40MHz, MCS9): -60±2dBm

5GHz:
  • 11a(54Mbps): -67±2dBm
  • 11n(20MHz, MCS7): -65±2dBm
  • 11n(40MHz, MCS7): -57±2dBm
  • 11ac(80MHz, MCS9): -52±2dBm
Security
  • WPA3-Personal, WPA2, WPA, WEP, 802.1x
  • Software WPS (Wi-Fi Protected Setup. Driver installation and WPS supported Wi-Fi device are required.)
OTHERS
Supported Operating System
  • Windows 10/11
  • Linux: Kernel 2.6.18~5.11
*Additional version information may be announced on the EDIMAX website.
Environmental Condition Temperature:
  • Operating Temperature: 0~40°C (32~104°F)
  • Storage Temperature: -20~60°C (-4~140°F)
Humidity:
  • Operating Humidity: 10~90% (Non-condensing)
  • Storage Humidity: Max.95% (Non-condensing)
Certification CE, FCC, BSMI, NCC
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
