Edimax
Price:
$32.50

Description

Product Name: Edimax DAC Direct Attach Copper Twinax Cable 1M 10GbE SFP+ , Backward Compatible to SFP
Model Number: EA1-010D
Brand: Edimax
Manufacturer Warranty: 1 Year-
  • High-speed data rates up to 10Gbps
  • Compatible with SFP+ MSA (Multi-Source Agreement)
  • Backward compatible to SFP (1Gbps)
  • Easy plug-and-play with hot-pluggable SFP 20-PIN footprint
  • I/O connector designed for high speed differential signal applications
  • Improved Pluggable Form-Factor (IPF) compliant for enhanced EMI/EMC performance
  • Lower power consumption with 0.5W Max.
  • Work with any devices equipped a SFP+/SFP port such as switch, storage, server, NIC (PCI-E adapter), date center, high-performance computing and etc.

EDIMAX
EDIMAX

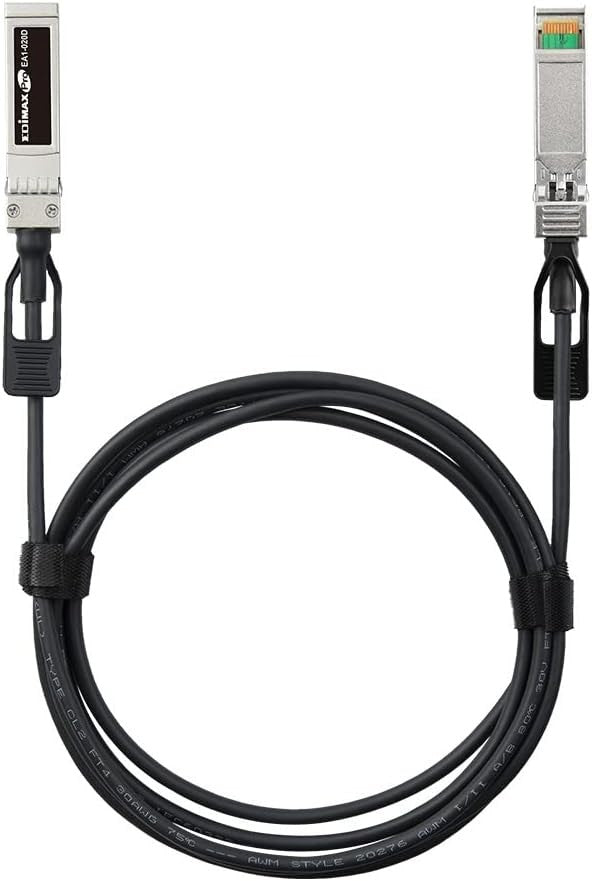

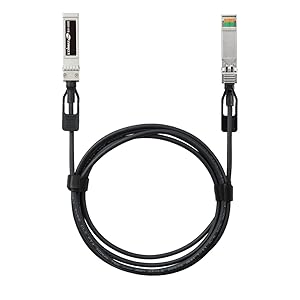

10GbE SFP+ DAC Direct Attach Cable, 1M

EDIMAX EA1-010D

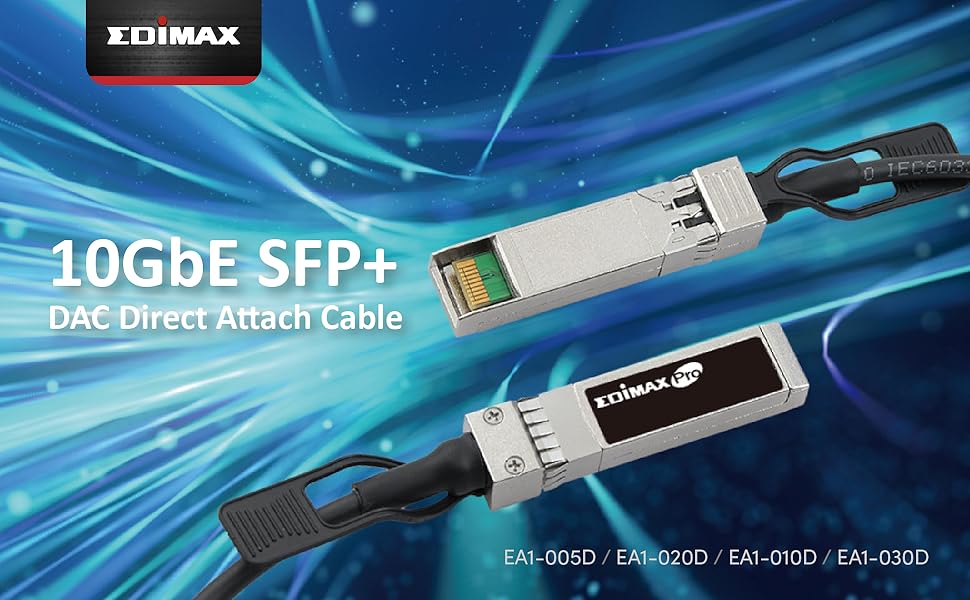

EDIMAX EA1 Series SFP+ Direct Attached Cable (DAC) assembly with 2 SFP+ connectors at both ends offers high-performance, cost-effective solutions for 10G Ethernet and 10G Fiber channel applications to achieve high port density. It is suitable for very short distances to connect within racks and adjacent racks to fill the expanding need for cost effective interconnects.

Fully complies with MSA standards, the EA1 Series is backward compatible to SFP (1Gbps). It allows transmission at their maximum speed of up to 10Gbps and provides cost-effective, durable and flexible solution than a fiber cable. Furthermore, allowing shorterdistance, high-density connections made between networking equipments with SFP+ ports.

Features

  • High-speed data rates up to 10Gbps

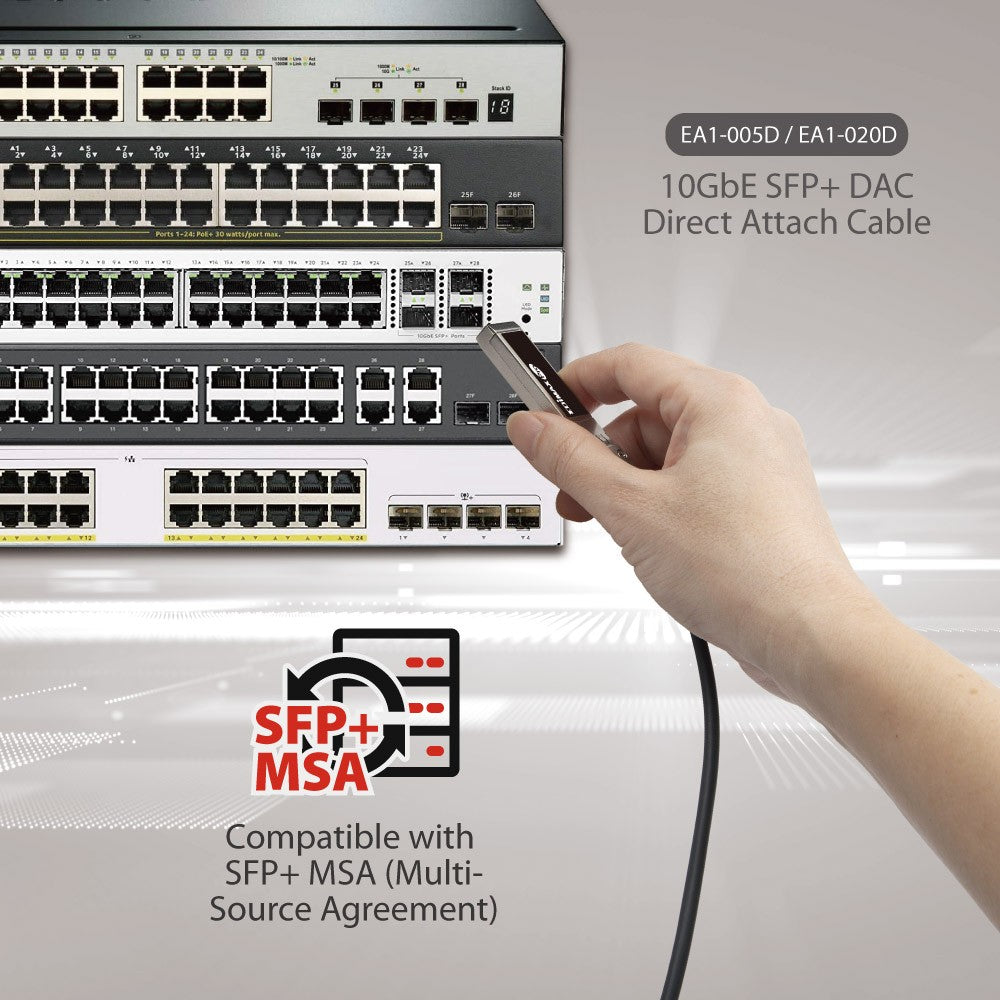

  • Compatible with SFP+ MSA (Multi-Source Agreement)
  • Backward compatible to SFP (1Gbps)
  • Easy plug-and-play with hot-pluggable SFP 20-PIN footprint
  • I/O connector designed for high speed differential signal applications
  • Improved Pluggable Form-Factor (IPF) compliant for enhanced EMI/EMC performance
  • Lower power consumption with 0.5W Max.
  • Work with any devices equipped SFP+/SFP ports such as switch, data center, PCI-E, etc.



EDIMAX

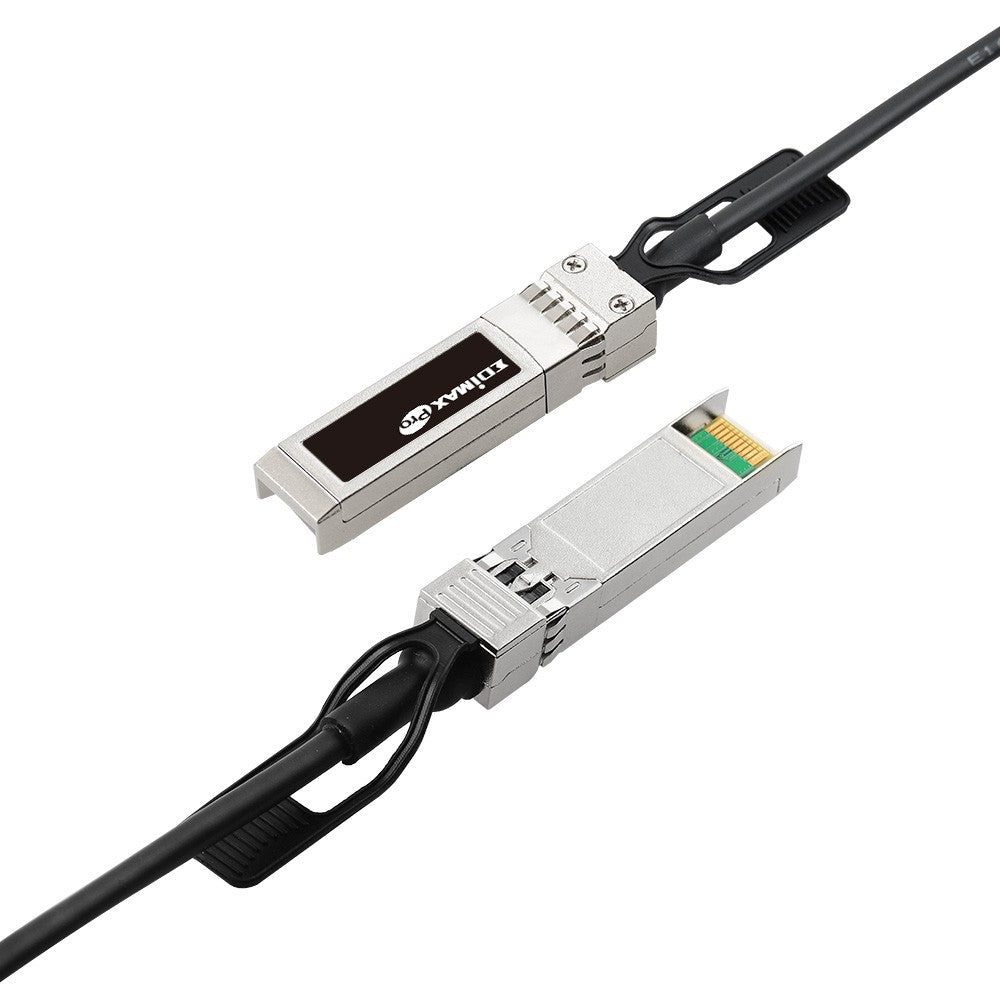

Easy Plug-and-Play | Hot-Pluggable SFP+ Supported

Equipped with plug-and-play Hot-Pluggable or said Hot-Swappable SFP+ connectors on both ends. No configuration required, in addition, there is no need to shut down or put the data on hold when support inserting or pulling out the transceivers to avoid network down-time.

HARDWARE
Cable Type                                         Passive Copper Twinax Cable, Oxygen-Free Copper

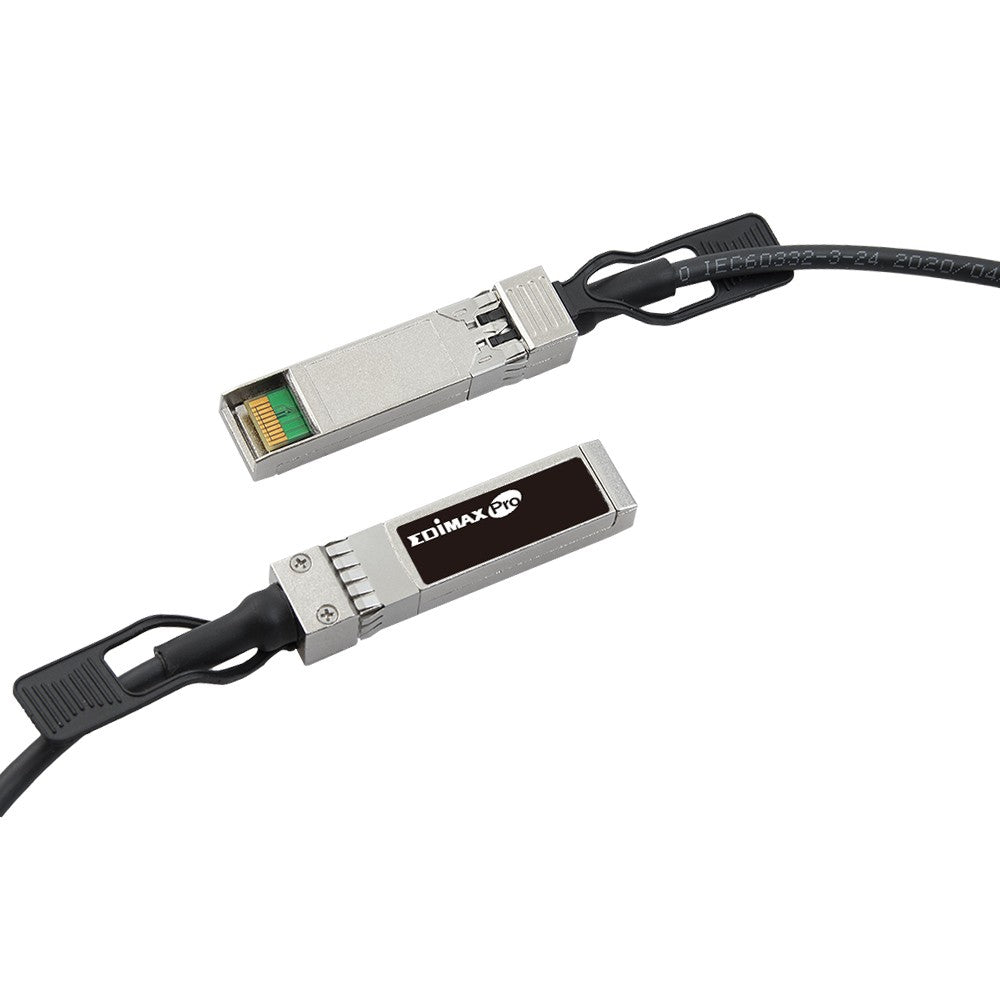

Connector                                         SFP+ Connectors on Both Ends

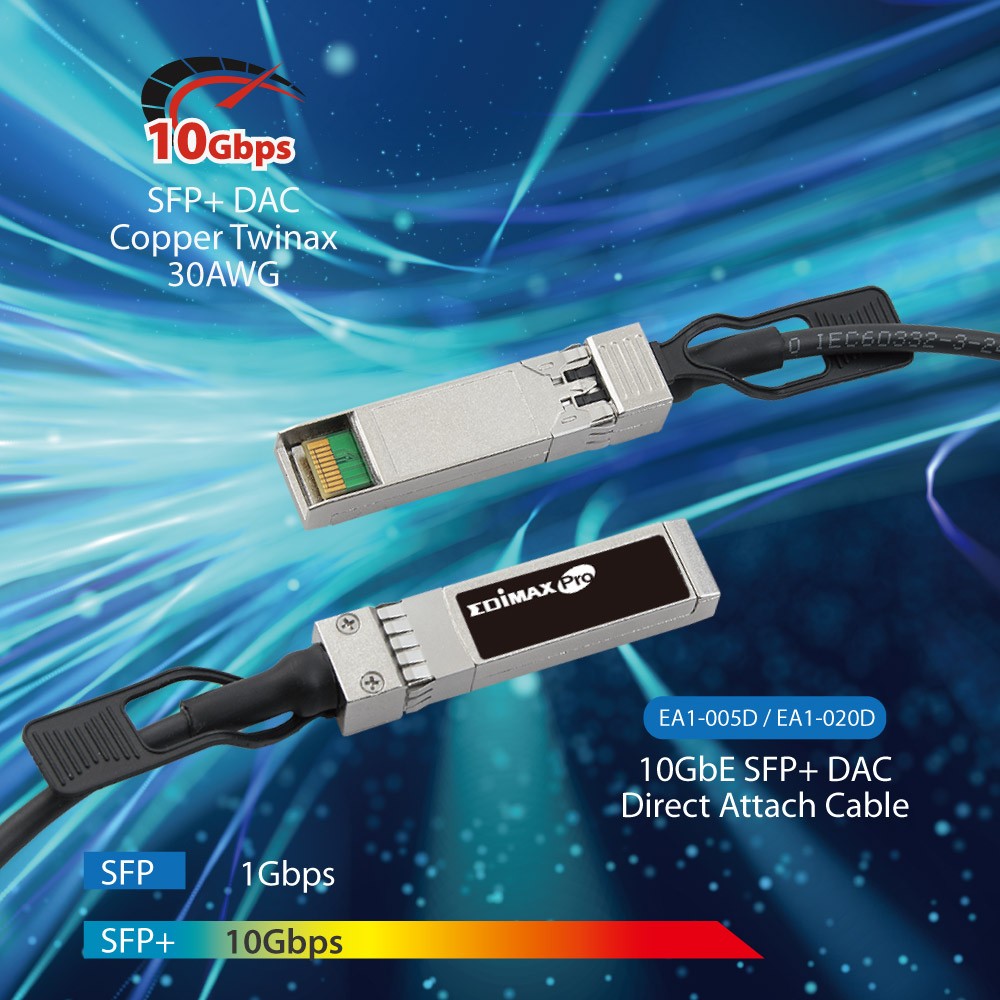

Conductor Gauge                            30AWG
Jack                                                   PVC
Dimension                                         Connector: 13.6(W) x 57(D) x 8.5(H) mm
Cable Length:
•EA1-005D: 0.5 Meter/1.64 Feet
•EA1-010D: 1 Meter/ 3.28 Feet

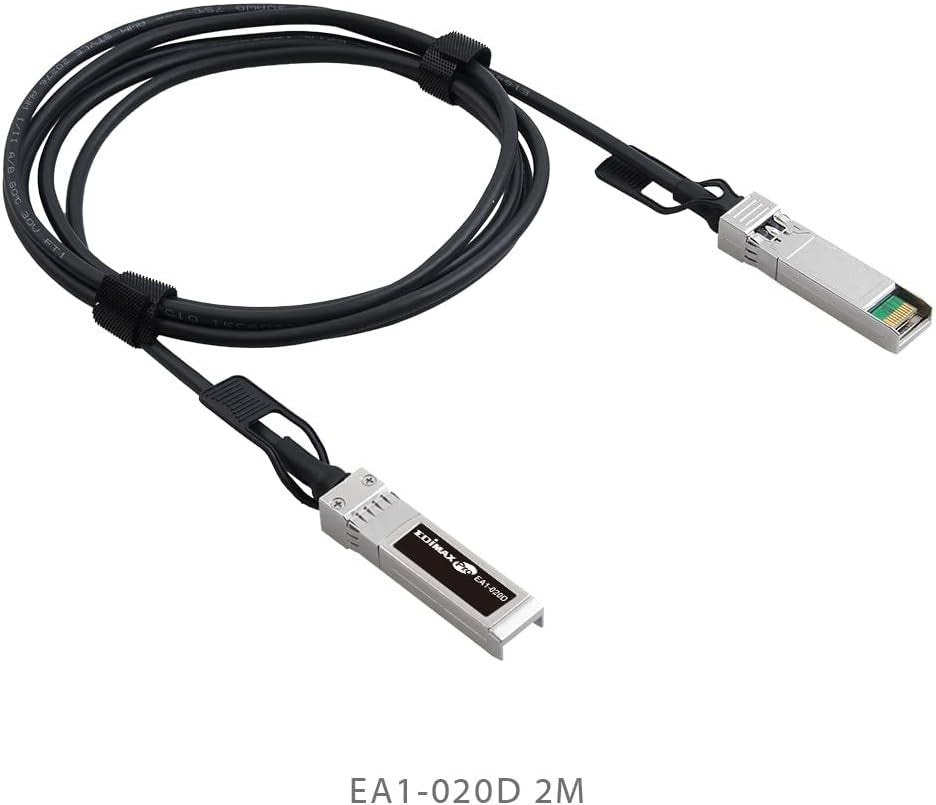

•EA1-020D: 2 Meters/6.54 Feet
•EA1-030D: 3 Meters/9.84 Feet
PERFORMANCE
Data Transmission Rate                    Up to 10Gbps
Bit Error Rate(BER)                            > 10-12
OTHERS
Standard                                            SFP+ MSA (Multi-Source Agreement)
SFF 8431, SFP+ High Speed Electrical Interface
SFF-8472, Digital Diagnostic Monitoring Interface for Optical Transceivers
Temperature Range                          Storage: -40~ 85 °C (-40~185°F )
Operation: 0~ 70 °C (32~158°F )
Certification                                      CE, RoHS
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
