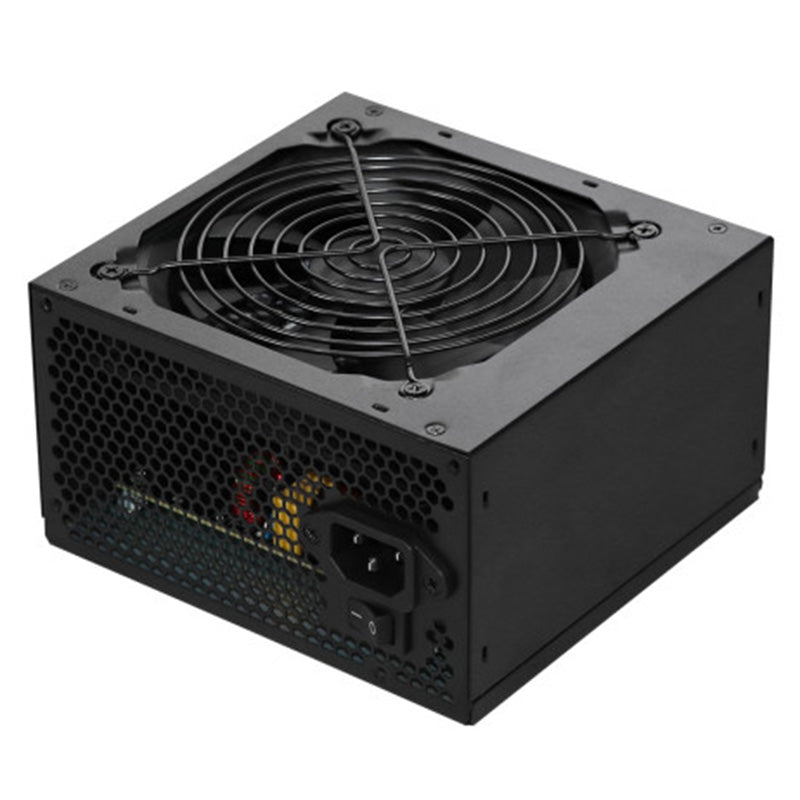

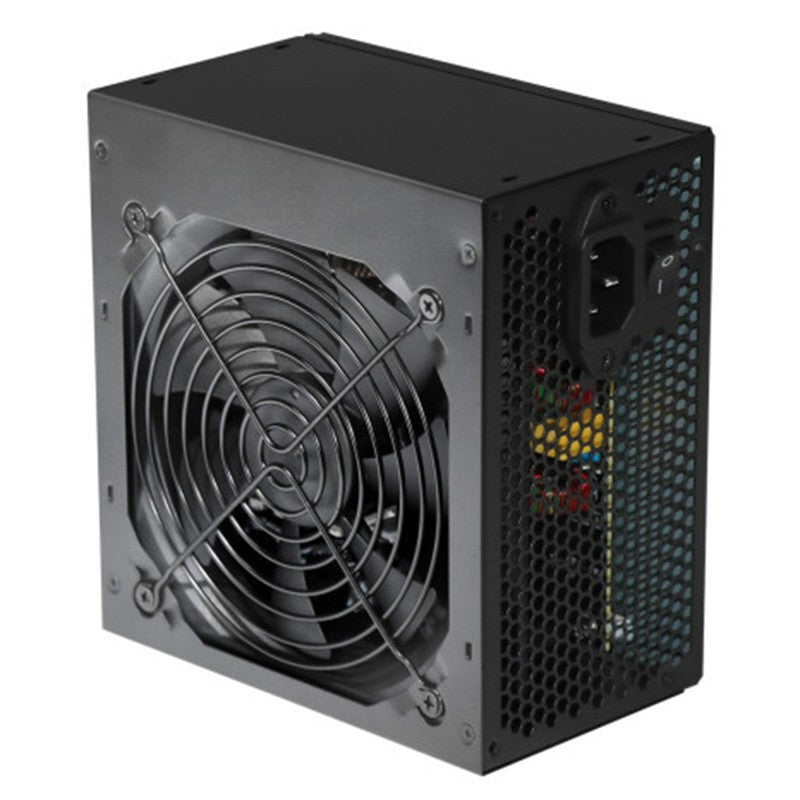

Equites V700 700W 80+ Bronze Power Supply

Combined +3.3V & +5V

Not exceed 100W

Max. Current for +12V

50A

Input Voltage

100 ~ 240V

Input Frequency

50Hz ~ 60Hz

PFC

Active PFC

Efficiency

80PLUS

20%   ~  82%

50%   ~  85%

100% ~  82%

MTBF

250,000 hours

Operating temperature

0°C ~ 40°C

Output Protection

Over current protection

Over voltage protection

Short circuit protection

Certification

RCM, 80 PLUS Bronze

Dimension

150 mm (W) x 85 mm (H) x 140 mm (D)

Connector

Connector:

Mainboard (20+4Pin)

CPU (4+4Pin)

PCIE (6+2Pin)

SATA+IDE (SATA & IDE)

SATA+IDE (SATA & IDE)

Exposed length (Connector):

500mm (20+4)

600mm (4+4)

500mm (6+2) / 150 (6+2)

450mm (SATA) / 150 (SATA) / 150 (IDE)

450mm (SATA) / 150 (SATA) / 150 (IDE) / 150 (IDE)
