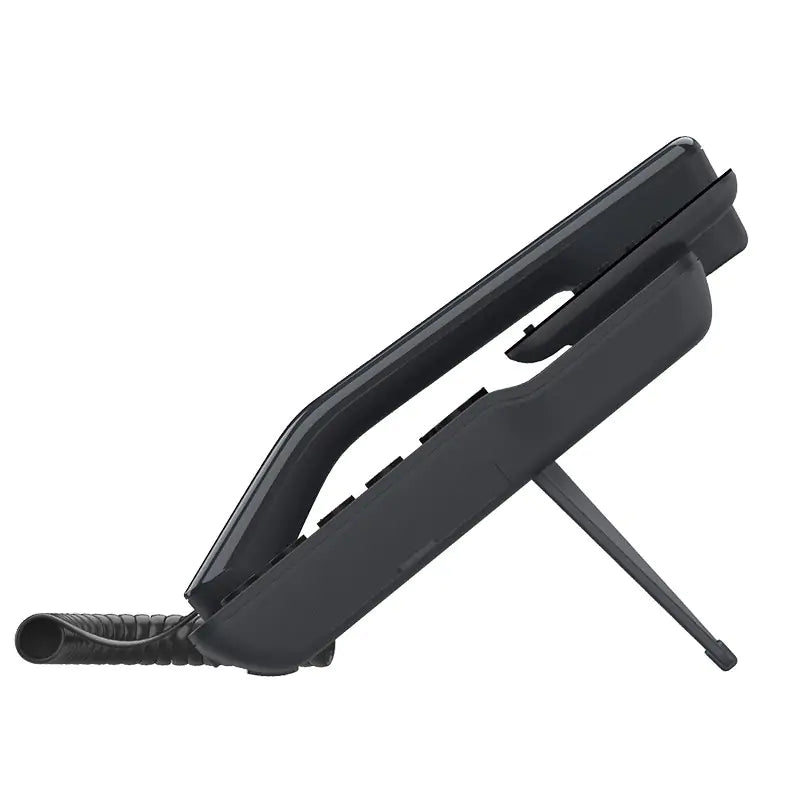

Fanvil V64 Prime Business Phone

Phone features

Local Phonebook (1000 entries)

Remote Phonebook (XML/LDAP, 1000 entries)

Call logs (In/out/missed, 1000 entries)

Block/Allow List Call Filter

Screen saver

Voice Message Waiting Indication (VMWI)

Programmable DSS/Soft keys

Network Time Synchronization

Built-in Bluetooth 4.2: Support Bluetooth headset/ Pairing mobile

devices

Built-in Wi-Fi

•2.4GHz, 802.11 b/g/n

•5GHz, 802.11 a/n/ac

Support Plantronics wireless headset (Through Plantronics

APD-80 EHS Cable)

Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

Support Recording(through server)

Action URL / Active URI

uaCSTA

SIP Hotspot

Multicast

Action Plan

Group listening

Call features

Call out / Answer / Reject

Mute / Unmute (Microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

BLF

Call Parking/Pick-up (Depending on server)

Redial

Do-Not-Disturb

Auto-Answering

Voice Message (With server)

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz

Frequency Response)

HAC handset

Wideband ADC/DAC 16KHz Sampling

Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC

Wideband Codec: G.722, Opus

Full-duplex Acoustic Echo Canceller (AEC)

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)

/ Background Noise Estimation (BNE) / Noise Reduction (NR) /

Automatic Gain Control (AGC)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer

DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

VQM voice quality monitoring

Deployment & Management

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP

PNP/TR-069

Web Management Portal

Web-based Packet Dump

Configuration Export / Import

Phonebook Import/Export

Firmware Upgrade

Syslog

Network

Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC

bypass

IP Mode:IPv4/IPv6/IPv4&IPv6

IP Configuration: Static IP / DHCP / PPPoE

Network Access Control: 802.1x

VPN: OpenVPN/L2TP

VLAN

LLDP

CDP

QoS

RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

CDP

LLDP

PPPoE

802.1x

OpenVPN

SNTP

FTP/TFT

HTTP/HTTPS

TR-069

AES128 & AES256

Physical specifications

LCD:3.5 inch (480x320) color screen

Keypad: 39 keys, including

·           8 DSS keys with LED indicator light

·           6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial)

·           4 Soft-keys

·           4 Navigation keys

·           1 OK key

·           1 Return key

·           12 Standard Phone Digits keys

·           2 Volume Control keys, Up/Down

·           1 Hands-free key

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5.E Ethernet Cable x1

Desk Stand x1

Status Indicator Light x1 (Red)

RJ9 Port x2: Handset x1, Headset x1

RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

USB2.0 Port x1: Standard A, Connect with Flash Driver&USB

headset

Security lock port x1

Power: DC5V/2A or PoE

Working Temperature: 0~45℃

Working Humidity: 10~95%

Installation:

·           Desktop Stand

·           Wall-mounted (need an additional wall hanging parts)

Color: Gunmetal

Device Dimensions:204x202x31mm

Gift Box Dimensions: 307x258x71 mm

Outer CTN Dimensions: 5536x380x327 mm (10 PCS)
