Description
SPECIFICATIONS:
Interfaces |

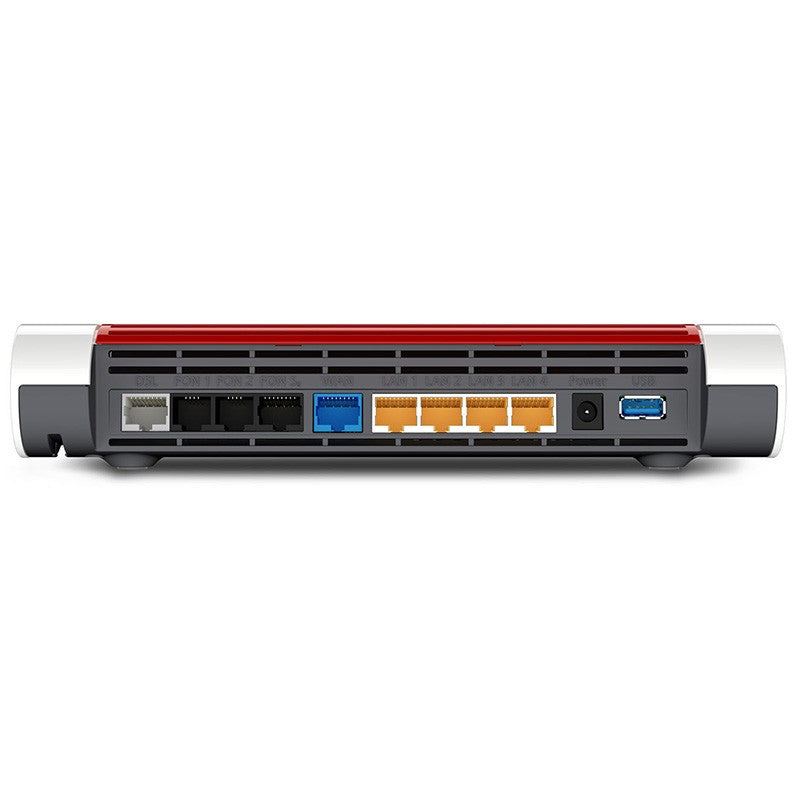

Internet access with VDSL (including supervectoring) or ADSL2+ All-IP telephony 4 x gigabit LAN (10/100/1000 Base-T) 1 x gigabit WAN port for connections on cable/DSL/fibre optic modems or to the network Wireless access point compliant with IEEE 802.11ax, ac, n, g, a 2 x USB 3.0 ports for printers and storage media DECT base station for up to six handsets 2 a/b ports (either TAE/RJ11) for connecting analogue telephones, answering machines and fax |
Internet |
Wireless router with built-in modem for all DSL connections Supports VDSL connections up to 300 Mbit/s (including supervectoring) and ADSL2+. Supports VDSL Long Reach Compatible with Annex-J lines from Deutsche Telekom Use of existing internet connections via LAN Router operation with a cable modem, fibre optic connection or 3G data dongle (LTE/UMTS/HSPA) Stateful Packet Inspection Firewall with port sharing for secure surfing NAT, DHCP server, DynDNS client, UPnP AV Supports IPv6 for internet, home network and telephony Secure remote access over the internet with VPN (IPSec) Parental controls with time budget, youth protection module |
Wi-Fi |
Wi-Fi 6 up to 2400 Mbit/s (gross) at 5 GHz and 1200 Mbit/s (gross) at 2.4 GHz Wi-Fi 5 up to 1733 Mbit/s (gross) at 5 GHz and Wi-Fi 4 up to 800 Mbit/s (gross) at 2.4 GHz Compatible with IEEE 802.11g and a wireless standards 4 x 4 multi-user MIMO Extend your home network with Mesh Wi-Fi via a LAN connection – simply combine two or more wireless access points into one intelligent system. Secure upon delivery with WPA2 encryption, WPA3/2 transition mode is also available AVM Stick & Surf: automatic security for cable-free surfing Wi-Fi can be turned on/off via "WLAN" button and/or connected telephones Wi-Fi Protected Setup (WPS) Wi-Fi guest access – secure surfing for friends and visitors Wi-Fi auto channel: Automated search for Wi-Fi channel free of interference Wi-Fi Eco for optimum performance at minimum power consumption |
Telephony |
Telephone system for All-IP connections with DECT base station for up to six cordless telephones Voice transmission encrypted upon delivery 2 a/b ports (either TAE/RJ11) for connecting analogue telephones, answering machines and fax Supports HD telephony for natural and clear sound DECT Eco: Frequency channel switches off for maximum ergonomics Five integrated answering machines featuring voicemail-to-email Manage telephone contacts locally or online (Google, Apple iCloud etc.) Fax function including email forwarding (fax-to-email) Call diversion, internal calls (intercom), three-way conferencing, call transfer Call blocking, alarm, baby monitor, VIP calls and Do not Disturb Internet telephony SIP-compliant in accordance with RFC 3261 Register IP telephones (LAN/WLAN) SIP-compliant FRITZ!App Fon for landline calls via your smartphone |
Home network convenience |
Media server makes music, pictures and videos available to devices in the home network (DLNA, UPnP AV) MyFRITZ! – access your own FRITZ!Box safely, no matter where you are FRITZ!NAS: memory shared by all data in the home network Platform for networked applications such as IP TV, video on demand and media streaming, thanks to the powerful dual-core processor Parental controls, push service, cloud contacts, online storage Wi-Fi guest access – secure surfing for friends and customers Wake on LAN over the internet Supports DLNA-compliant devices Smart Home features integrated in the user interface LEDs can be dimmed manually or based on room brightness |
FRITZ!OS |
"fritz.box": multi-language user interface, for intuitive operation via Web browser User interface optimized for smartphones and tablets (responsive design) Free updates for new functions and security Advanced view for special configuration options, help function with full-text search Handy FRITZ!Apps for your smartphone: MyFRITZ!App for FRITZ! convenience on the go, the clever Wi-Fi helper FRITZ!App WLAN and FRITZ!App Smart Home for intuitive control of your FRITZ! Smart Home Smart Home features integrated in the user interface Smart Home support for DECT ULE/HAN FUN devices Smart Home devices can be switched manually and automatically both in the home network and from the Internet |
Package contents |
FRITZ!Box 7590 AX Power adapter with 1.5 m long cable 4 meter DSL cable 1.5 meter-long LAN cable Quick guide TAE/RJ11 adapter |
Device properties |
Dimensions (W x H x D): 254 x 63 x 191 mm Average power consumption: 14 - 16 W |
