Description
SPECIFICATIONS:
Interfaces |
VDSL or ADSL line IP-based telephony 4 x gigabit LAN, WAN via LAN 1 port Wireless access point compliant with IEEE 802.11ax, ac, n, g, a 1 x USB port for printers and storage media Integrated DECT base station for up to six cordless telephones 1 a/b port (either TAE or RJ11) for an analogue telephone, answering machine or fax |
Internet |
DSL router with firewall/NAT, DHCP server, DynDNS client, UPnP AV VDSL or ADSL line Supports VDSL connections up to 300 Mbit/s with supervectoring (35b) Supports VDSL lines with 100 Mbit/s with vectoring (full vectoring) Supports VDSL Long Reach Use of existing Internet connections via LAN Router operation with a cable modem, fiber optic connection or 3G data dongle (LTE/UMTS/HSPA) Supports IPv6 Stateful Packet Inspection Firewall with port sharing Secure remote access over the internet with VPN (IPSec) |
Wi-Fi |
Wi-Fi 6 up to 1800 Mbit/s (5 GHz) and 600 Mbit/s (2.4 GHz) Compatible with the IEEE 802.11a/g/n/ac wireless standards Extends your home network with Mesh Wi-Fi – simply combine two or more wireless access points into one intelligent system. 2 x 2 (2.4 GHz), 3 x 3 (5 GHz) with MU-MIMO Dual-band Wi-Fi: Concurrent use of the 5-GHz and 2.4-GHz bands Secure upon delivery with WPA2 encryption; WPA3 is also available AVM Stick & Surf: automatic security for cable-free surfing WLAN button (switch Wi-Fi on/off manually) Wi-Fi Protected Setup (WPS) Wi-Fi guest access – secure surfing for friends and visitors Wi-Fi auto channel: Automated search for Wi-Fi channel free of interference Wi-Fi Eco for optimum performance at minimum power consumption |
Telephony |
Telephone system for IP-based connections Integrated DECT base station for up to six cordless telephones Voice transmission encrypted upon delivery 1 a/b port (either TAE or RJ11) for an analog telephone, answering machine or fax Supports HD telephony for natural sound DECT Eco: Frequency channel switches off for maximum ergonomics Five integrated answering machines including email forwarding (voice-to-mail) Fax function including email forwarding (fax-to-mail) Manage telephone contacts locally or online (Google, Apple iCloud etc.) |
Home network convenience |
Media server makes music, pictures and movies available to devices in the home network (DLNA/UPnP AV) Secure access to your own FRITZ!Box from anywhere with MyFRITZ! FRITZ!NAS – simple, browser-based access to all files in the network; can be shared with friends and family Networked applications such as Internet TV, video on demand and streaming Parental controls, push service, cloud contacts Guest access: share your internet connection over LAN or Wi-Fi Wake on LAN over the Internet Supports devices compliant with DLNA Also supports online storage, web radio and podcasts |
FRITZ!OS |
"fritz.box": multi-language user interface, for intuitive operation via Web browser User interface optimized for smartphones and tablets (responsive design) Free updates for new functions and security Advanced view for special configuration options, help function with full-text search Handy FRITZ!Apps for your smartphone: MyFRITZ!App for FRITZ! convenience on the go, the clever Wi-Fi helper FRITZ!App WLAN and FRITZ!App Smart Home for intuitive control of your FRITZ! Smart Home |
Package contents |

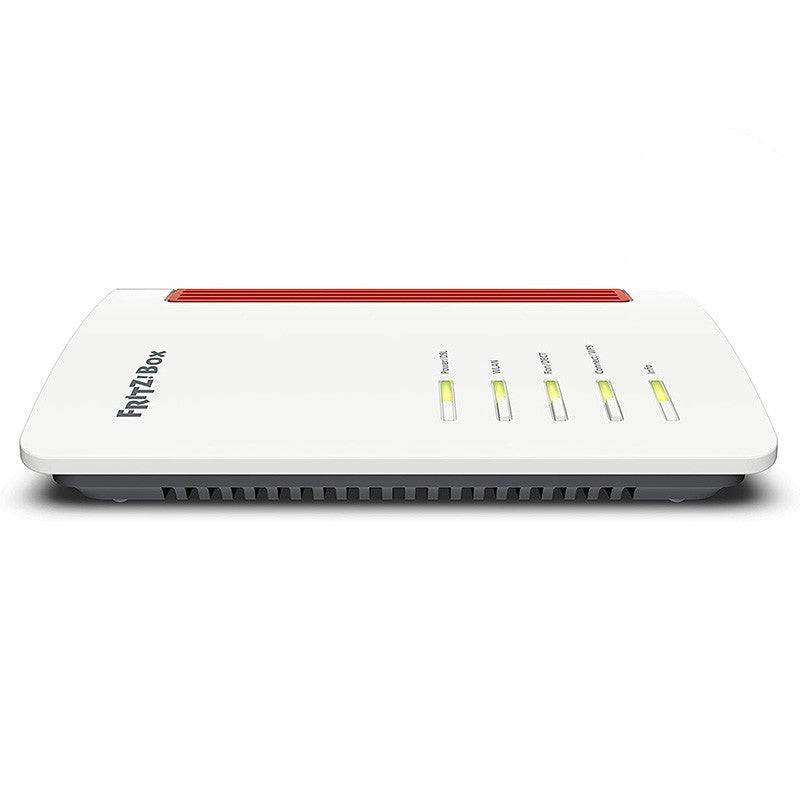

FRITZ!Box 7530 AX Power adapter 4-meter long DSL connecting cable 1.5 meter-long LAN cable Quick guide |
Device properties |
Dimensions (W x H x D): 208 x 150 x 37 mm Can be wall mounted Average power consumption: 6 watts |
