Gamemax Mesh BOX PRO ATX Black No fan
Gamemax Mesh BOX PRO ATX Black No fan
Gamemax Mesh BOX PRO ATX Black No fan
Gamemax Mesh BOX PRO ATX Black No fan
Roll over image to zoom in Click on image to zoom
Gamemax Mesh BOX PRO ATX Black No fanGamemax Mesh BOX PRO ATX Black No fanGamemax Mesh BOX PRO ATX Black No fanGamemax Mesh BOX PRO ATX Black No fan

Gamemax Mesh BOX PRO ATX Black No fan

Save $31.00
Gamemax
Price:
$101.00 $132.00

Description

Product Name: Gamemax Mesh BOX PRO ATX Black No fan
Model Number: Gamemax Mesh BOXPRO Black
Brand: Gamemax

Manufacturer Warranty: 3 Year

MeshBox PRO BK

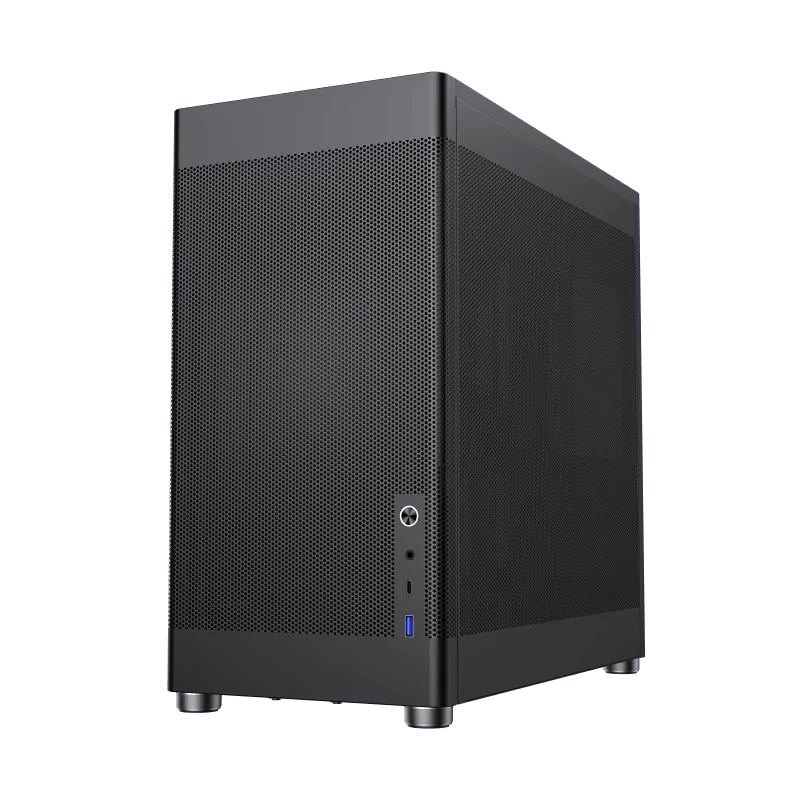

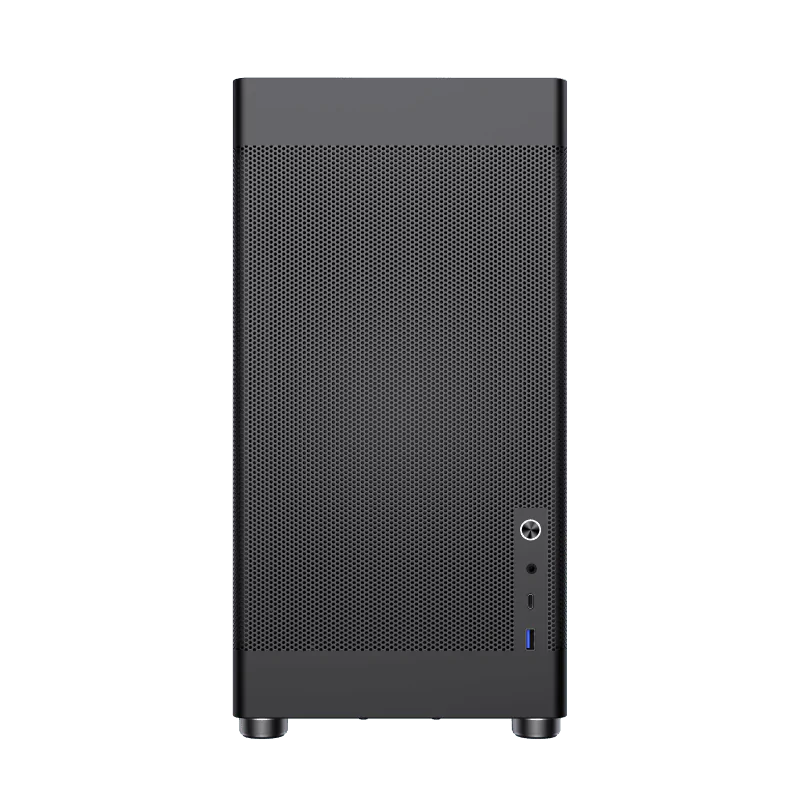

GameMax MeshBox PRO ATX Chassis, featured 3x fully mesh sides and front metal mesh panel which focused airflow, along with vertical airflow designed game case, which makes complex into simple, blends in the home
Vertical airflow channel, small size, high compatibility, basically suitable for installation of all mainstream accessories on the market
The bottom fan position blows directly to the graphics card to optimize cooling performance to maximum
The chassis is a modular design, optimizes wire management, and makes enough internal space.
Good vertical airflow design, cooling internal anywhere and anyplace.
Full area of dust-proof design, giving the computer a clean home
Support 240 water cooling and up to 168mm air-cooling CPU cooler
Support high-end popular graphics cards 305~355mm, unlimited games.

GameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMax

Form Factor (Midi, Micro, Mini ITX, Full) ATX Deskop Chassis
Chassis SPCC  0.8/0.6mm
PSU Form Factor ATX
M/B Form Factor ATX,Micro-ATX, DTX,Mini-ITX
Front Panel Full Metal Mesh
Top Panel ABS, Steel
Side Panel Left Full Metal Mesh
Right Full Metal Mesh
External   Drive Bay(s) 5.25" (ODD) *0
3.5" *0
Internal   Drive Bay(s) 3.5" (HDD) 3.5" x 1+SSDx 3 or   SSD*4
2.5" (SSD)
I/O Buttons *1
USB3.2 Port(s) *2 (TYPE A*1+TYPE C*1)
Audio Combo Audio*1
Card Reader (Support) *0
Cooling Fan    Support Front *0
Top 2x120 or 2x140mm  (Fan optional)
Rear 1x120mm  (Fan optional)
Left Side *0
Bottom 3x120 or 2x140mm  (Fan optional)
Water Cooling Support
    (Radiator Size)		 Front *0
Top 240mm*1
Bottom 240mm*1
Dust   Cover Bottom and Top with dust filter
Slots *7
Carton   & Logo GameMax
Dimensions Chassis (L)401*(W)204*(H)386mm
Full Case (inc Fascia) (L)413*(W)204*(H)398mm
Carton (L)470*(W)275*(H)463mm
VGA Card Length 355mm
CPU Cooler Height 168mm
Cable Management   Depth Max. 34mm
