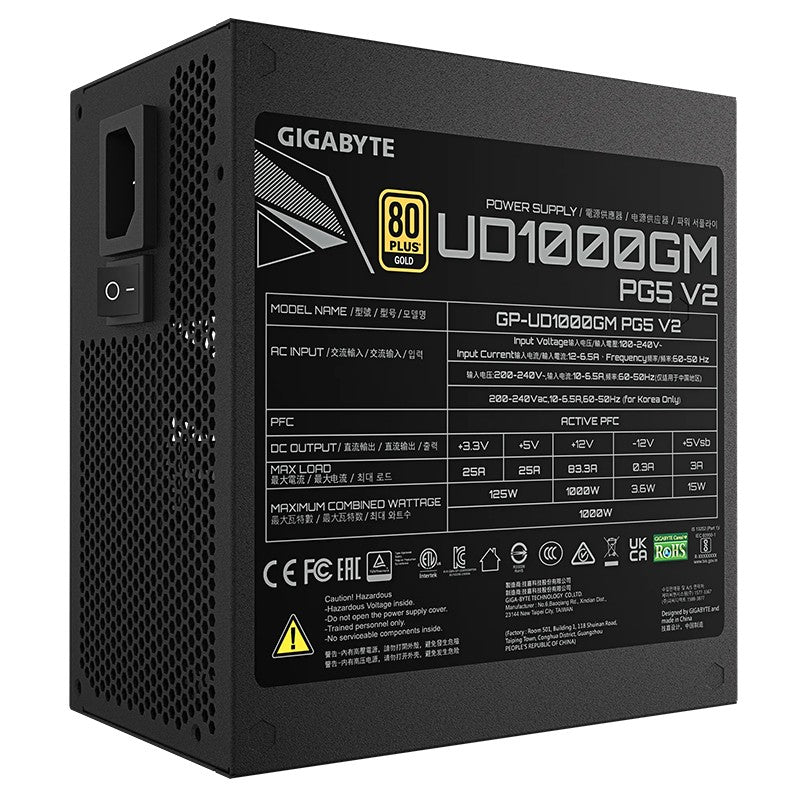

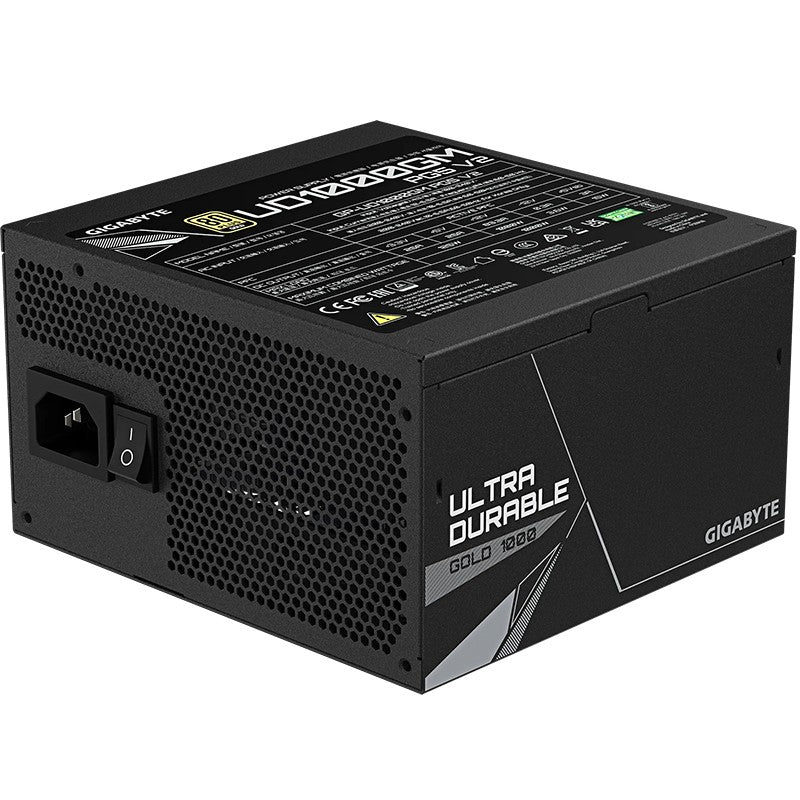

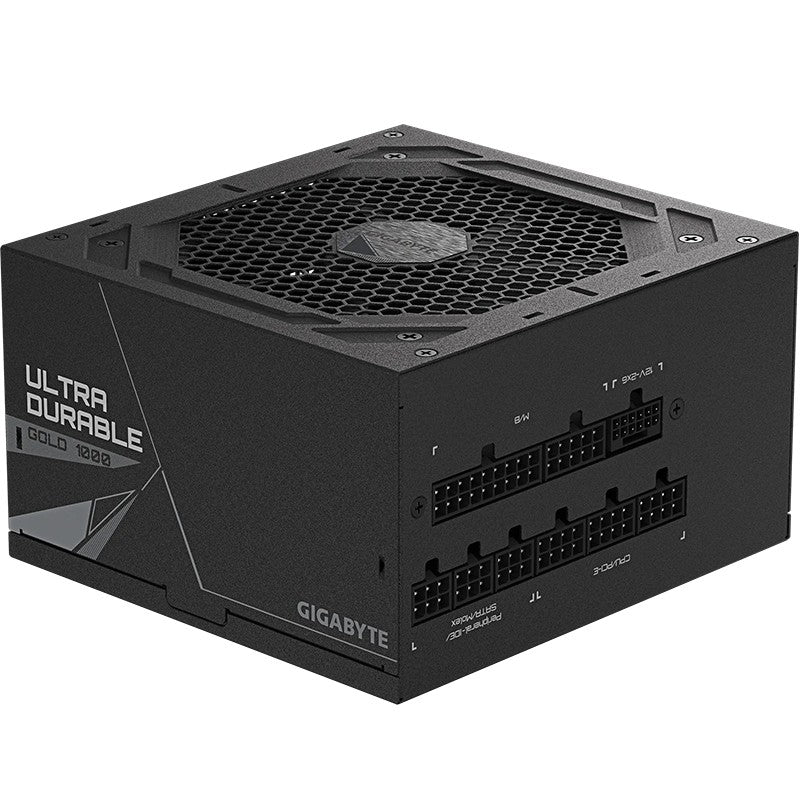

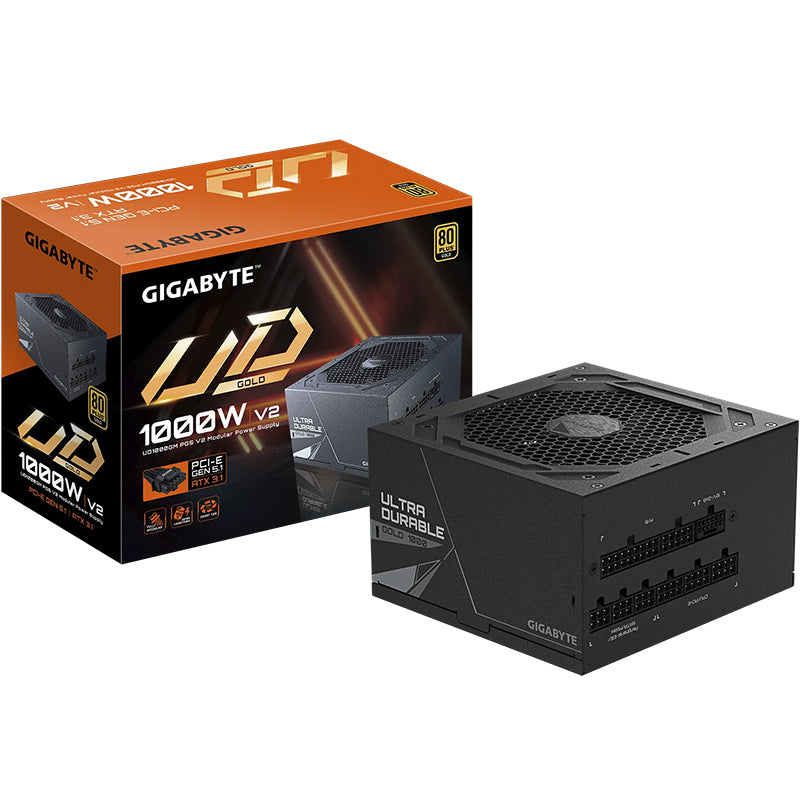

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimensions

150 x 140 x 86 mm

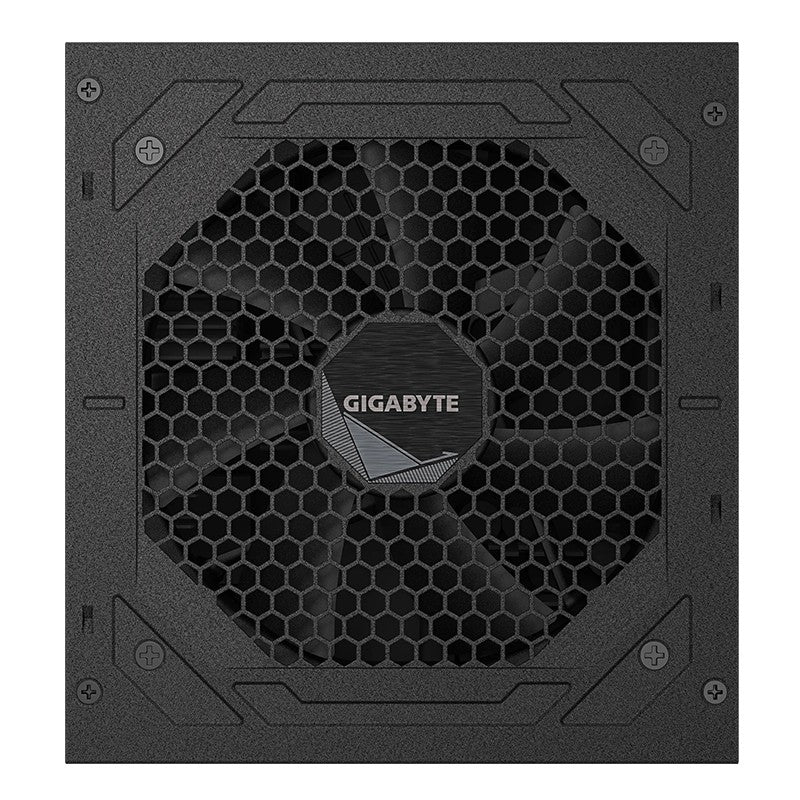

Fan Type

120mm Hydraulic Bearing(HYB) Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Embossed, All black

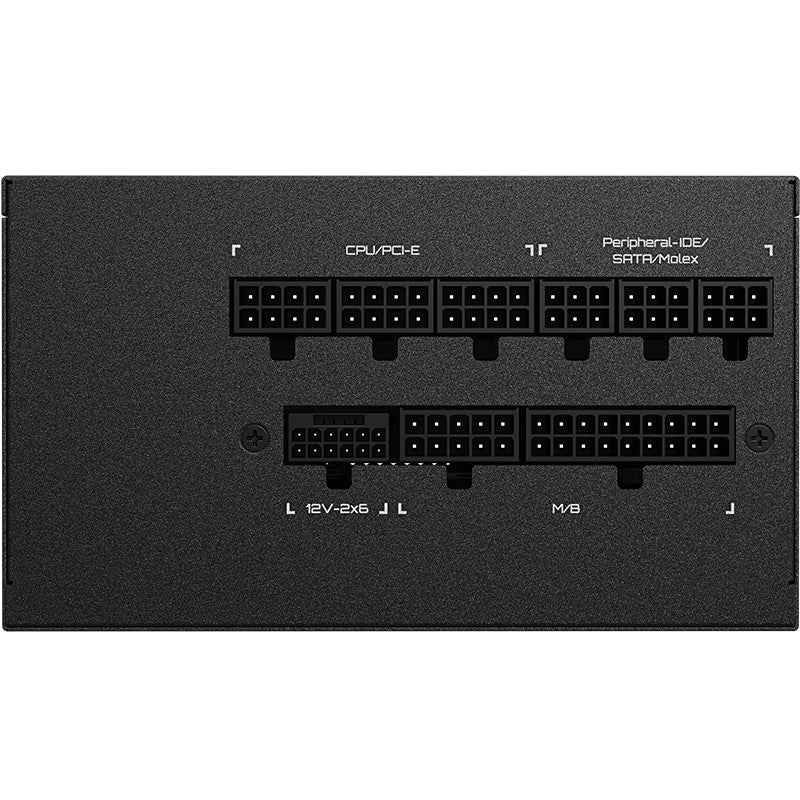

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

PCI-e 12+4 Pin x 1:700mm*1

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
