Description
Please note: This item requires a 15 Amp power input
SPECIFICATIONS:
Type |
Intel Form Factor ATX 12V v3.0 |
PFC |
Active PFC (>0.9 typical) |
Input Voltage |
100-240 Vac (full range) |
Input Current |
15-6.5A |
Input Frequency |
60-50 Hz |
Output Capacity |
1300W |
Dimension |
150 x 160 x 86 mm |

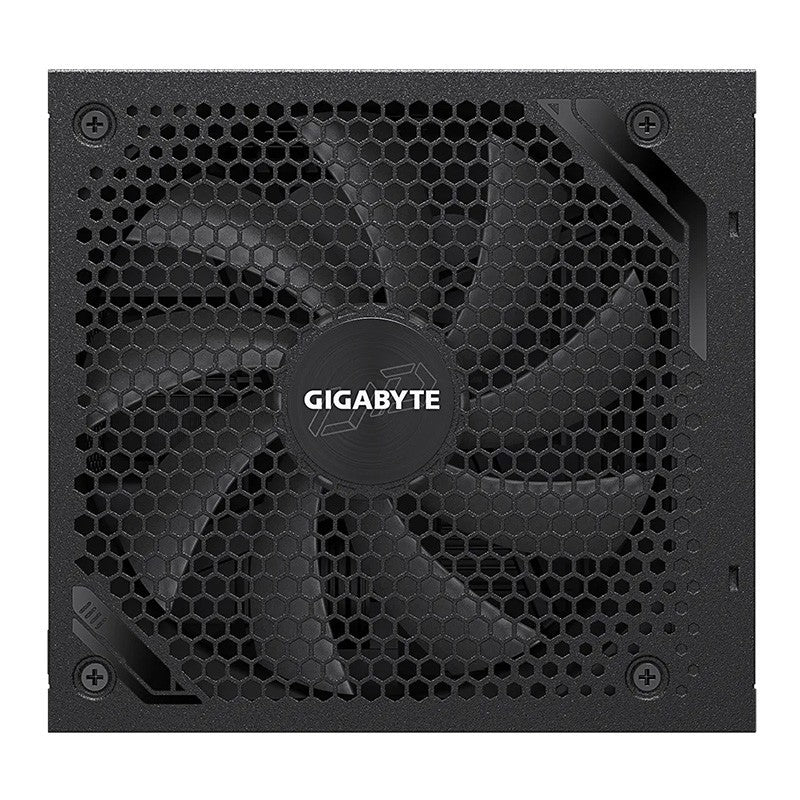

Fan Type |
140mm double ball bearing fan |
80 PLUS |
Gold |
Efficiency |
90% at typical load |
MTBF |
>100,000 hours |
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal |
100-150ms |
Hold Up Time |
>16ms |
Cable Type |
Flat, All black |

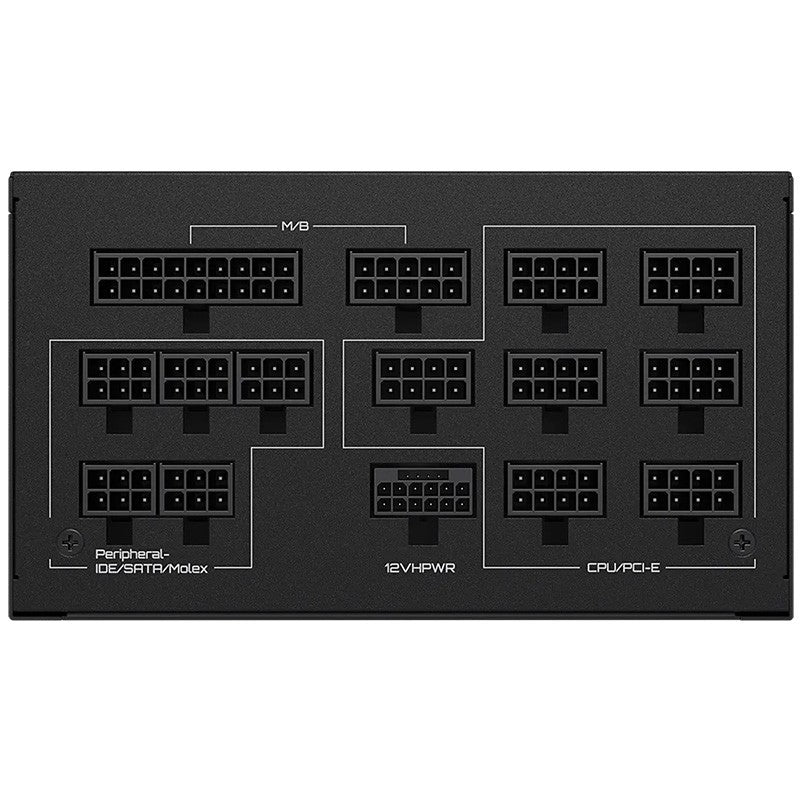

Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
