Gigabyte 2TB AG512K2TB Aorus 12000 PCIe 5.0 NVMe M.2 2280 SSD

Form Factor

M.2 2280

Total Capacity

2000GB

NAND

3D TLC NAND Flash

External DDR Cache

LPDDR4 4GB

Sequential Read speed

Up to 12,400 MB/s

Sequential Write speed

Up to 11,800MB/s

Dimension

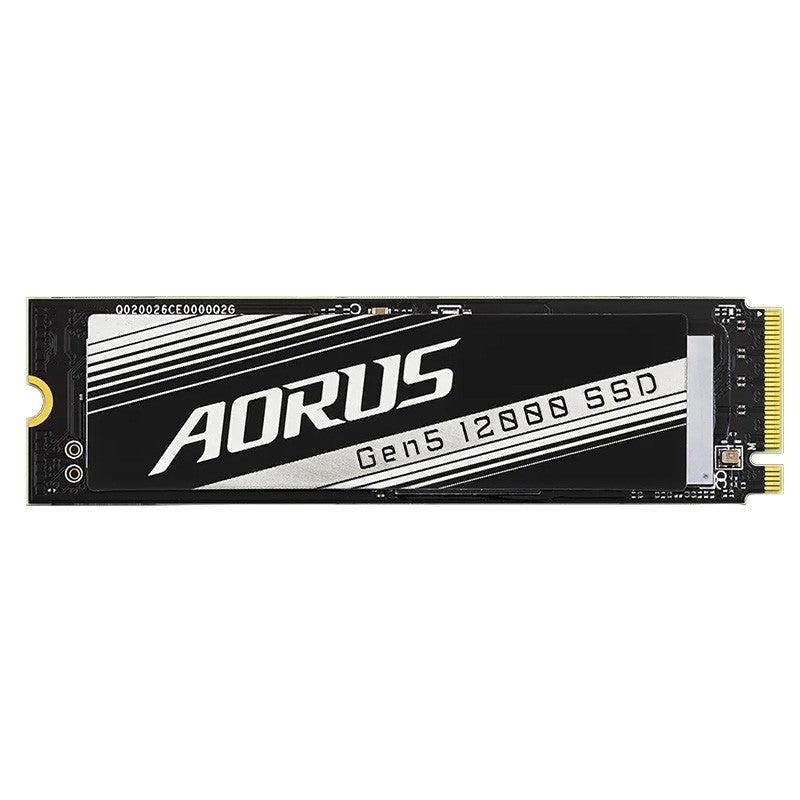

SSD without Heatsink: 80 x 22 x 3.5mm

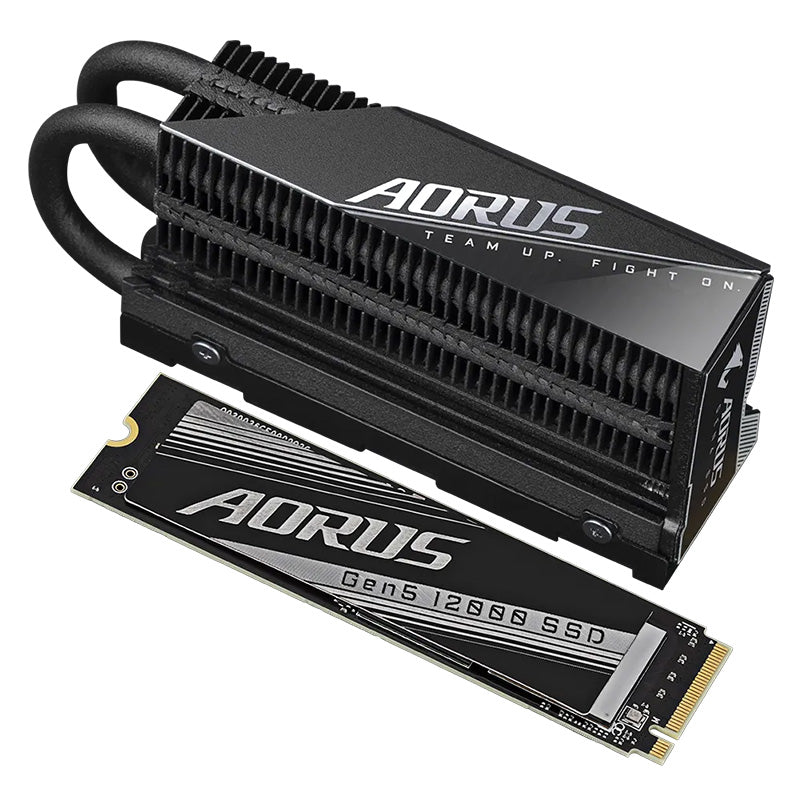

SSD with Heatsink: 92 x 23.5 x 44.7 mm

Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List

Mean time between failure (MTBF)

1.6 million hours

Max. Operating Power

11.5W

Power Consumption (Idle, PS3)

<144mW

Power Consumption(PS4, L1.2)

<85mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

* To keep AORUS Gen5 12000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
