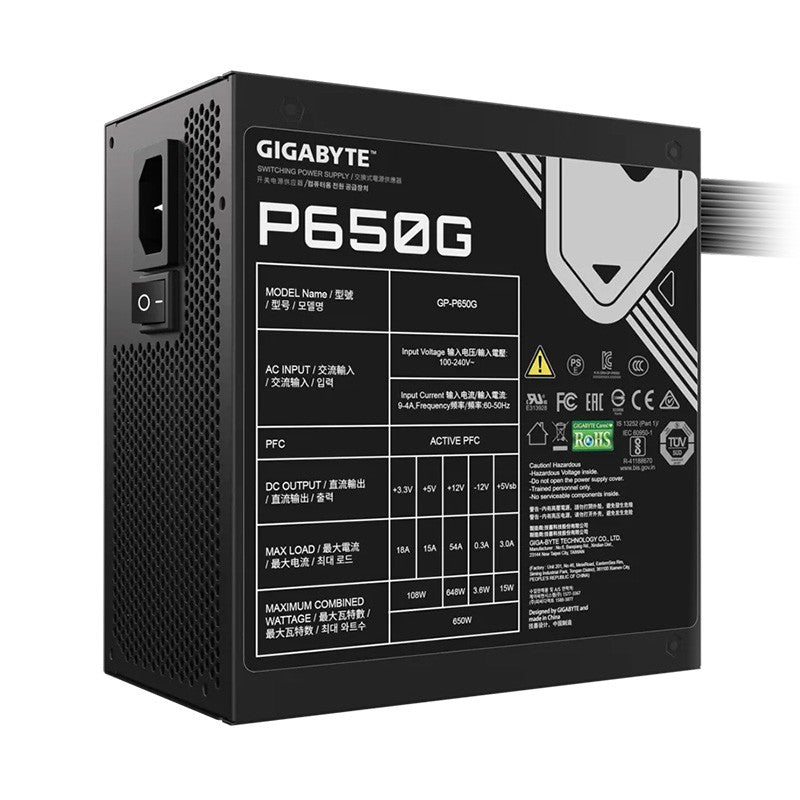

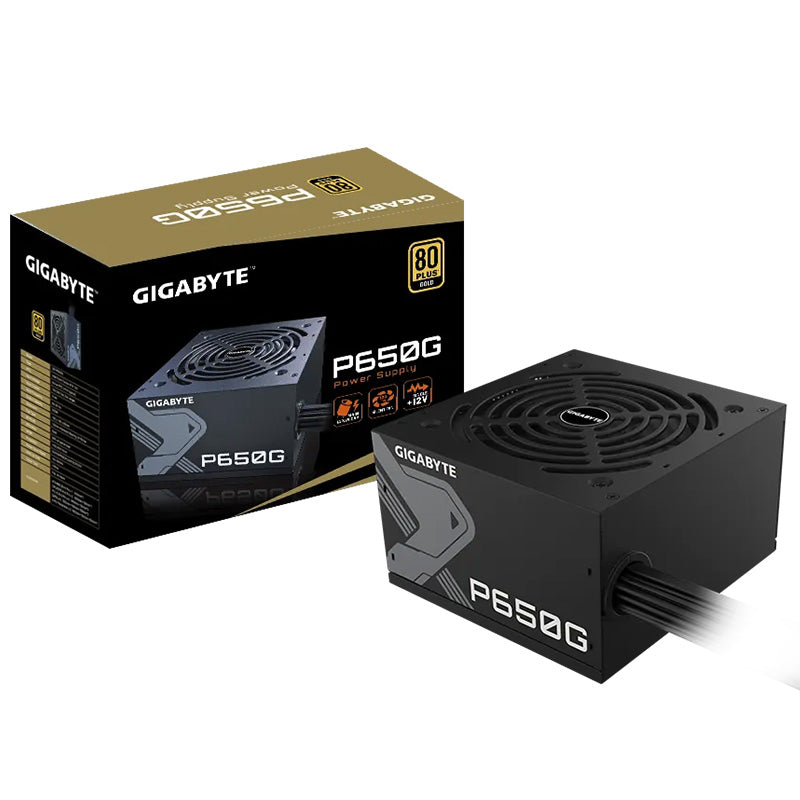

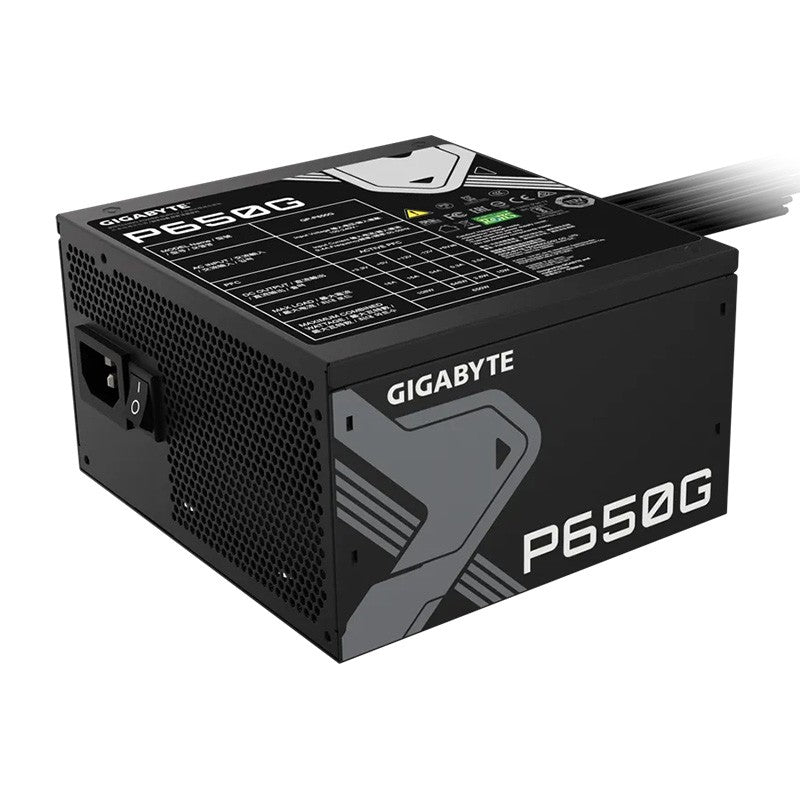

Gigabyte 650W 80+ Gold ATX Power Supply

PFC

Active PFC(>0.9 typical)

Input Voltage

100-240 Vac(full range)

Input Current

9-4A

Input Frequency

60-50 Hz

Output Capacity

650W

Dimension

150 x 140 x 86 mm

Fan Type

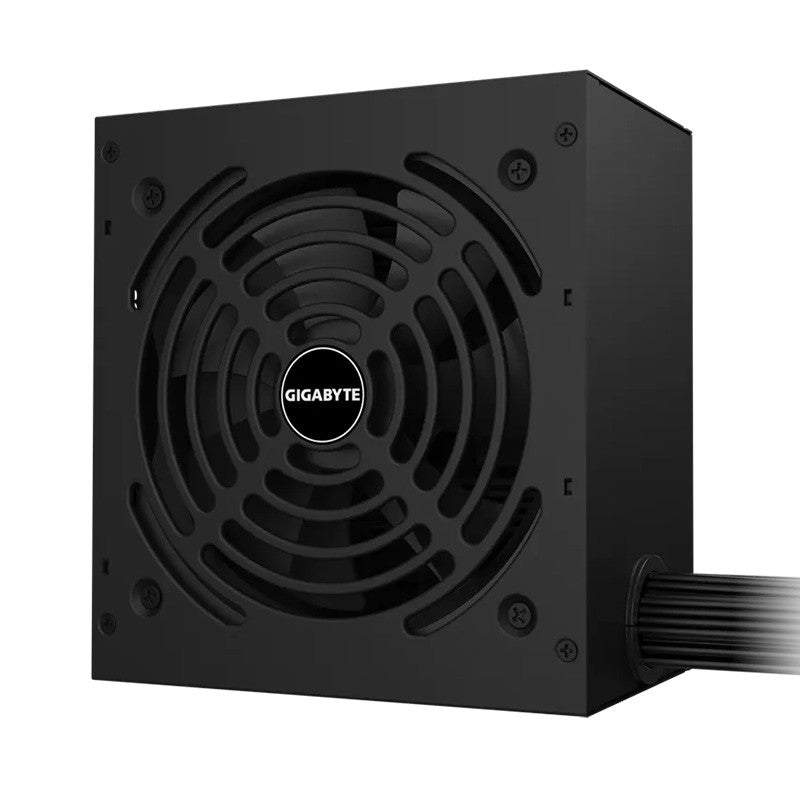

120mm Hydraulic Bearing (HYB) Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-500ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1

PCI-e 6+2 Pin x 4 : 500mm+150mm*2

SATA x 6 : 500mm+150mm+150mm*2

4 Pin Peripheral x 3: 500mm+150mm+150mm*1
