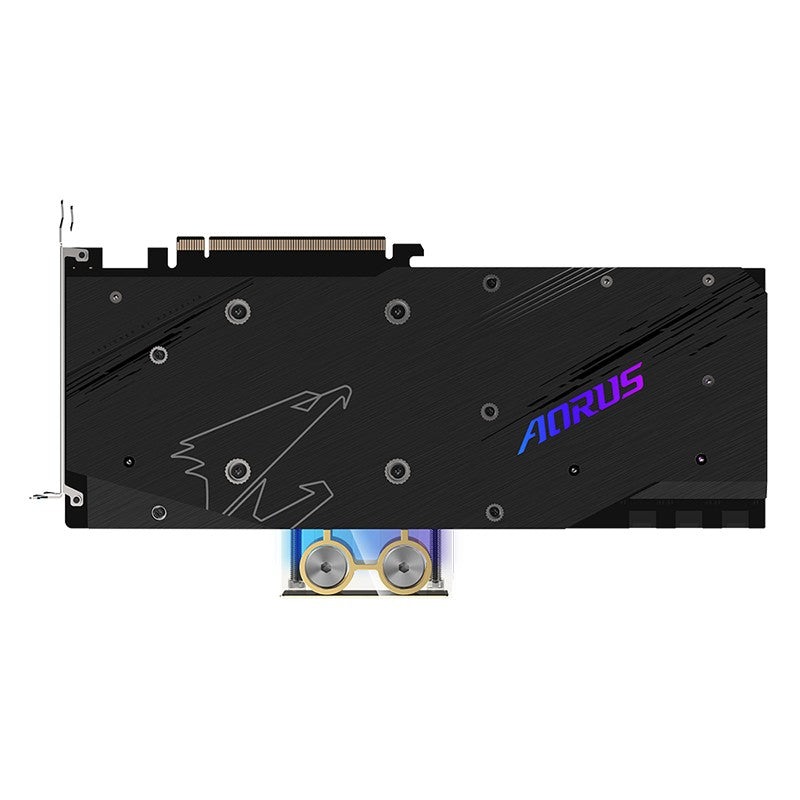

Gigabyte Aorus Radeon RX 6900 XT Xtreme 16G Graphics Card

Core Clock

Boost Clock* : up to   2525 MHz (Reference card: 2435 MHz)

Game Clock* : up to   2375 MHz (Reference card: 2250 MHz)

Stream Processors

5120

Process Technology

7 nm

Memory Clock

16000 MHz

Memory Size

16 GB

Memory Type

GDDR6

Memory Bus

256 bit

Memory Bandwidth (GB/sec)

512 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=146 H=28 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

900W

Power Connectors

8 pin*3

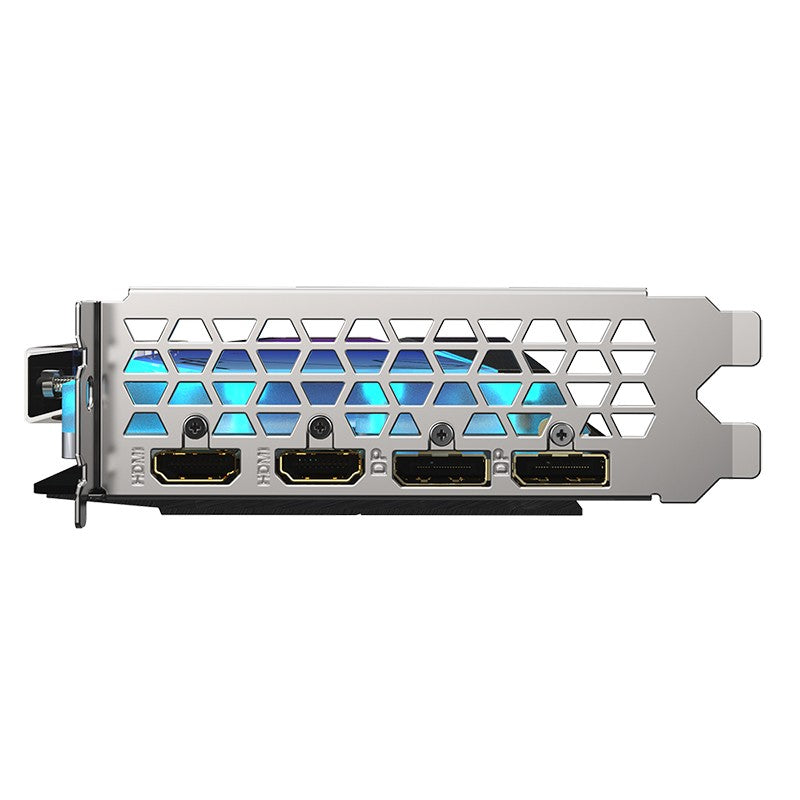

Output

DisplayPort 1.4a *2

HDMI 2.1 *2

Fitting type

G1/4"

Accessories

1. Quick guide

2. Warranty   registration

3. Metal sticker

4. Xtreme robot limited   edition

5. Water Block   installation

6. Thermal grease

Note

* “Boost Clock” is the   maximum frequency achievable on the GPU running a bursty workload. Boost   clock achievability, frequency, and sustainability will vary based on several   factors, including but not limited to: thermal conditions and variation in   applications and workloads.

* “Game Clock” is the   expected GPU clock when running typical gaming applications, set to typical   TGP (Total Graphics Power). Actual individual game clock results may vary.
