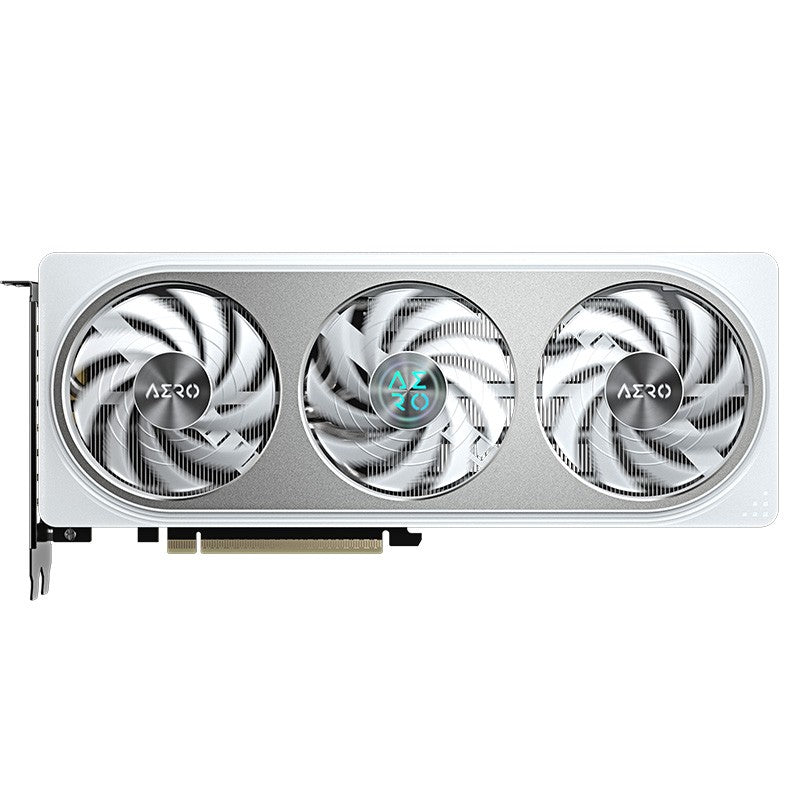

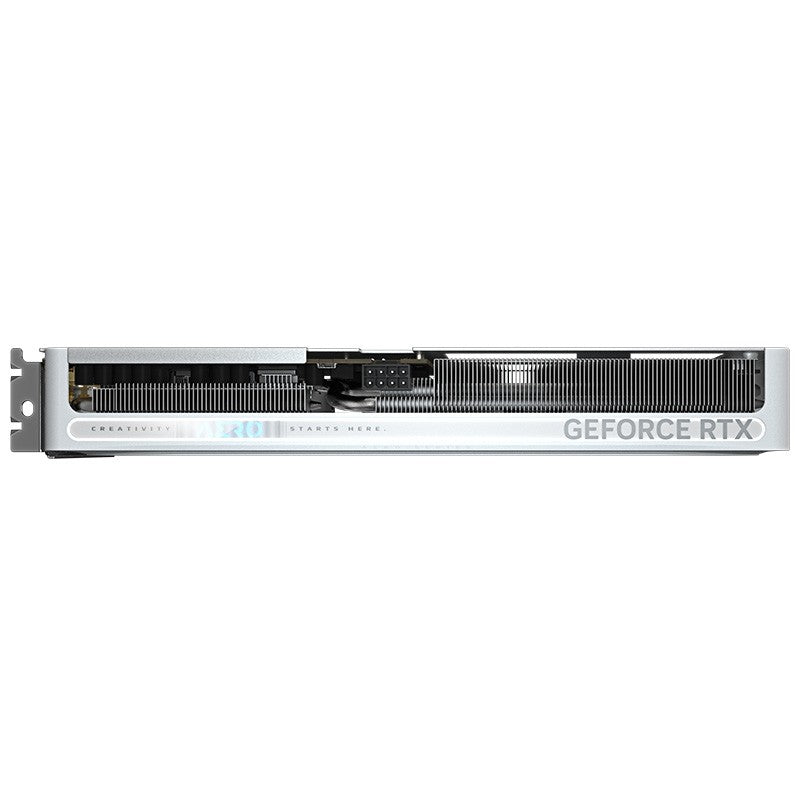

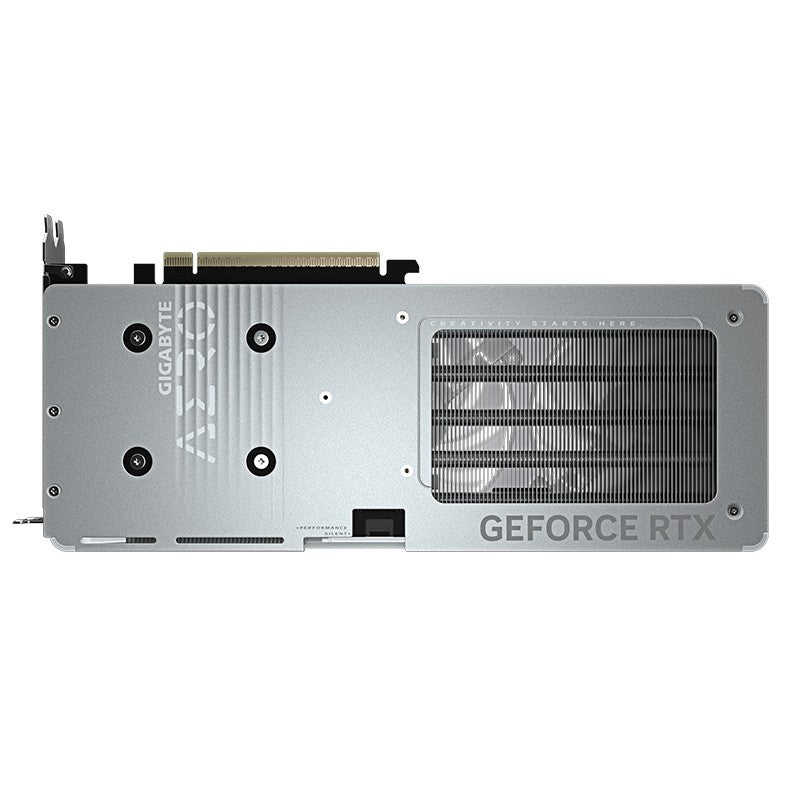

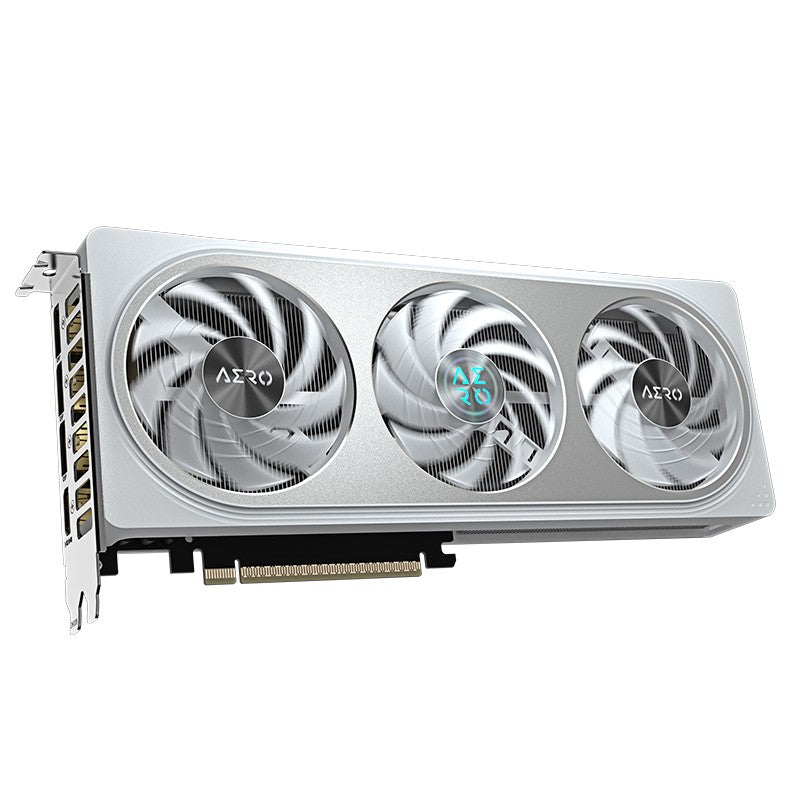

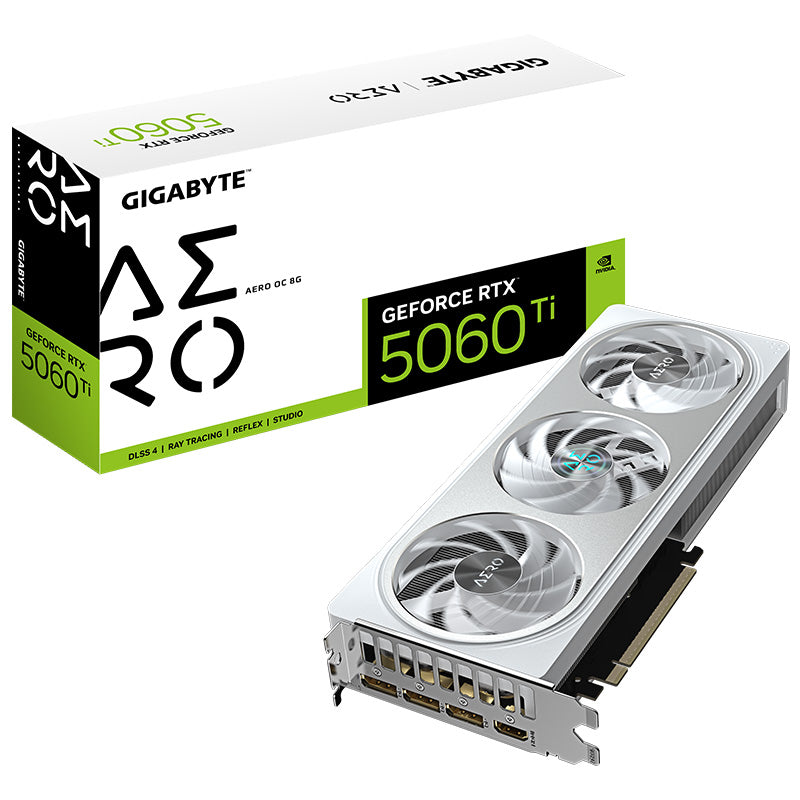

Gigabyte GeForce RTX 5060 Ti Aero OC 8G Graphics Card

Core Clock

2647 MHz (Reference card :2572 MHz)

CUDA® Cores

TBD

Memory Clock

28Gbps

Memory Size

8GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=117 H=40 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin

Output

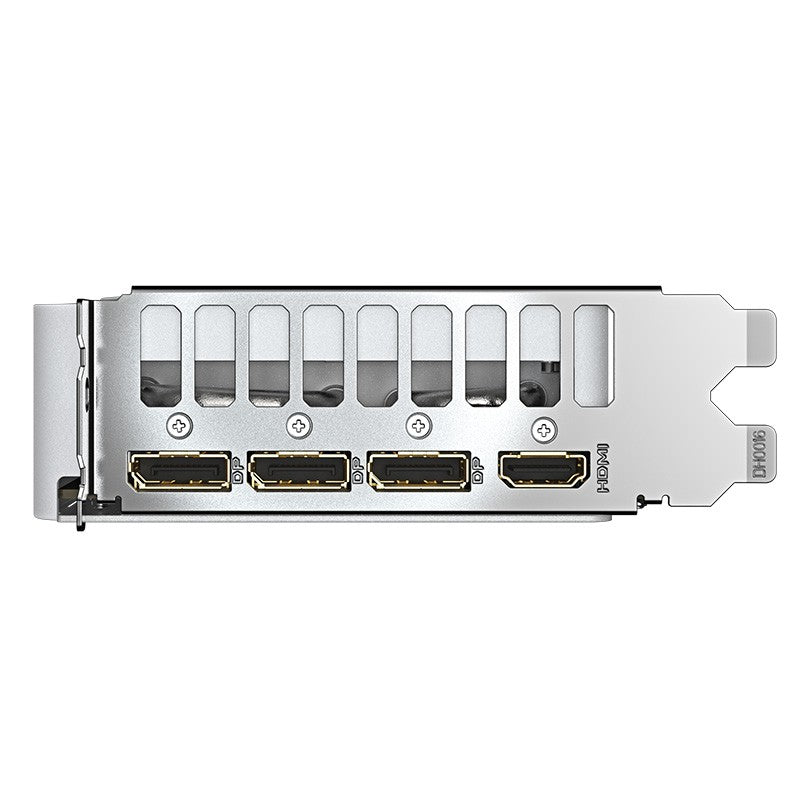

DisplayPort 2.1*3, HDMI 2.1*1

RGB Light

Side

Accessories

Quick guide
