Description
NOTE: SFF graphics cards are designed for compact PC cases with limited space. Please ensure your case supports the card’s dimensions.
SPECIFICATIONS:
Graphics Processing |
GeForce RTX™ 5070 |
Core Clock |
2542 MHz (Reference card : 2512 MHz) |
CUDA® Cores |
6144 |
Memory Clock |
28 Gbps |
Memory Size |
12 GB |
Memory Type |
GDDR7 |
Memory Bus |
192 bit |
Card Bus |
PCI-E 5.0 |
Digital max resolution |
7680x4320 |
Multi-view |
4 |
Card size |
L=282 W=110 H=50 mm |
PCB Form |
ATX |
DirectX |
DirectX 12 API |
OpenGL |
4.6 |
Recommended PSU |
750W |
Power Connectors |
16 Pin*1 |

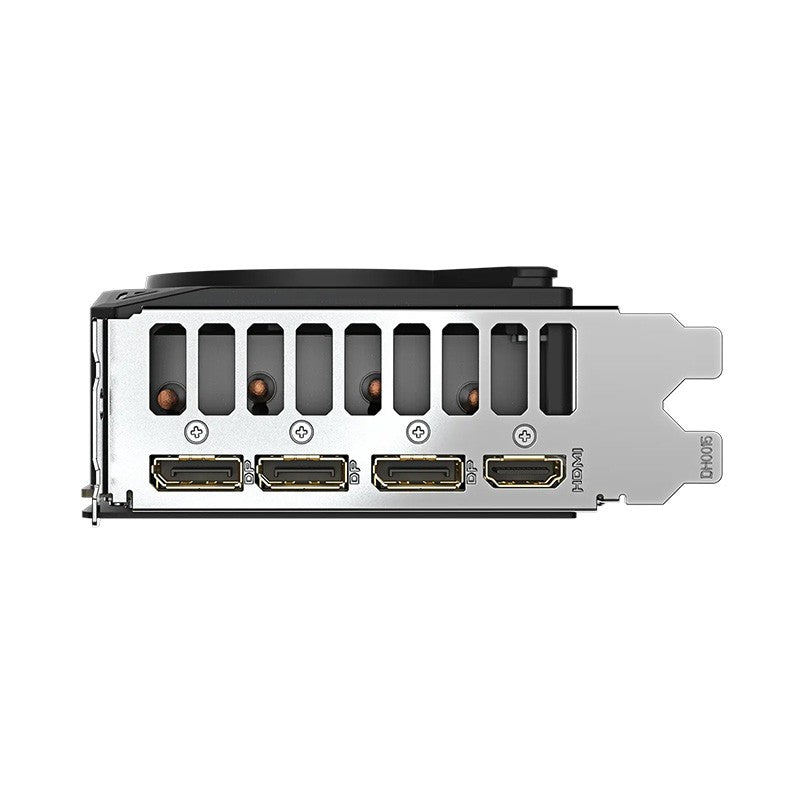

Output |
DisplayPort 2.1b *3 HDMI 2.1b *1 |
Accessories |
1. Quick guide 2. 1x 12V-2x6 to 2x PCIe 8pin adapter |
