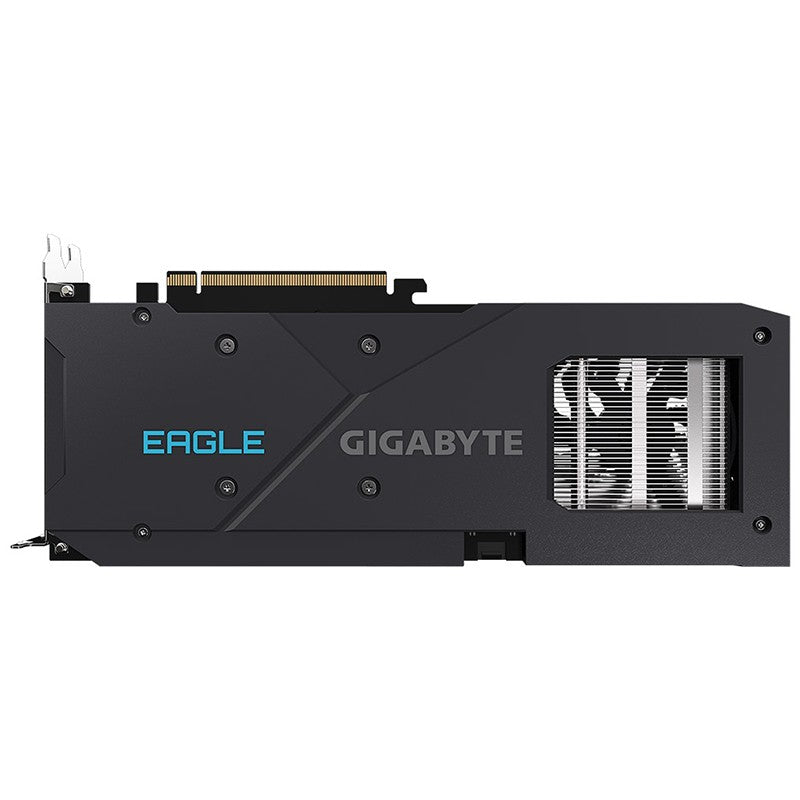

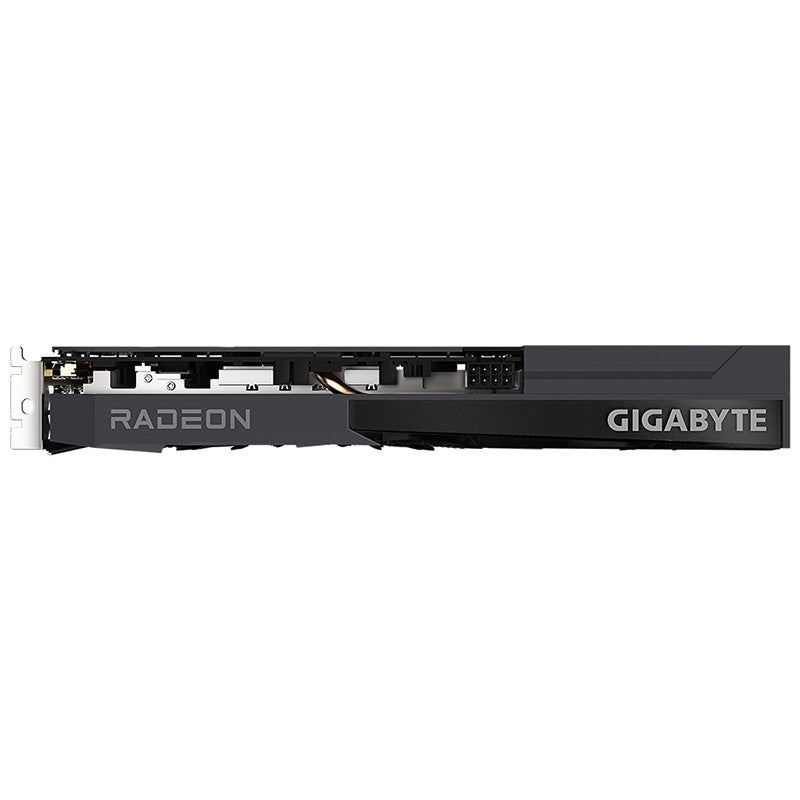

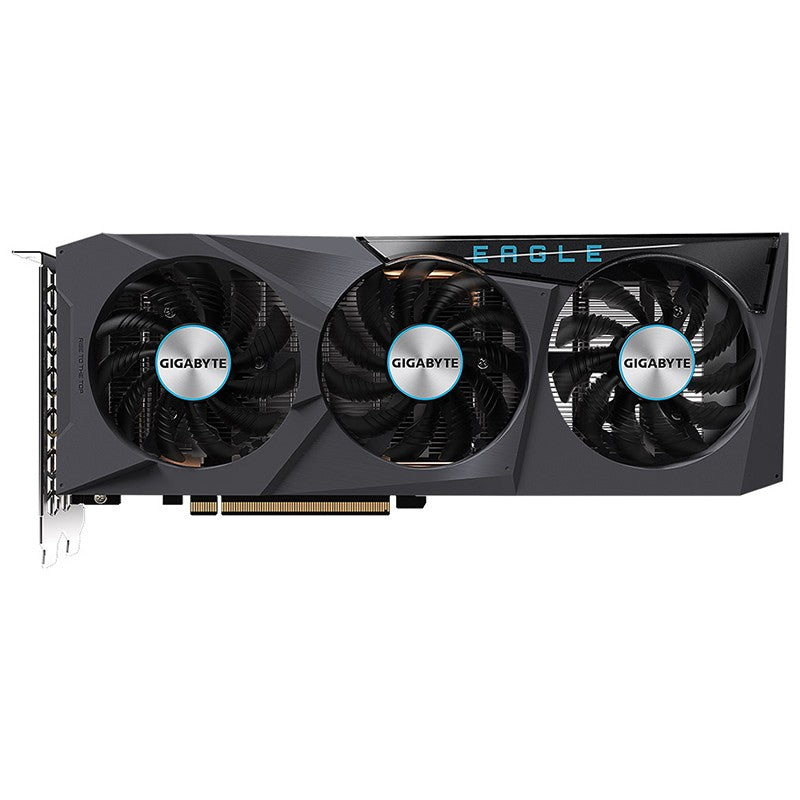

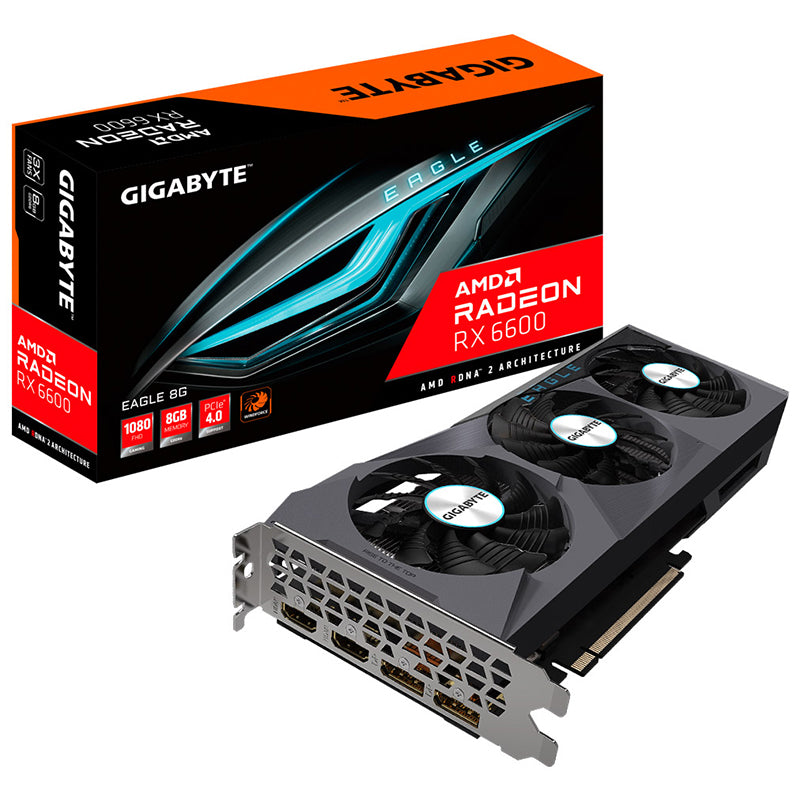

Gigabyte Radeon RX 6600 Eagle Graphics Card

Core Clock

Boost Clock* : up to 2491 MHz

Game Clock* : up to 2044 MHz

Stream Processors

1792

Memory Clock

14000 MHz

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

128 bit

Memory Bandwidth (GB/sec)

224 GB/s

Card Bus

PCI-E 4.0 x 8

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=113 H=41 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

500W

Power Connectors

8 pin*1

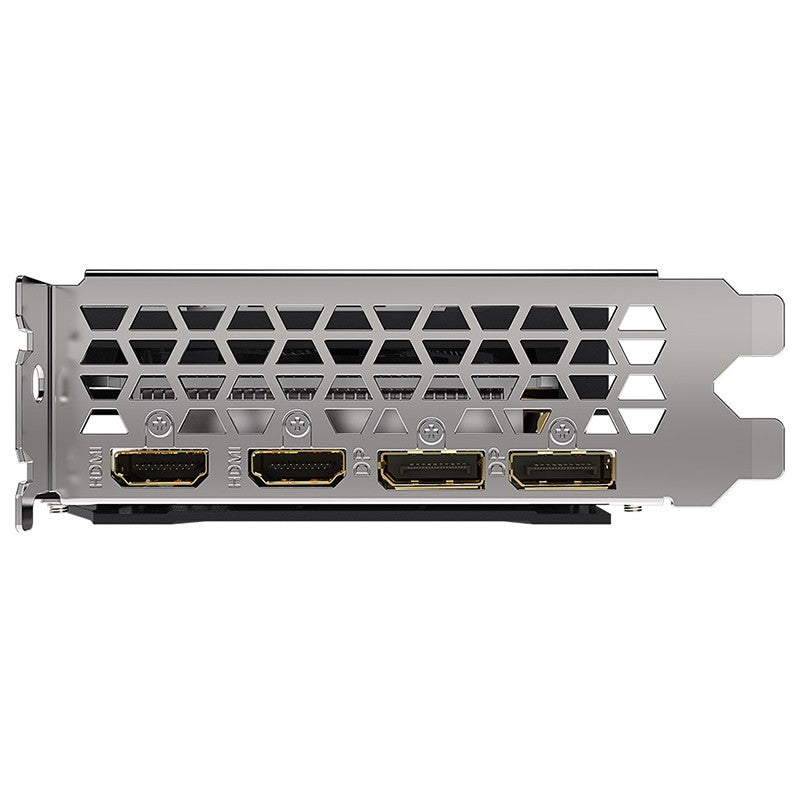

Output

DisplayPort 1.4a *2

HDMI 2.1 *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
