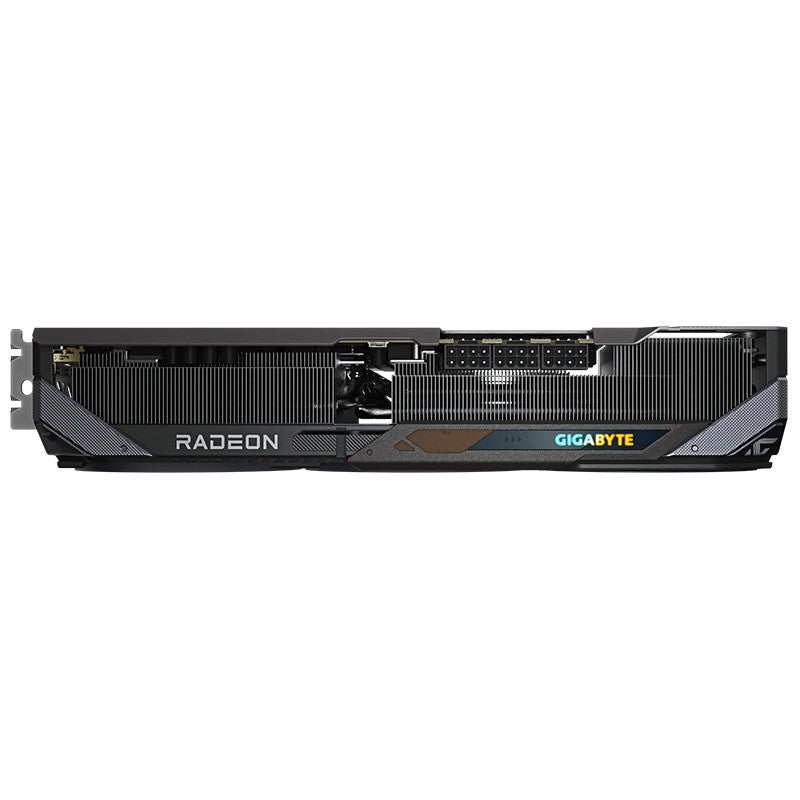

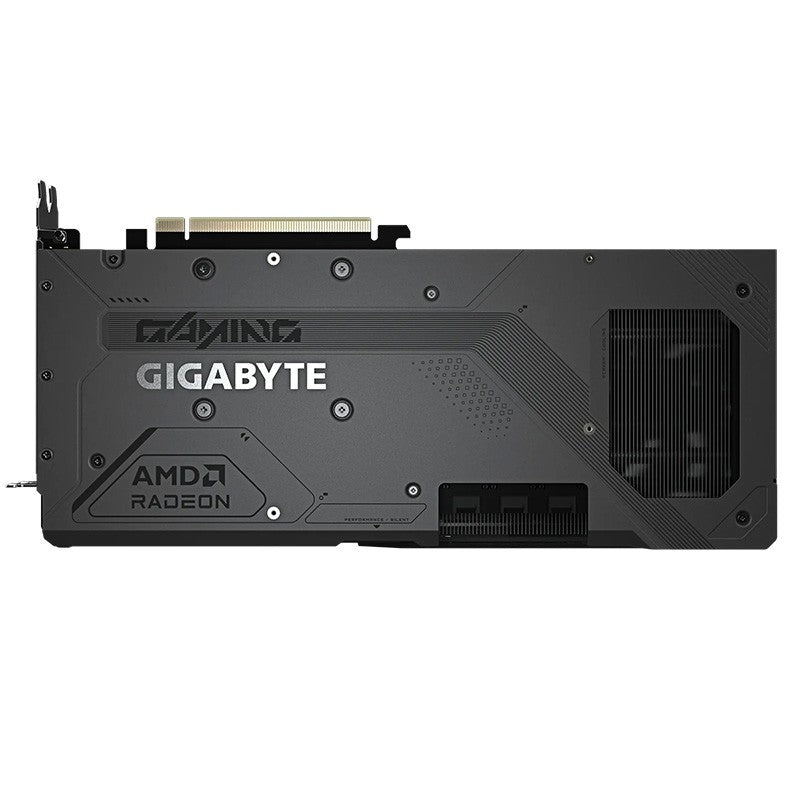

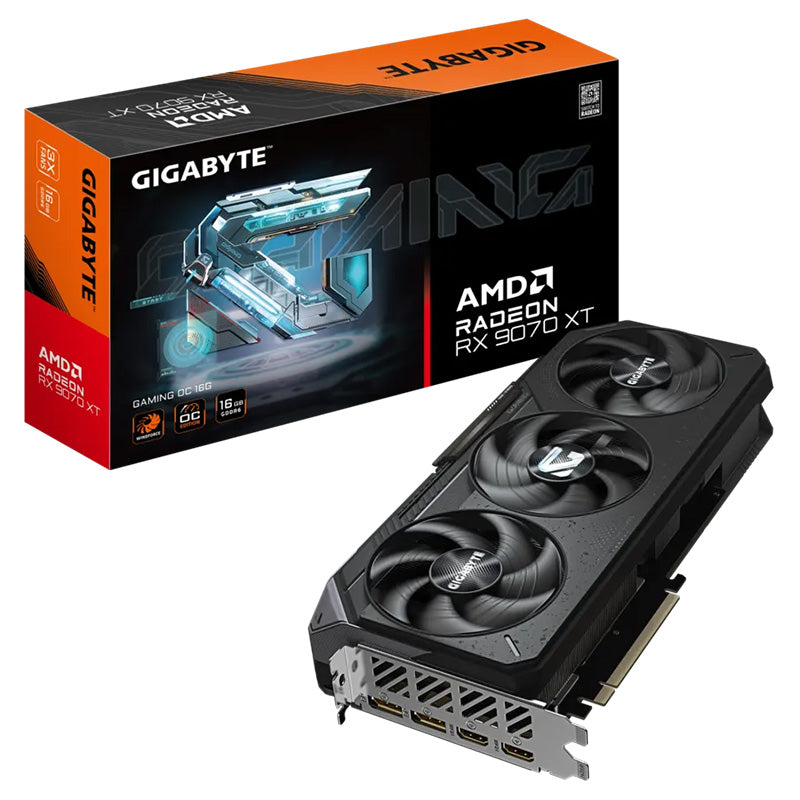

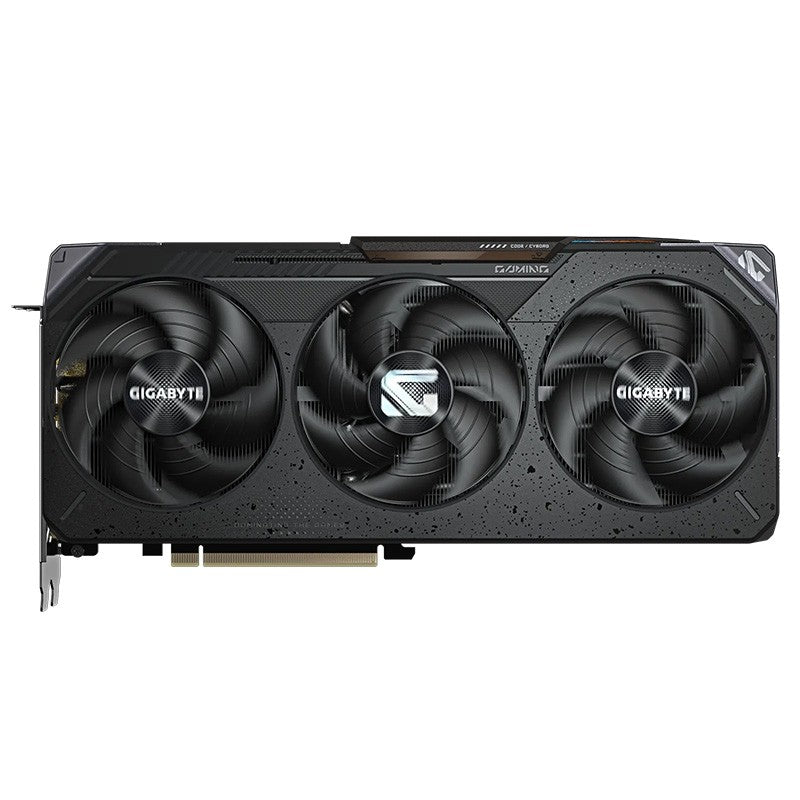

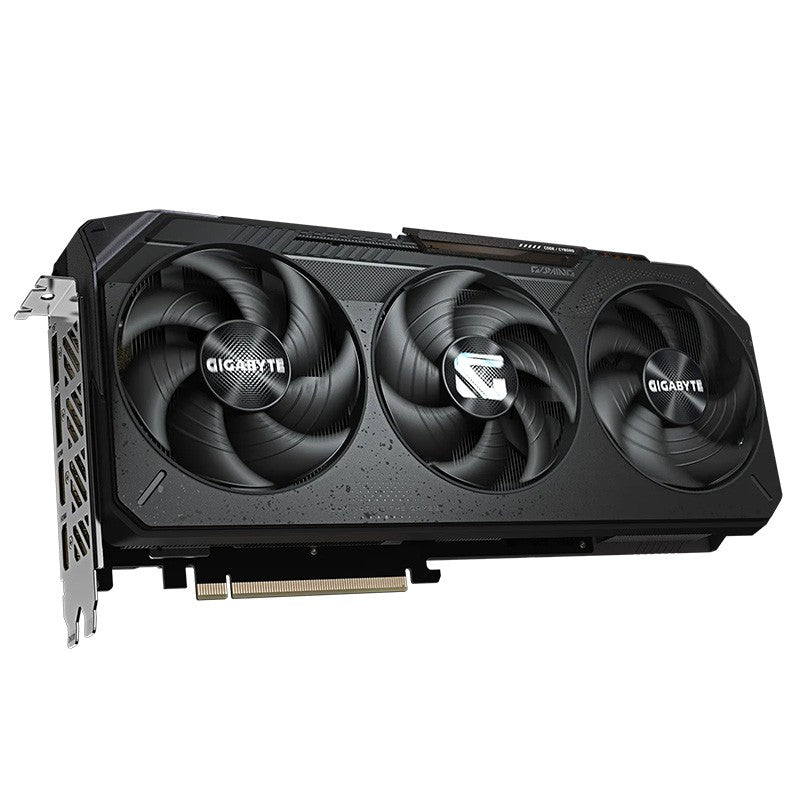

Gigabyte Radeon RX 9070 XT Gaming 16G OC Graphics Card

Core Clock

TBD

Stream Processors

4096

Memory Clock

20 Gbps

Memory Size

16GB

Memory Type

GDDR6

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=288 W=132 H=56 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

850W

Power Connectors

8 pin*3

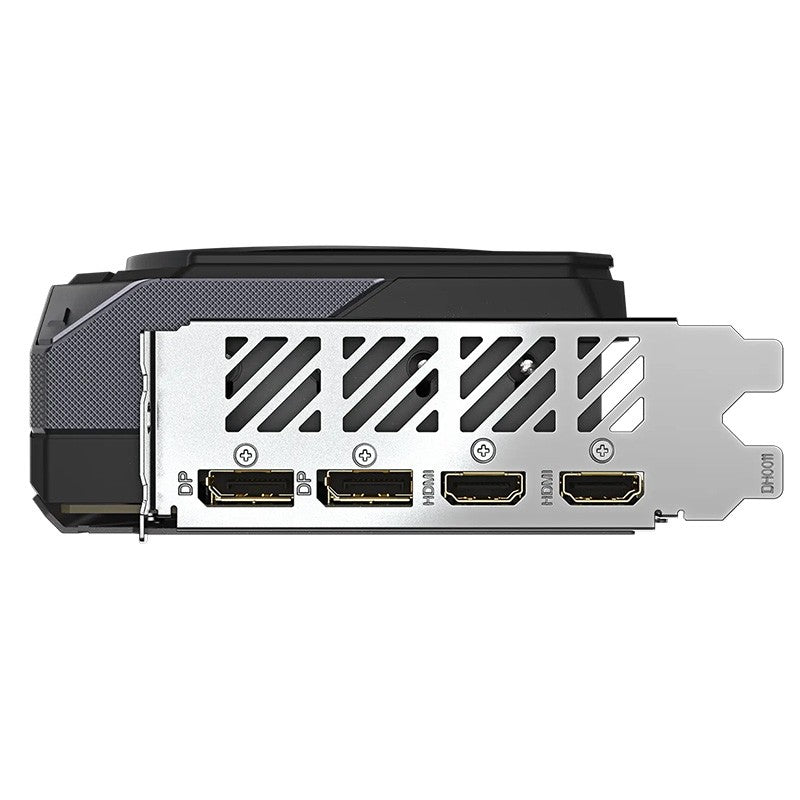

Output

DisplayPort 2.1a *2

HDMI 2.1b *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
