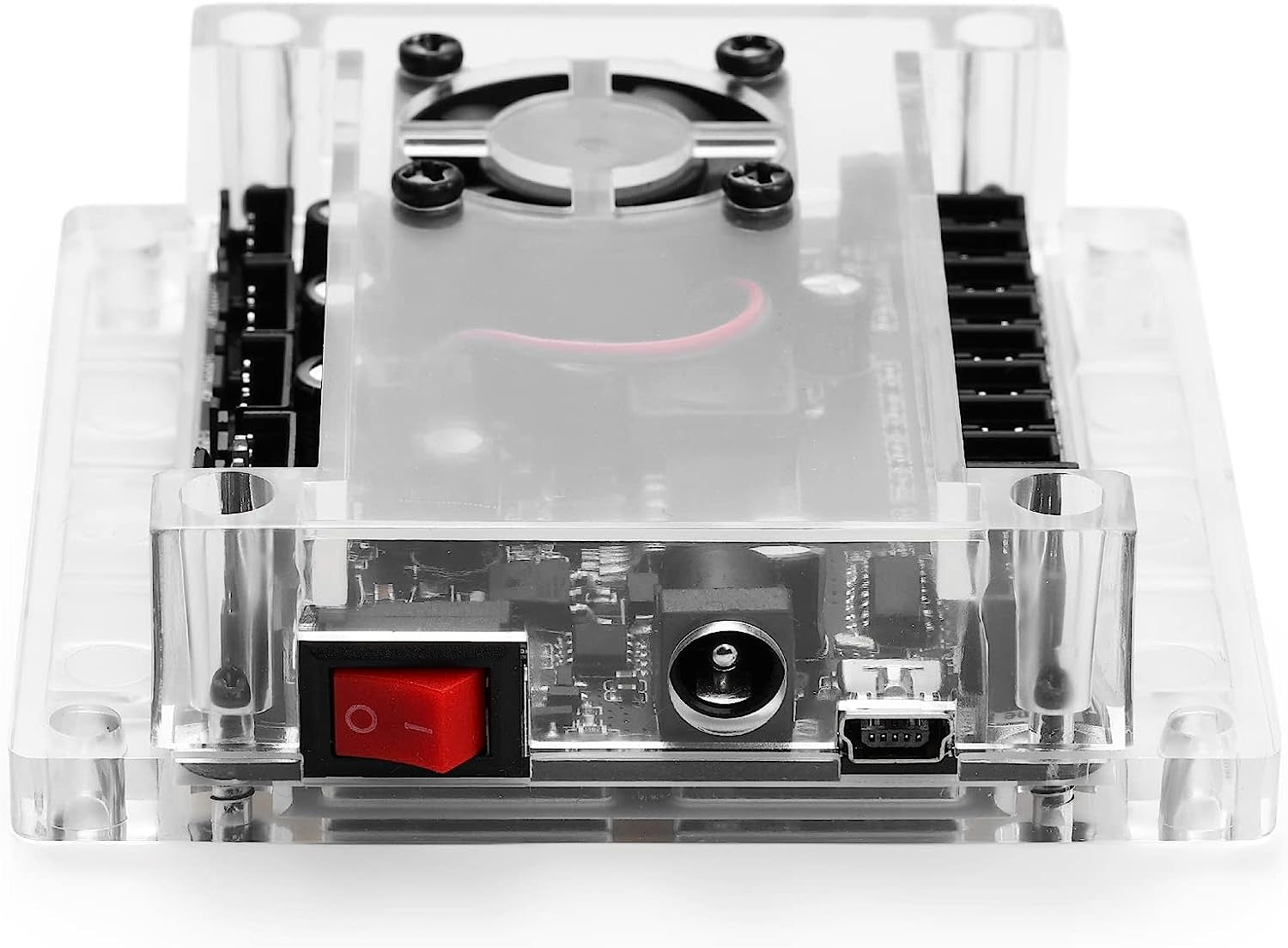

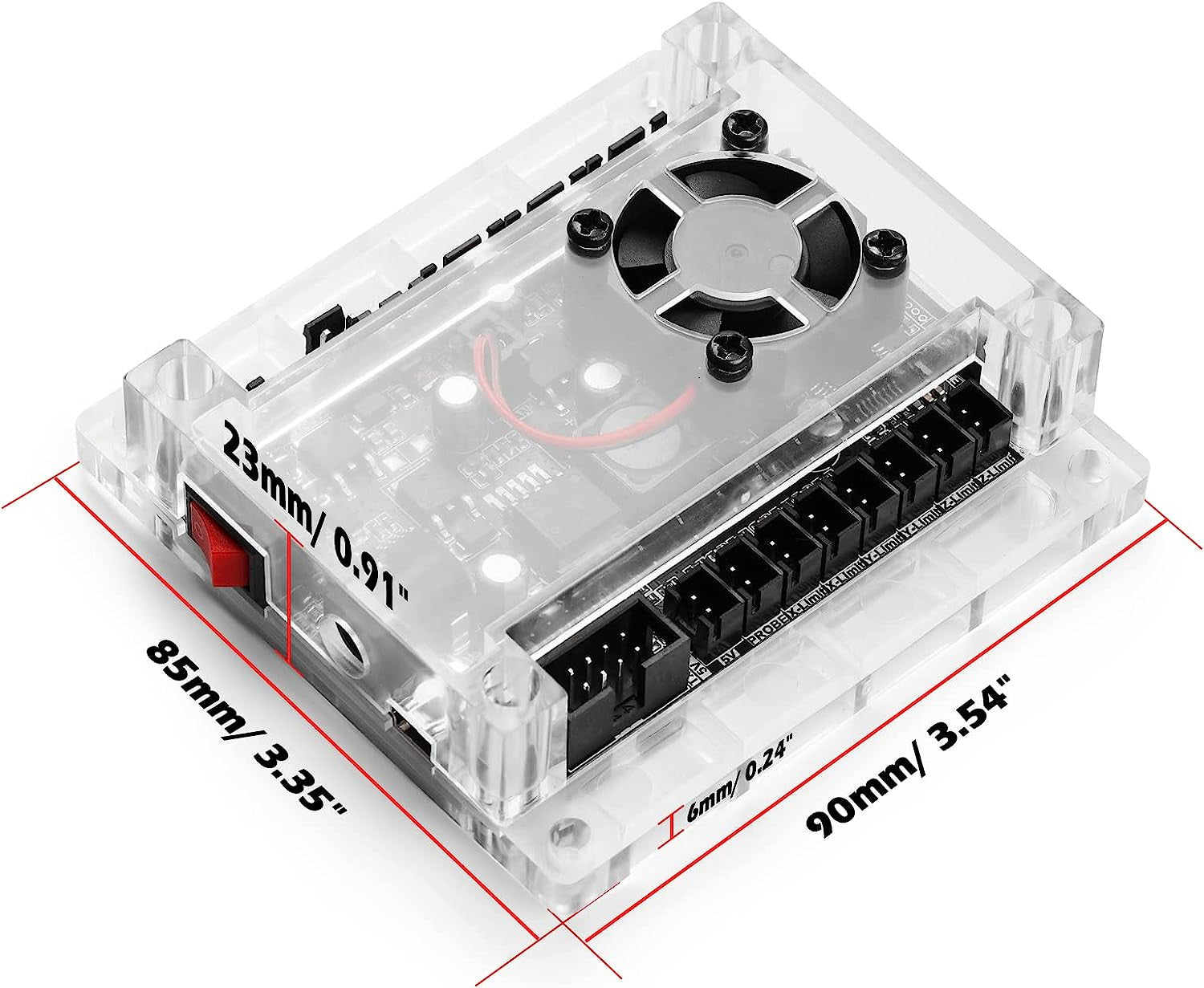

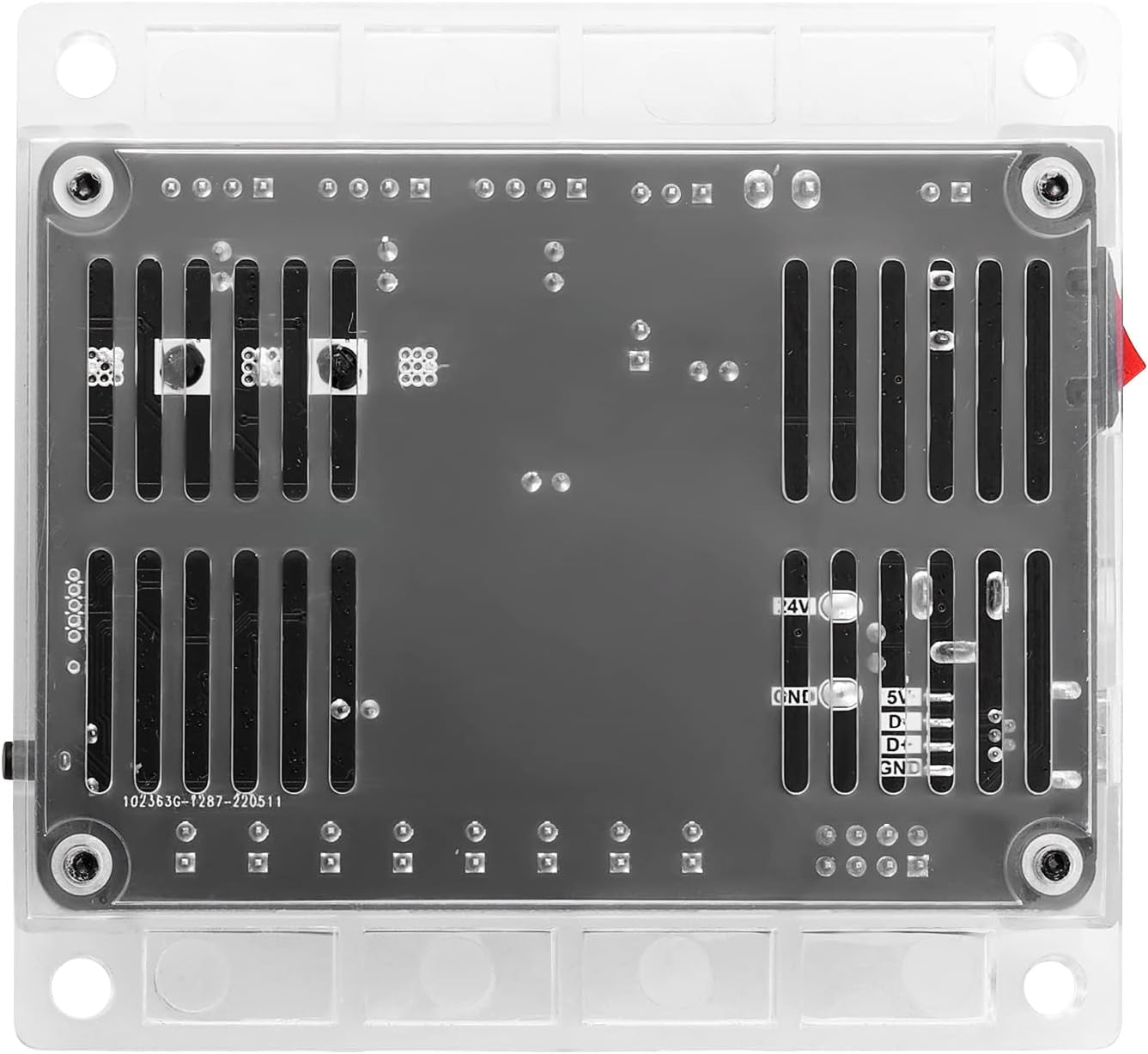

GRBL Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO
Roll over image to zoom in Click on image to zoom
GRBL Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO

GRBL Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO

SainSmart
Price:
$58.49

Description

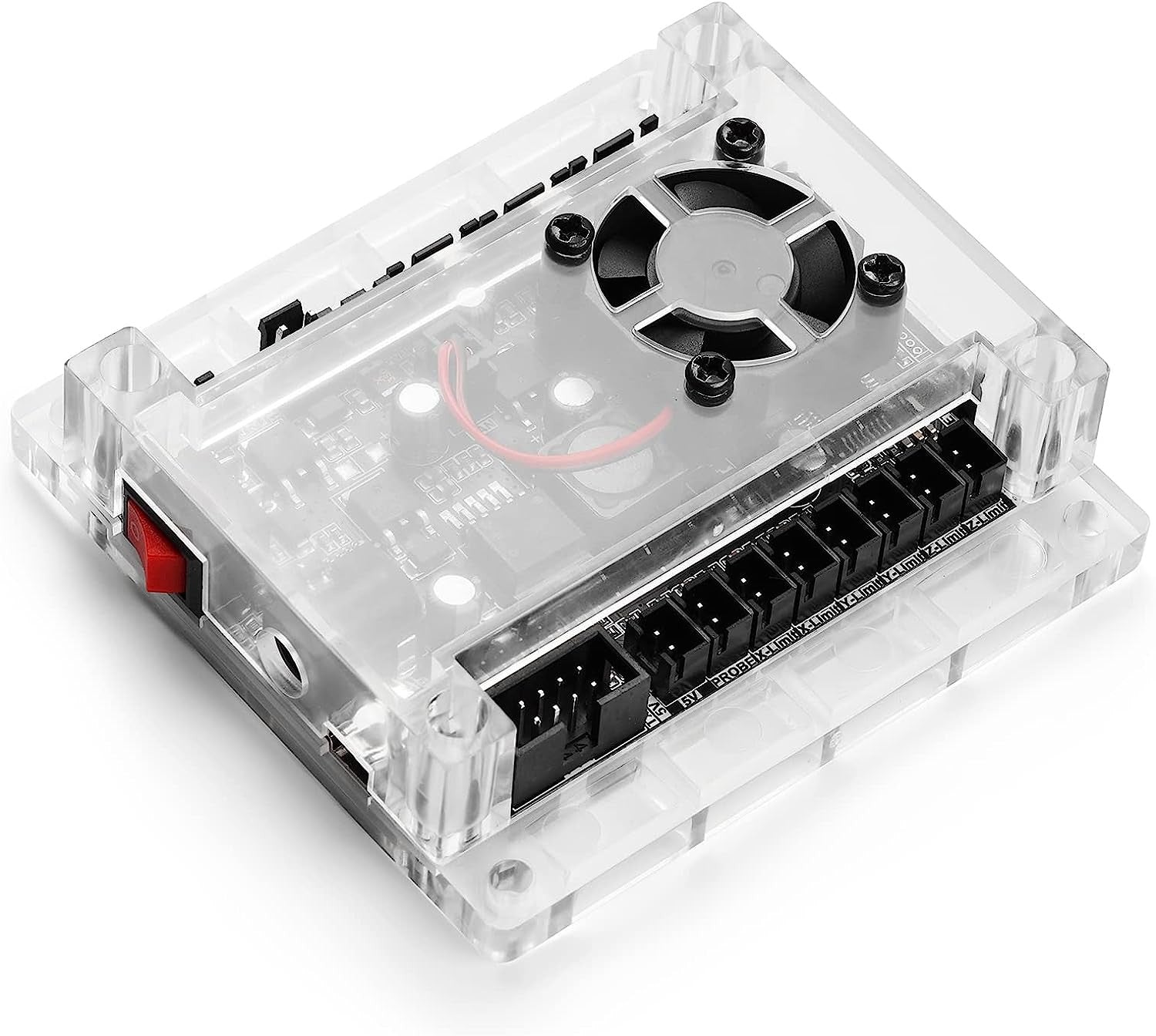

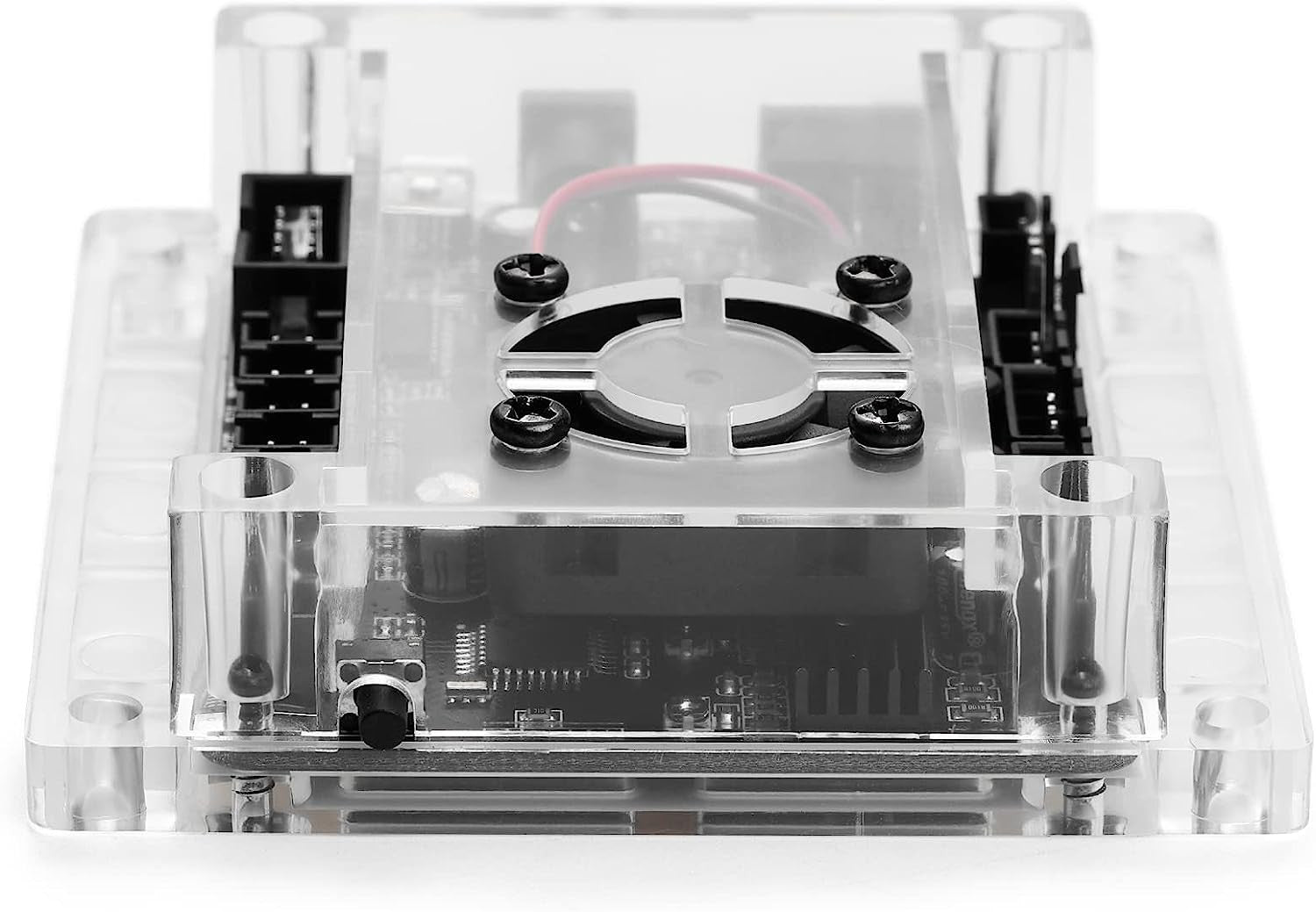

Product Name: GRBL Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO
Model Number: 101-60-284
Brand: SainSmart
Manufacturer Warranty: 1 Year



About this item

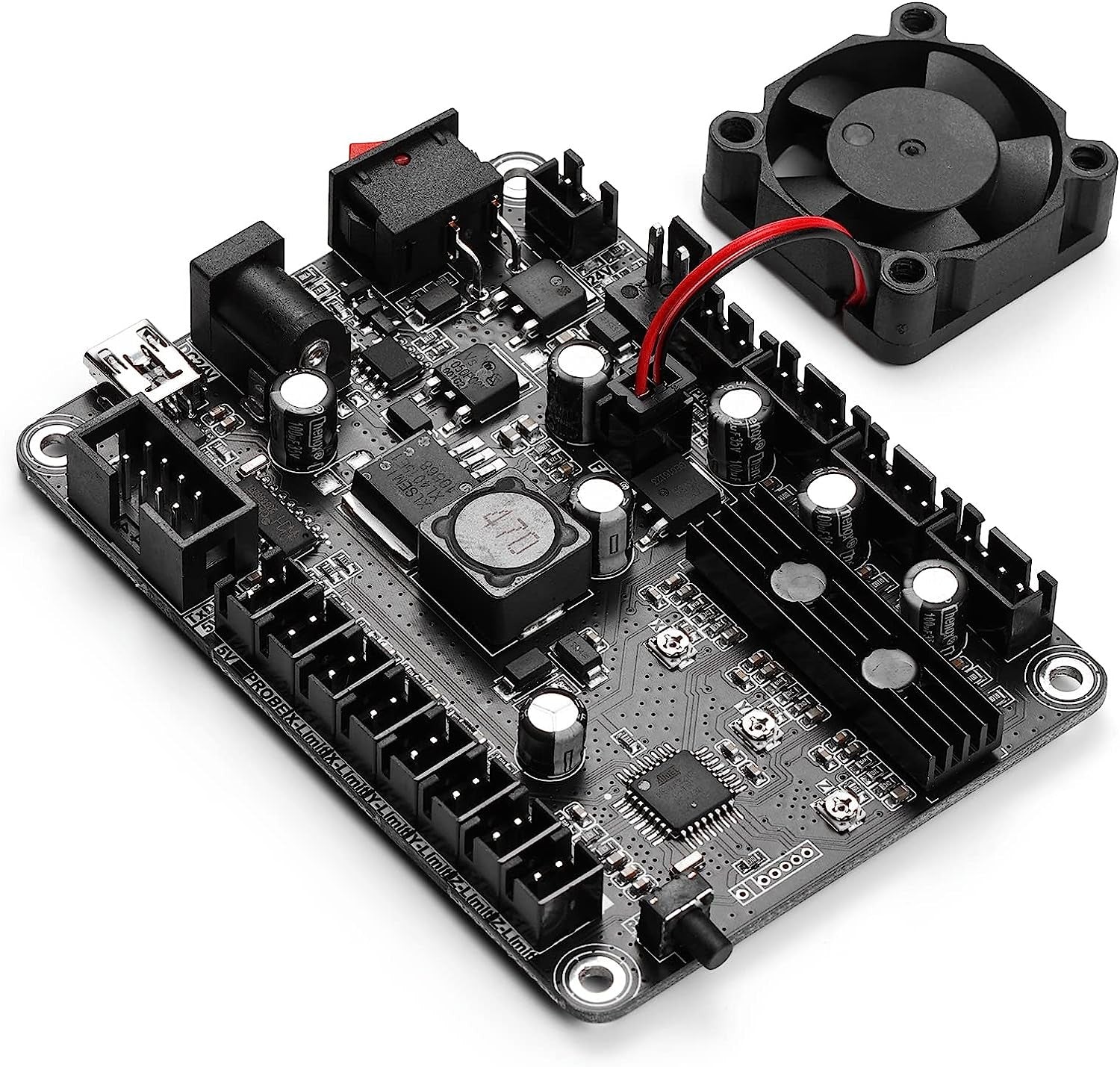

  • This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module.
  • Software: GRBL controller, UniversalGcodeSender.
  • Stepper motor drive: DRV8825; Spindle power: 150W; Input voltage: 24V (12-24V).
  • Support XYZ three-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").
  • Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).

Product Description


Parameters:
Support Laser engraving.
Support spindle PWM speed control.

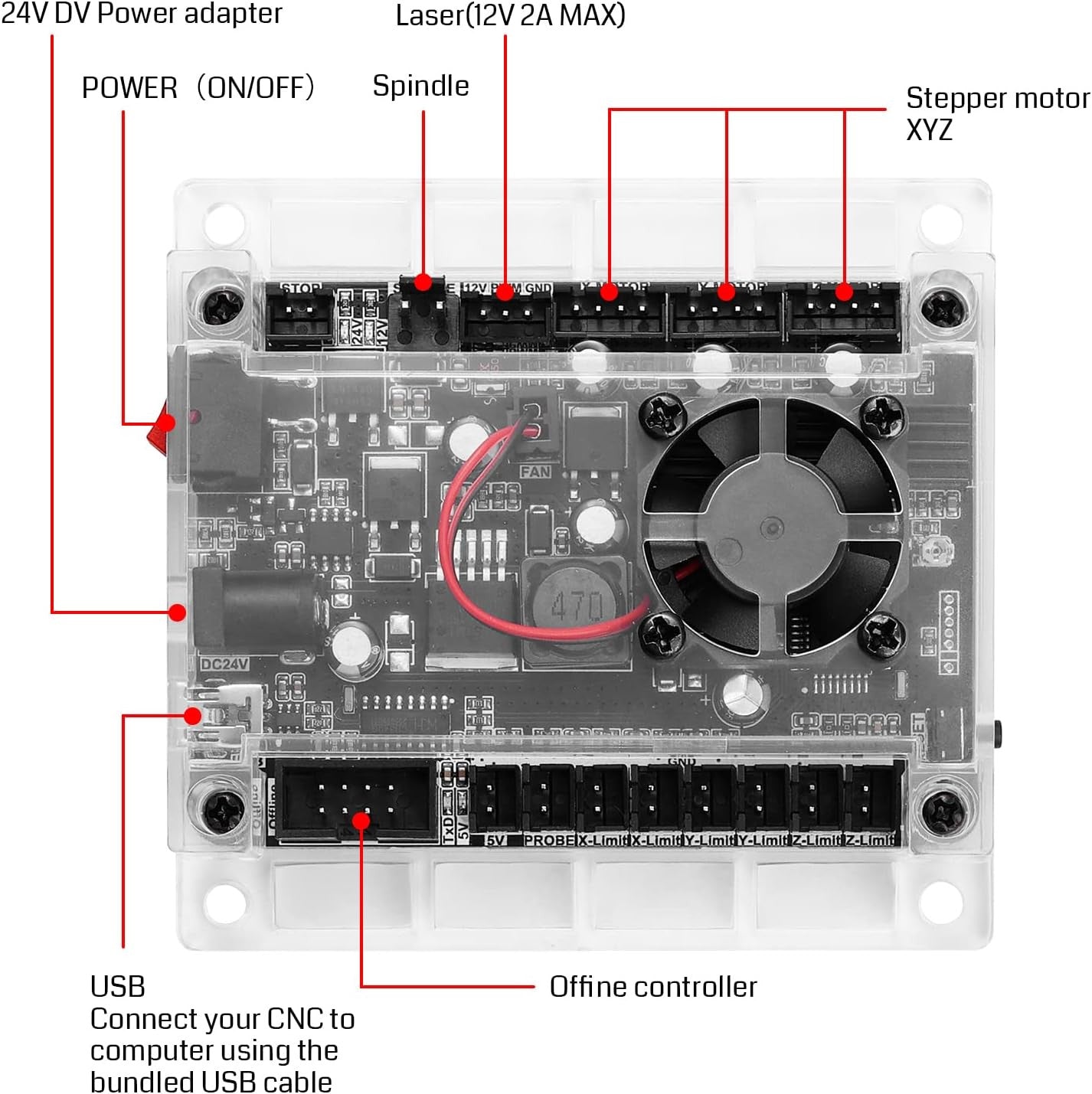

Support XYZ triaxial control, spindle, laser module.

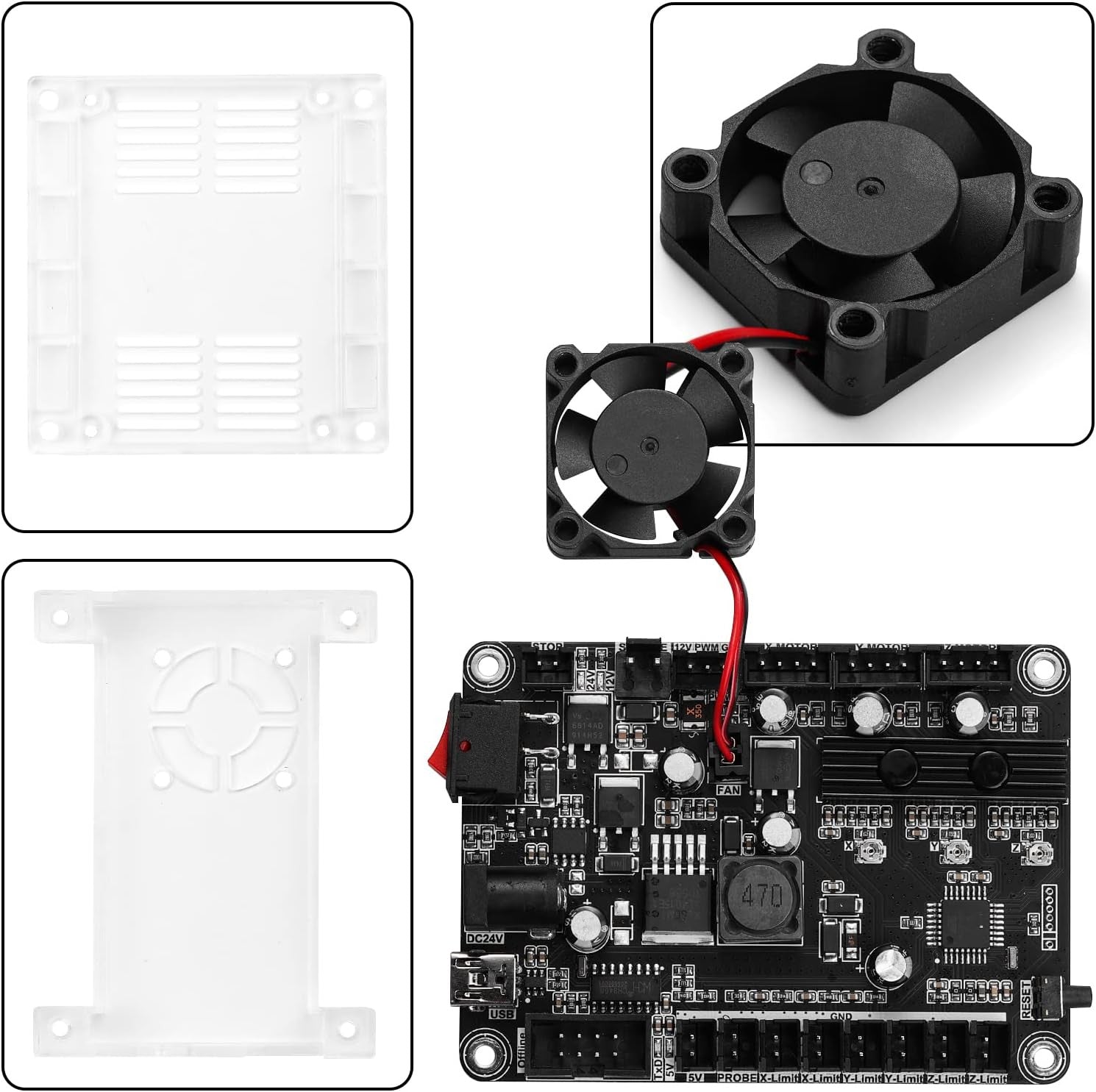

Connection for X-Y-Z end switches, built-in fan.
Connection for optional offline-controller.

Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A). It can be connected to a high-power spindle motor or the laser.
Spindle drive chip 2: MOSFET (current maximum 2A !!). Can only be connected within the 2A the laser module, the voltage 0-12V can be adjustable.

User Manual:

https://go.aws/37nvo3E

WHAT'S INCLUDED?

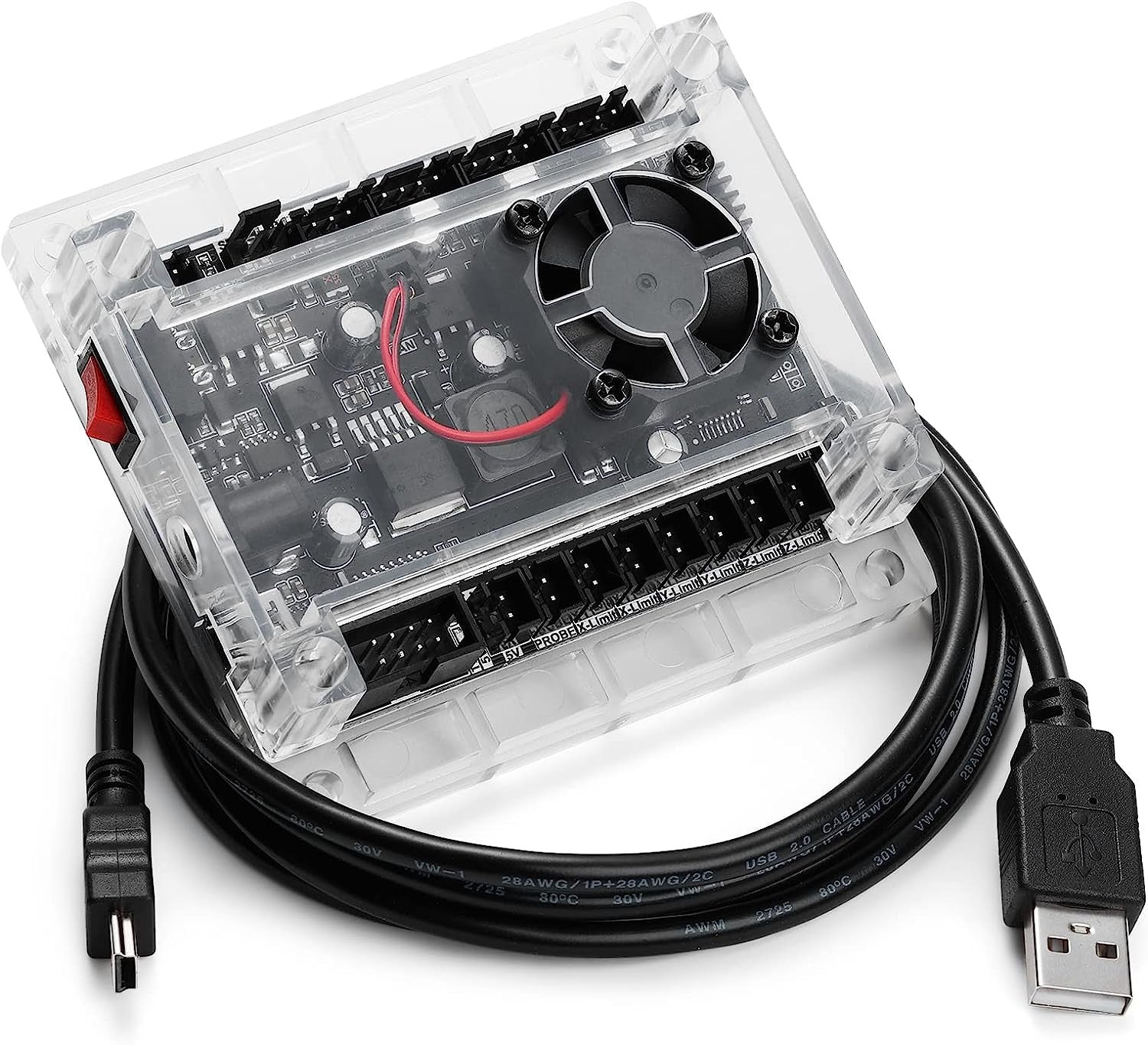

1 x Controller Board
1 x USB Cable
