Description
SPECIFICATIONS:

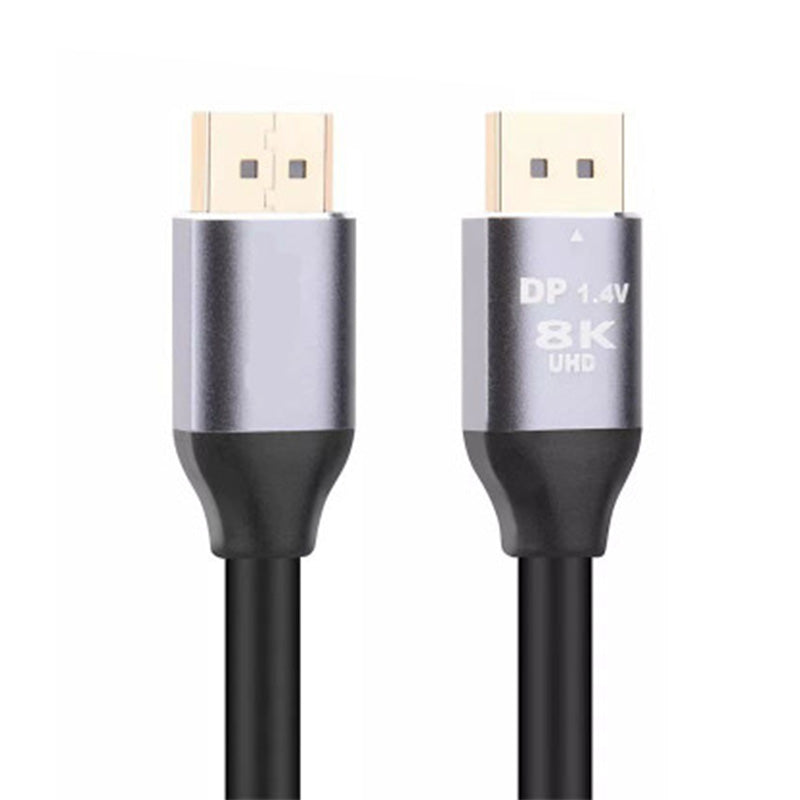

Connector Type |
DisplayPort to DisplayPort(Both ports are NOT HDMI, NOT USB) |
Backwards Compatible |
DisplayPort 1.3 / 1.2 / 1.1 / 1.1a / 1.0 |
Safety Certification |
FCC / CE / PSE / RoHS |
Bandwidth |
32.4 Gbps, Supports HBR3 / HDCP 2.2 / HDCP1.4 / HDR / DPCP 1.0 / DP++ / Stereoscopic 3D video / Multi-stream transport (MST) / DSC; Supports: FEC Forward Error Correction and maximum 32 audio channels |
Note |
The 20th pin is inactive to reduce the risk of short circuit |
Resolution and Refresh Rate Supported |
8K (7680 x 4320) @ 60Hz / 30Hz * 5K (5120 x 2880) @ 60Hz / 30Hz 4K (4096 x 2160) @ 144Hz / 120Hz/60Hz/30Hz 2K (2560 x 1440) @ 240Hz / 165Hz/144Hz/120Hz/60Hz/30Hz 1080p (1920 x 1080) @ 240Hz / 165Hz/144Hz/120Hz/60Hz/30Hz |
3 Types of Display Mode |
Mirror Mode: makes your holiday photos and favorite films much more interesting and enjoyable on the big screen. Extended Mode: optimizes work productivity with one or multiple monitors simultaneously. MST Modeprovides an ultra-wide viewing experience |
