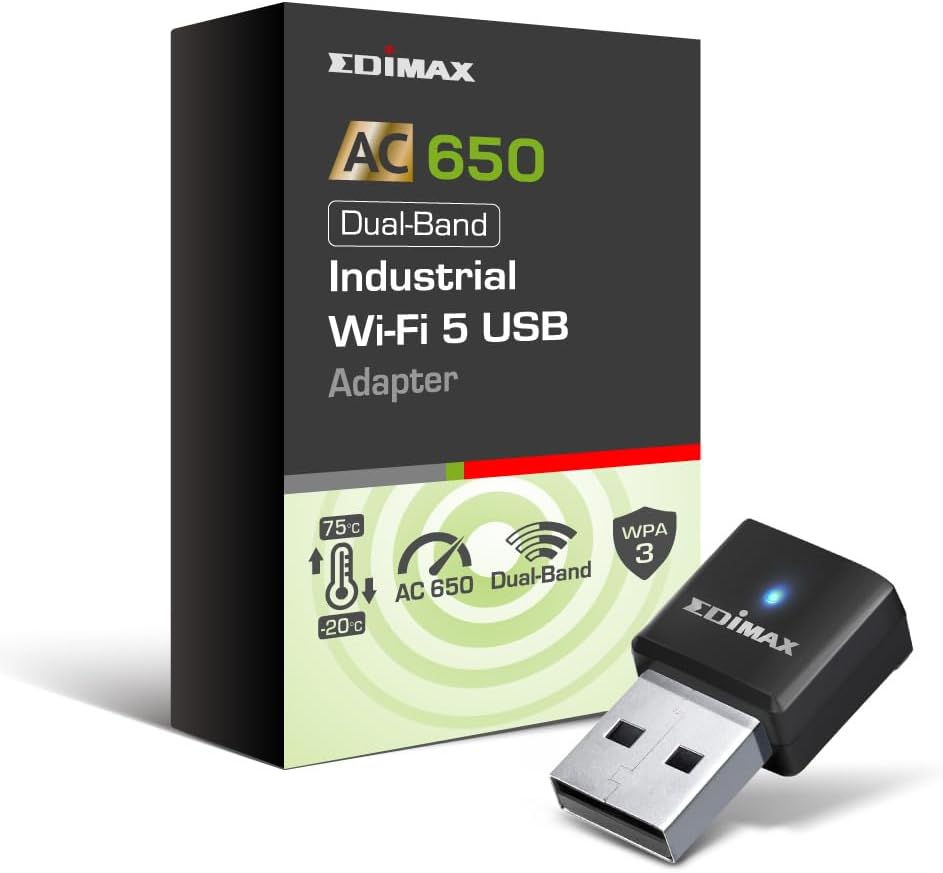

Industrial AC650 Wi-Fi 5 Dual-Band USB Adapter IEW
Roll over image to zoom in Click on image to zoom
Industrial AC650 Wi-Fi 5 Dual-Band USB Adapter IEW

Industrial AC650 Wi-Fi 5 Dual-Band USB Adapter IEW

Industrial
Price:
$68.60

Description

Industrial AC650 Wi-Fi 5 Dual-Band USB Adapter

IEW-7811UTC

  • AC650 Wi-Fi 5: Maximum data transfer rate up to 433Mbps (5GHz) and 200Mbps (2.4GHz)
  • Dual-Band Selectivity: Selectable 2.4GHz and 5GHz band. Switch anytime for smooth and stable Wi-Fi connection
  • Wide Temperature Range: Operating temperature ranges from -20°C to 75°C (-4°F to 167°F) for extreme environments
  • Secure Wi-Fi : High level Wi-Fi security supported with WPA3-SAE (Personal), WPA2, WPA, WEP, 802.1x
  • Wide Compatibility : Works with 802.11a/b/g/n/ac Wi-Fi router/AP/extender
  • Supported OS: Windows and Linux
  • Application: Ideal to use in outdoor low or high temperature environments, indoor rooms with heat dissipation difficulties and embedding in devices with limited space

SPECIFICATIONS

HARDWARE
Interface 1 x USB 2.0 Type A
LED Indicator 1 x Link/Activity LED
Antenna 1 x Internal PIFA Antenna (1T1R)
Dimensions 27.95(L) x 16.03(W) x 10.56(H) mm
(1.10(L) x 0.63(W) x 0.42(H) inches)
Weight 3g (0.106 ounces)
WIRELESS
Standard
  • 2.4GHz: IEEE 802.11b/g/n
  • 5GHz: IEEE 802.11a/n/ac
Frequency Band
  • 2.4GHz: 2.4000~2.4835GHz
  • 5GHz: 5.150~5.825GHz
*Subject to local regulations.
Maximum Data Rate / Speed
  • 11a: Up to 54Mbps
  • 11b: Up to 11Mbps
  • 11g: Up to 54Mbps
  • 11n (2.4GHz): Up to 200Mbps
  • 11ac (5Gz): Up to 433Mbps
Transmit Power 2.4GHz:
  • 11b(11Mbps): 17.8±1.5dBm
  • 11g(54Mbps): 15.8±1.5dBm
  • 11n(20MHz, MCS7): 14.8±1.5dBm
  • 11n(40MHz, MCS9): 12.8±1.5dBm
5GHz:
  • 11a(54Mbps): 15.5±1.5dBm
  • 11n(20MHz, MCS7): 16.5±1.5dBm
  • 11n(40MHz, MCS7): 14.5±1.5dBm
  • 11ac(80MHz, MCS9): 12.5±1.5dBm
Receive Sensitivity 2.4GHz:
  • 11b(11Mbps): -93±2dBm
  • 11g(54Mbps): -70±2dBm
  • 11n(20MHz, MCS7): -68±2dBm
  • 11n(40MHz, MCS9): -59±2dBm

5GHz:
  • 11a(54Mbps): -67±2dBm
  • 11n(20MHz, MCS7): -65±2dBm
  • 11n(40MHz, MCS7): -57±2dBm
  • 11ac(80MHz, MCS9): -54±2dBm
Security
  • WPA3-SAE (Personal), WPA2, WPA, WEP, 802.1x
  • Software WPS (Wi-Fi Protected Setup. Driver installation and WPS supported Wi-Fi device are required.)
OTHERS
Supported Operating System
  • Windows 10/11
  • Linux: Kernel 2.6.18~5.11
*Additional version information may be announced on the EDIMAX website.
Environmental Condition Temperature:
  • Operating Temperature: -20~75°C (-4~167°F)
  • Storage Temperature: -25~80°C (-13~176°F)
Humidity:
  • Operating Humidity: 10~90% (Non-condensing)
  • Storage Humidity: Max. 95% (Non-condensing)
Certification CE, FCC
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
