Description
|

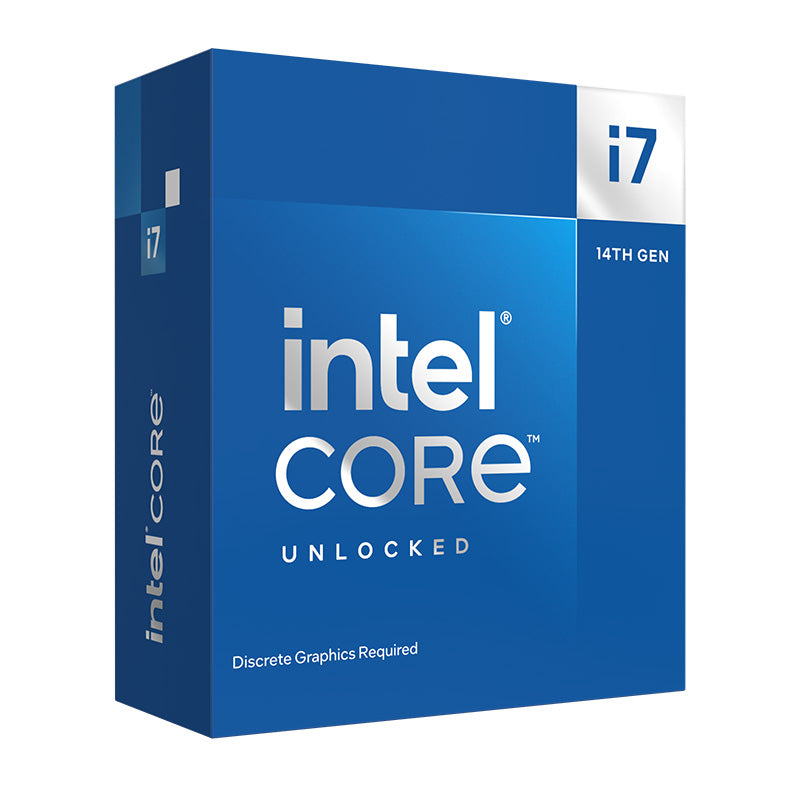

Product Name: Intel Core i7 14700KF 20 Core LGA 1700 CPU Processor
|
|
Model Number: BX8071514700KF
|
|
Brand: Intel
|
| Manufacturer Warranty: 3 Year |
SPECIFICATIONS:
|
ESSENTIALS |
|
|
Product Collection |
Intel® Core™ i7 Processors (14th gen) |
|
Code Name |
Products formerly RAPTOR LAKE |
|
Vertical Segment |
Desktop |
|
Processor Number |
i7-14700KF |
|
Lithography |
Intel 7 |
|
Use Conditions |
PC/Client/Tablet |
|
CPU SPECIFICATIONS |
|
|
Total Cores |
20 |
|
# of Performance-cores |
8 |
|
# of Efficient-cores |
12 |
|
Total Threads |
28 |
|
Max Turbo Frequency |
5.6 GHz |
|
Intel® Turbo Boost Max Technology 3.0 Frequency * |
5.6 GHz |
|
Performance-core Max Turbo Frequency |
5.5 GHz |
|
Efficient-core Max Turbo Frequency |
4.3 GHz |
|
Performance-core Base Frequency |
3.4 GHz |
|
Efficient-core Base Frequency |
2.5 GHz |
|
Cache |
33 MB Intel® Smart Cache |
|
Total L2 Cache |
28 MB |
|
Processor Base Power |
125 W |
|
Maximum Turbo Power |
253 W |
|
SUPPLEMENTAL INFORMATION |
|
|
Embedded Options Available |
No |
|
MEMORY SPECIFICATIONS |
|
|
Max Memory Size (dependent on memory type) |
192 GB |
|
Memory Types |
Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
|
Max # of Memory Channels |
2 |
|
Max Memory Bandwidth |
89.6 GB/s |
|
ECC Memory Supported * |
Yes |
|
EXPANSION OPTIONS |
|
|
Direct Media Interface (DMI) Revision |
4.0 |
|
Max # of DMI Lanes |
8 |
|
Scalability |
1S Only |
|
PCI Express Revision |
5.0 and 4.0 |
|
PCI Express Configurations * |
Up to 1x16+4, 2x8+4 |
|
Max # of PCI Express Lanes |
20 |
|
PACKAGE SPECIFICATIONS |
|
|
Sockets Supported |
FCLGA1700 |
|
Max CPU Configuration |
1 |
|
Thermal Solution Specification |
N/A |
|
TJUNCTION |
100°C |
|
Package Size |
45.0 mm x 37.5 mm |
|
ADVANCED TECHNOLOGIES |
|
|
Intel® Gaussian & Neural Accelerator |
3.0 |
|
Intel® Thread Director |
Yes |
|
Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
|
Intel® Speed Shift Technology |
Yes |
|
Intel® Turbo Boost Max Technology 3.0 * |
Yes |
|
Intel® Turbo Boost Technology * |
2.0 |
|
Intel® Hyper-Threading Technology * |
Yes |
|
Intel® 64 * |
Yes |
|
Instruction Set |
64-bit |
|
Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
|
Idle States |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel® Volume Management Device (VMD) |
Yes |
|
SECURITY & RELIABILITY |
|
|
Intel® Standard Manageability (ISM) * |
Yes |
|
Intel® Control-Flow Enforcement Technology |
Yes |
|
Intel® AES New Instructions |
Yes |
|
Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Execute Disable Bit * |
Yes |
|
Intel® Boot Guard |
Yes |
|
Mode-based Execute Control (MBEC) |
Yes |
|
Intel® Virtualization Technology (VT-x) * |
Yes |
|
Intel® Virtualization Technology for Directed I/O (VT-d) * |
Yes |
|
Intel® VT-x with Extended Page Tables (EPT) * |
Yes |
|
OTHERS |
|
|
Notes |
* This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration. Some products can support AES New Instructions with a Processor Configuration update, in particular, i7-2630QM/i7-2635QM, i7-2670QM/i7-2675QM, i5-2430M/i5-2435M, i5-2410M/i5-2415M. Please contact OEM for the BIOS that includes the latest Processor configuration update. |
