Description

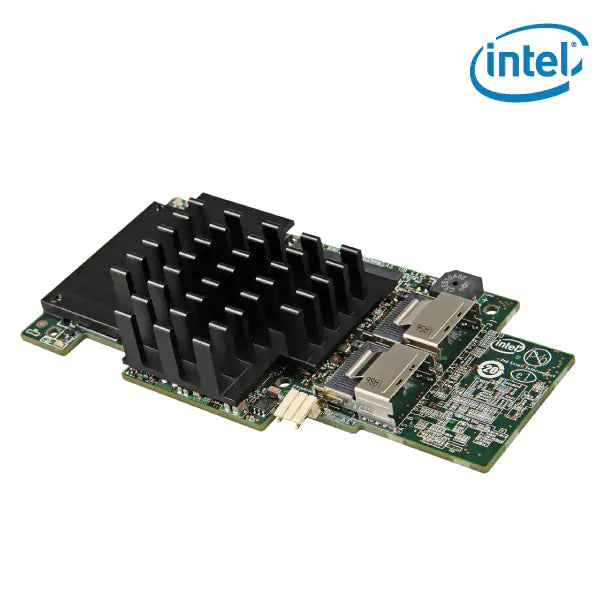

| Included Items | Intel® Integrated RAID Module RMS25CB040, SIOM Connector, LSI2208 ROC, 4P Internal SAS, MegaRAID SWStack, 1GB DDR3, R0,1,10,5,50,6,60 |
| Board Form Factor | Storage IO Slot Mezzanine Module |
| Data Transfer Rate | 6 Gb/s |
| Supported Devices | SAS/SATA |
| Supported Operating Systems | Windows, Linux, VMWare (see THOL) |
| Compatible Battery Backup Options | Intel® RAID Smart Battery AXXRSBBU9 and Intel® RAID Maintenance Free Backup AXXRMFBU2 |
| RAID Level Supported | 0, 1, 5, 6, 10, 50, 60 |
| # of Ports Internal | 4 |
| # of Ports External | 0 |
| # of Devices Supported | 128 |
| Embedded Memory | 1 GB |
| PCIe Host Interface | PCI Express 2 x8 |
| IO Processor Model | LSI2208 |
| Included Items | RAID Controller module, Quick Start User Guide, Mounting standoffs. Note: Cables sold separately |
| Extended Warranty Available for Purchase (Select Countries) | No |
