ESSENTIALS
|
|
|
Product Collection
|
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
|
|
Code Name
|
Products formerly Wall Street Canyon
|
|
Supported Operating Systems
|
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS*
|
|
Board Number
|
NUC12WSBi3
|
|
Board Form Factor
|
UCFF (4" x 4")
|
|
Socket
|
Soldered-down BGA
|
|
Internal Drive Form Factor
|
M.2 SSD
|
|
# of Internal Drives Supported
|
2
|
|
TDP
|
20 W
|
|
DC Input Voltage Supported
|
12-20 VDC
|
|
Processor Included
|
Intel® Core™ i3-1220P Processor (12M Cache, up to 4.40 GHz)
|
|
Total Cores
|
10
|
|
Total Threads
|
12
|
|
Lithography Intel
|
7
|
|
Max Turbo Frequency
|
4.40 GHz
|
|
SUPPLEMENTAL INFORMATION
|
|
|
Embedded Options Available
|
No
|
|
MEMORY & STORAGE
|
|
|
Max Memory Size (dependent on memory type)
|
64 GB (not included)
|
|
Memory Types
|
DDR4-3200 1.2V SODIMMs
|
|
Max # of Memory Channels
|
2
|
|
Max # of DIMMs
|
2
|
|
ECC Memory Supported
|
No
|
|
PROCESSOR GRAPHICS
|
|
|
Integrated Graphics
|
Yes
|
|
Graphics Output
|
2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
|
|
# of Displays Supported
|
4
|
|
EXPANSION OPTIONS
|
|
|
PCI Express Revision
|
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
|
|
PCI Express Configurations
|
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
|
|
M.2 Card Slot (wireless)
|
22x30 (E)
|
|
M.2 Card Slot (storage)
|
22x80 NVMe (M); 22x42 SATA (B)
|
|
I/O SPECIFICATIONS
|
|
|
# of USB Ports
|
4
|
|
USB Configuration
|

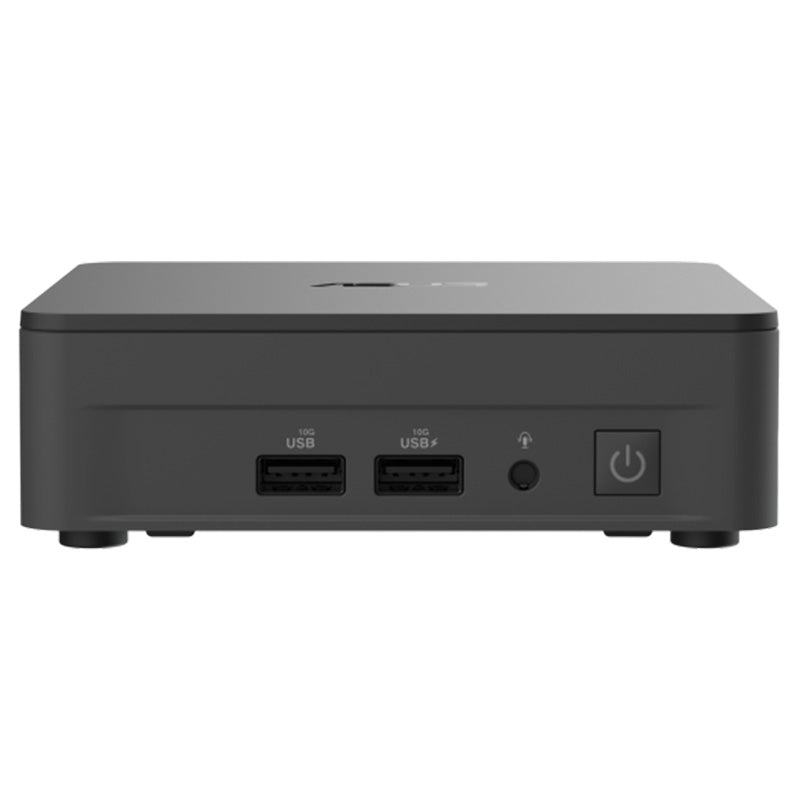

Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
|
|
Serial Port via Internal Header
|
No
|
|
Audio (back channel + front channel)
|
Front panel: 3.5mm headphone/mic jack
|
|
Integrated LAN
|
Intel® Ethernet Controller i225-V
|
|
Integrated Wireless
|
Intel® Wi-Fi 6E AX211(Gig+)
|
|
Integrated Bluetooth
|
Yes
|
|
Additional Headers
|
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
|
|
# of Thunderbolt™ Ports
|
2x Thunderbolt™ 4
|
|
PACKAGE SPECIFICATIONS
|
|
|
Chassis Dimensions
|
117 x 112 x 37 [mm] (LxWxH)
|
|
ADVANCED TECHNOLOGIES
|
|
|
Intel® Optane™ Memory Supported
|
No
|
|
Intel® Virtualization Technology for Directed I/O (VT-d)
|
Yes
|
|
Intel® ME Firmware Version
|
16
|
|
Intel® HD Audio Technology
|
Yes
|
|
Intel® Virtualization Technology (VT-x)
|
Yes
|
|
Intel® Platform Trust Technology (Intel® PTT)
|
Yes
|
|
SECURITY & RELIABILITY
|
|
|
Intel® AES New Instructions
|
Yes
|
