Description
|

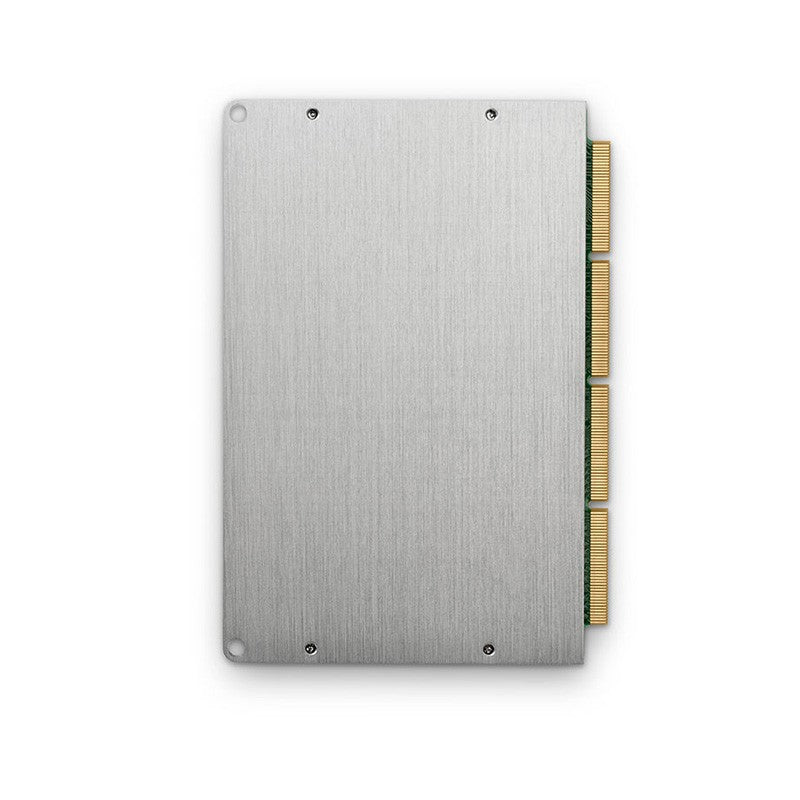

Product Name: Intel NUC 8 Compute Element CM8i3CB with Intel Core i3-8145U - No Chassis
|
|
Model Number: BKCM8I3CB4N
|
|
Brand: Intel
|
| Manufacturer Warranty: 3 Year- |
FLEXIBLE AND MODULAR DESIGN
With minimal R&D time, Intel® NUC Elements enable you to design integrated systems for digital signage, kiosks, cameras, and other deployments. Or, easily build a rugged solution for harsh environments. Compact and powerful, the Intel NUC Compute Element along with Intel NUC Chassis Elements (sold separately), deliver the flexibility of modular computing—so you can create custom solutions to fit your clients’ exact needs.
The Intel® NUC Element family is a system of modular components that let you create small, high performance solutions for a range of vertical usages.
The modular design of Intel® NUC Elements simplifies serviceability and makes upgrading your customers’ systems easier.
Innovated and designed by Intel to eliminate the research and development time of systems for new usages and verticals.
THE CORE OF YOUR SYSTEM

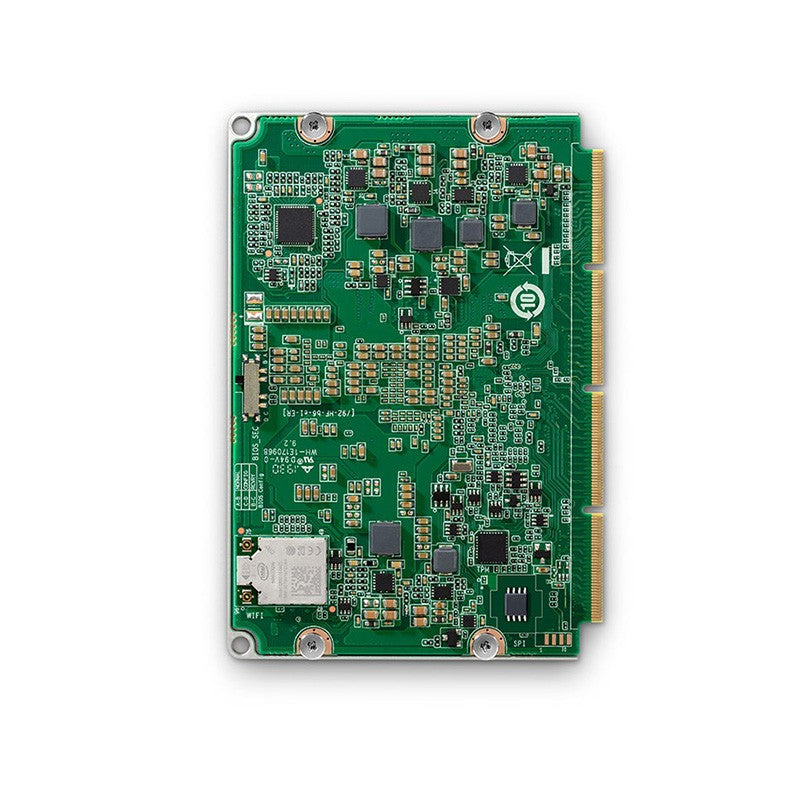

The Intel® NUC 8 Compute Element is the heart of your PC and gives you the performance you need with modern day advanced technologies and connectivity. It comes with processor, memory and all the I/O you need in a tiny package.
Intel® Core™ i3-8145U Processor
2.1 GHz – 3.9 GHz Turbo, 2 Core, 4 Thread, 4MB Cache, 15W
4GB LPDDR3 Memory
Soldered-down, Dual-channel Memory
Intel® UHD Graphics 620
300 MHz - 1000 MHz
Designed to Innovate, Built to Integrate
The design simplification of Intel NUC Element products gives you the flexibility to use these modular components to create custom solutions with significantly reduced host system costs because the initial design work is done. Intel NUC Element can be integrated easily into more devices and enable the ecosystem to create surprising new products (ODMs, device manufacturers, accessory manufacturers).
Build the Solution You Want, When You Want It
An entirely new way to design, build, and service high-performance, modular solutions, supported by a 3 year warranty. Intel is assisting clients with building custom designed solutions for the ecosystems, without all the R&D legwork. With the performance and reliability you’ve come to expect from Intel, plus modular components, easy upgrades, remote management, and more, Intel NUC Elements provide one more example of how Intel-designed innovations are answering today’s toughest business challenges.
Easy to Upgrade, Easy to Service
The ability to swap out a component for upgrade makes the Intel NUC Elements a natural choice for your commercial and consumer customers. Whether you are an MSP remotely servicing business clients or a channel partner working with customers in the field, it’s simple to replace an Intel NUC Compute Element.
FLEXIBLE MODULAR COMPUTING
Here are some use-cases for the Intel® NUC 8 Compute Element when paired with an Intel NUC Chassis:
Intel® Compute Element in a Boardroom as a Meeting Room PC
- Ability to upgrade the compute without having to replace the entire device.
- Standardised deployment procedure and specification across meeting room fleet.
- Minimise downtime and service the compute in seconds with a simple replacement.
Intel® Compute Element in an Embedded Solution
- Ability to upgrade the compute without having to replace the entire device.
- Longer deployment lifetime with upgradable compute modular.
- Minimise downtime and service the compute in seconds with a simple replacement.
Intel® Compute Element used within a Kiosk, Smart Board or Digital Signage
- Able to upgrade the compute without having to replace the screen.
- Lower costs with no need for custom designed circuit boards.
- Minimise downtime and service the compute in seconds with a simple replacement.
WHY CHOOSE AN INTEL® NUC?
The benefits of the Intel® NUC 8 Compute Element and are their size, flexibility, and I/0, which make it easy to create small, custom solutions.
Embedded Wireless-AC
A soldered-down Intel® Wireless-AC 9560 chip provides 802.11ac 2x2 1.73Mbps WiFi and Bluetooth® 5.
Backed by a 3 Year Warranty
Intel® NUC is the only mini PC platform engineered, manufactured, and backed by Intel. Every Intel® NUC comes with a three-year warranty and 24/7 support from Intel.
24x7 Reliability
The Intel® NUC 8 Element features no moving parts and is qualified for 24x7 operation ensuring your solution is reliable.
Small Dimensions offer Flexibility

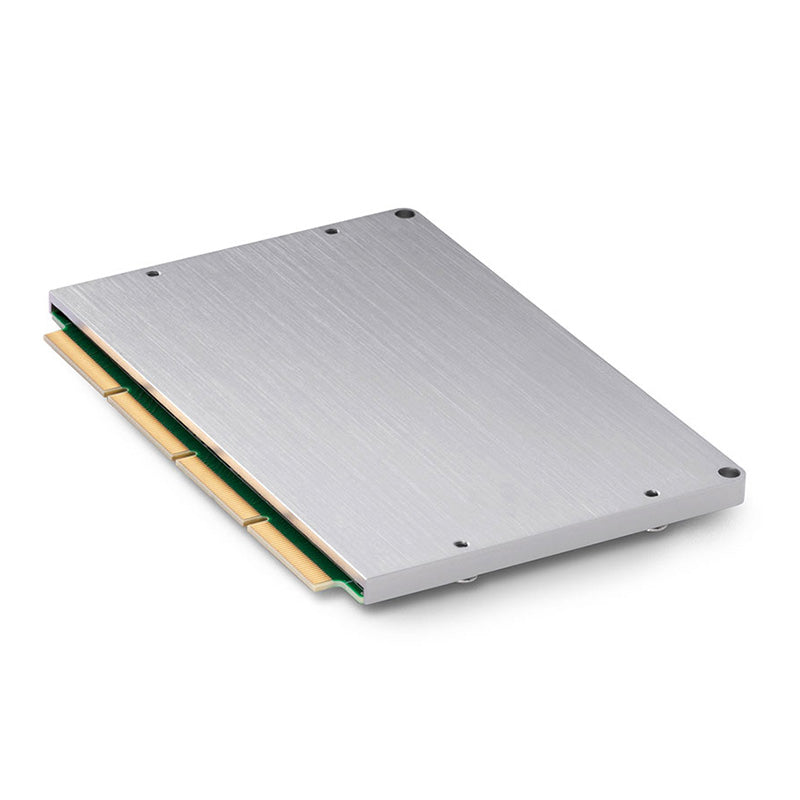

The Intel® NUC 8 Compute Element measures 95 x 65 x 6 mm which allows it to be installed in many small devices.
HOW TO GET STARTED
Start with an Intel® NUC 8 Compute Element, featuring the right Intel processor to meet your needs. Then plug it into an Intel® NUC Board Element, and integrate it into your solution. Or, create a complete solution by dropping the Intel NUC Compute Element into an Intel® NUC Rugged Chassis Element for harsh environments. Intel® NUC Rugged Chassis Elements have integrated boards you can choose based on your needs.
The modularity of Intel NUC Elements lets you drive innovation and push the boundaries of where and how computing can enrich life.
*Intel® NUC Board Element & Intel® NUC Rugged Chassis Element sold separately.
SPECIFICATIONS
Essentials
Product Collection
Intel® NUC Compute Elements
Status
Launched
Launch Date
Q4'19
Board Form Factor
U-Series Compute Element (95 x 65 x 6 mm)
Processor Included
Intel® Core™ i3-8145U Processor
# of Cores
2
# of Threads
4
Processor Base Frequency
2.10 GHz
Max Turbo Frequency
3.90 GHz
Warranty Period
3 Years
Memory & Storage
Included Memory
4GB
Memory Types
LPDDR3-2133
Max # of Memory Channels
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel® UHD Graphics 620
Integrated Graphics
Yes
Graphics Output
2x DDI (configurable as DP/HDMI), 1x eDP
# of Displays Supported
3
Expansion Options
PCI Express Configurations
1x PCIe x4 Gen 3 (NVMe/SATA)
1x PCIe x4 Gen 3 (NVMe)
1x PCIe x1 Gen 3
I/O Specifications
USB Configuration
4x USB 3.2 Gen 2, 3x USB 2.0
Integrated LAN
Built-in GbE MAC (for i219 PHY)
Integrated Wireless
Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth
Yes
Additional Headers
HD Audio, DMIC, eSPI
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® vPro™ Platform Eligibility
No
Intel® Virtualization Technology (VT-x)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
Intel® Trusted Execution Technology
No
All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided "as-is" and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.
