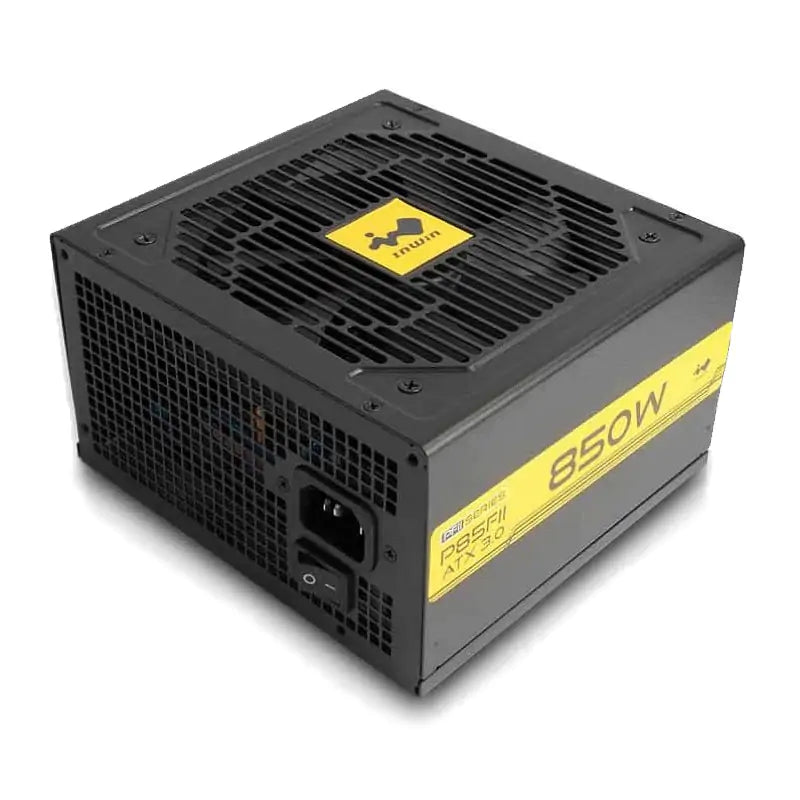

Inwin 850W PFII Series 80+ Gold ATX 3.0 Power Supply (IW-PS-PFII850W)

Material

SECC

Type

ATX12V V3.0

Cable Management

Fixed Cables

PFC

Active PFC (> 0.95)

Efficiency

80 PLUS® Gold (Up to 90%)

MTBF (Hours)

> 100,000 hrs.

AC Input

100-240Vac, 12-6A, 50-60Hz

Fan

120mm Sleeve Bearing Fan

Typical Load Fan Noise(dBA) (50% Loading)

< 25dBA

Operating Temperature Range (°C)

0~40 °C

Full Protection

OCP/ OVP/ UVP/ SCP/ OTP/ OPP

Safety Certifications

cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK

Dimensions (L x W x H)

140 x 150 x 86 mm

Package Dimensions (L x W x D)

280 x 210 x 150 mm

Net Weight

2.3 kg

Gross Weight

2.37 kg

Connector

24 Pin   Motherboard

8 (4+4) Pin   CPU

8 (6+2) Pin   PCI-E

PCI-E 5.0   12VHPWR

4 Pin   Peripheral

SATA

Floppy

1

2

4

1(450W)

3

6

1
