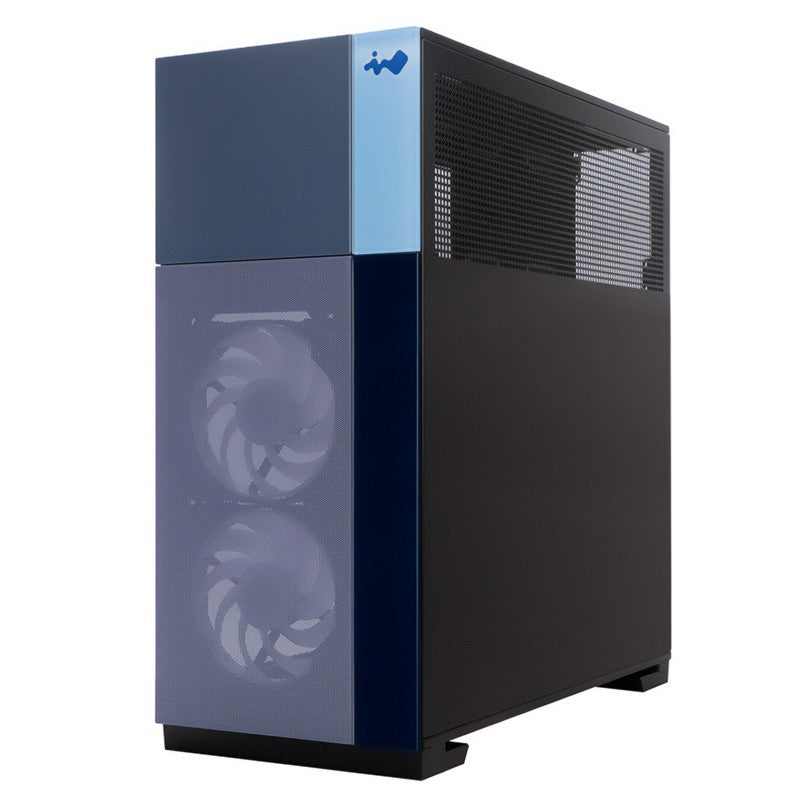

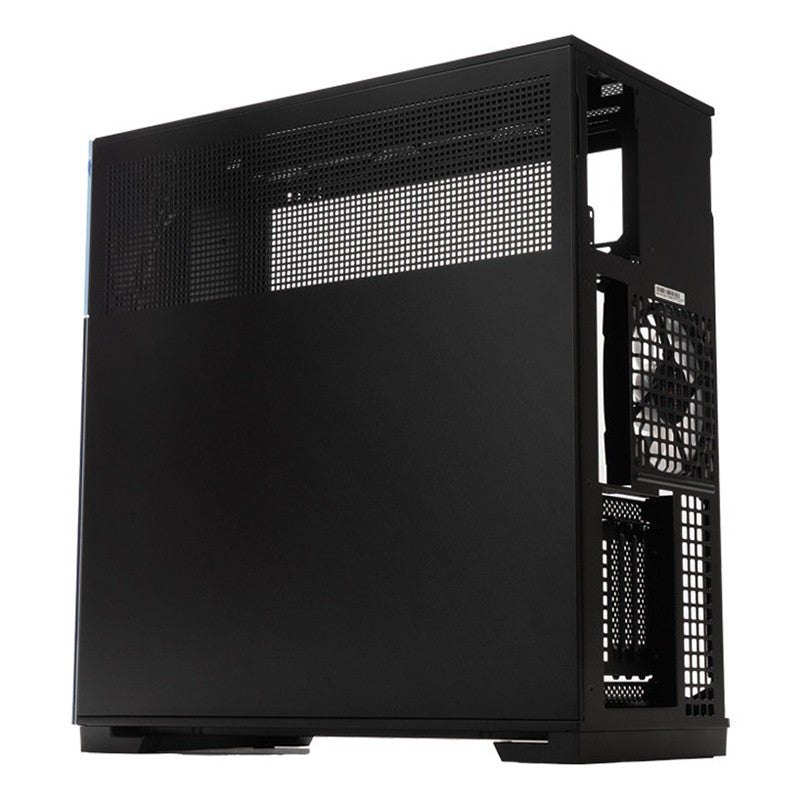

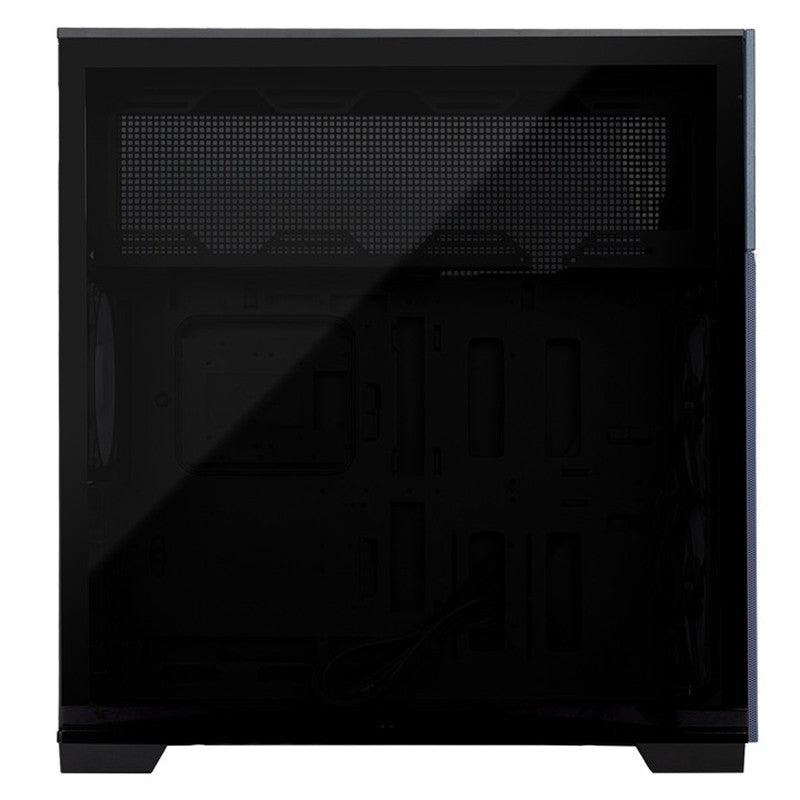

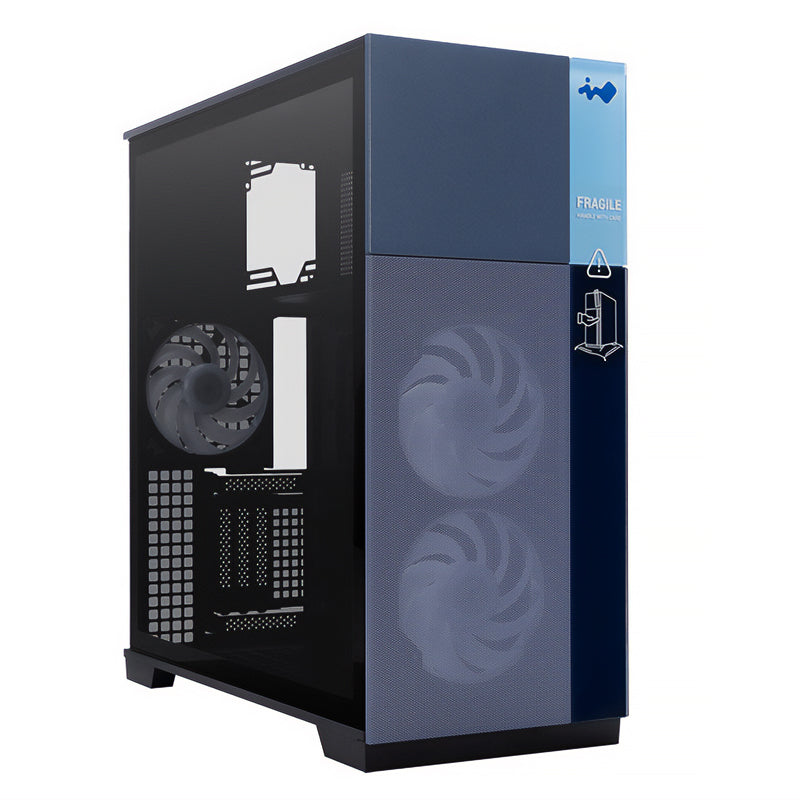

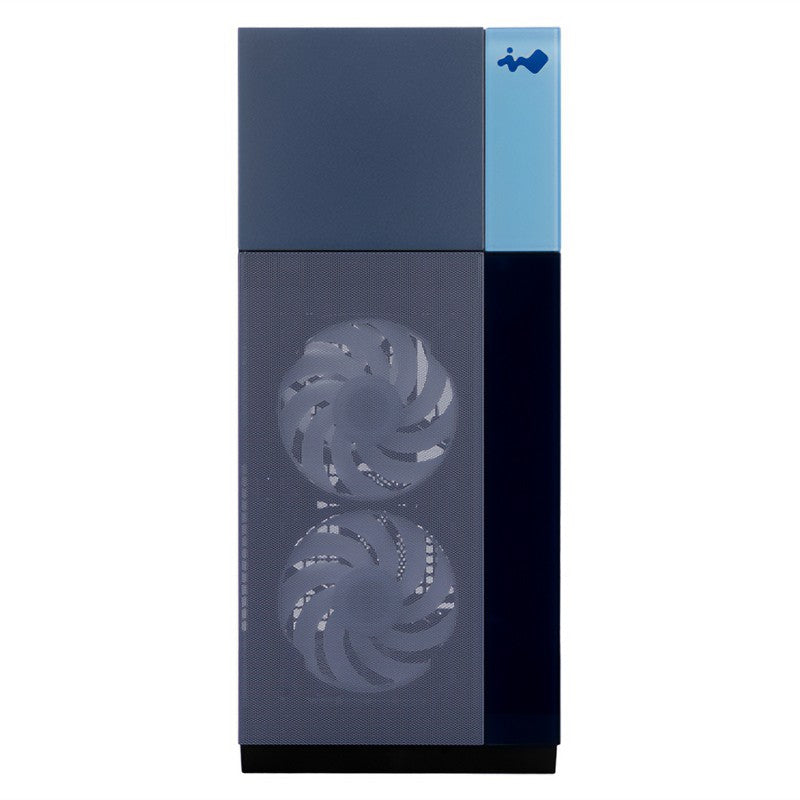

InWin F5 Full Tower E-ATX Case

Case Type

Full Tower

Materials

SECC, Tempered Glass

M/B Compatibility

12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX

Expansion Slots

8 x PCI-E

3x Vertical PCI-E

(Riser Cable Not Included in Package)

Maximum Compatibility

GPU Length: 410 - 435 mm

CPU Heatsink Height: 180 mm

I/O Ports

1 x USB 3.2 Gen 2x2 Type-C

2 x USB 3.2 Gen 1

HD Audio Combo (CTIA – SPK/Mic)

Internal Drive Bays

2 x 3.5" / 4 x 2.5"

2 x 2.5"

Thermal Solution Compatibility

Air Cooling Fans:

Front: 2 x 120 / 140 mm

Top: 3 x 120 / 140 mm

Rear: 1 x 120 / 140 mm

Bottom: 3 x 120 / 140 mm

(3 InWin AN140 Fans Included)

Water Cooling Radiator:

Front: 1 x 240 / 280 mm

Top: 1 x 360 / 420 mm

Bottom: 1 x 360 / 420 mm

Power Supply Compatibility

PSII: ATX12V

- Length up to 230 mm

Product Dimensions (L x W x H)

510 x 235 x 543 mm

20 x 9.2 x 21.3"

Package Dimensions (L x W x H)

653 x 600 x 355 mm

25.7 x 23.6 x 13.9"

Net Weight

Black : 10.73 kg /23.6 lbs

Gross Weight

Black : 12.9 Kg / 28.4 lbs
