Description

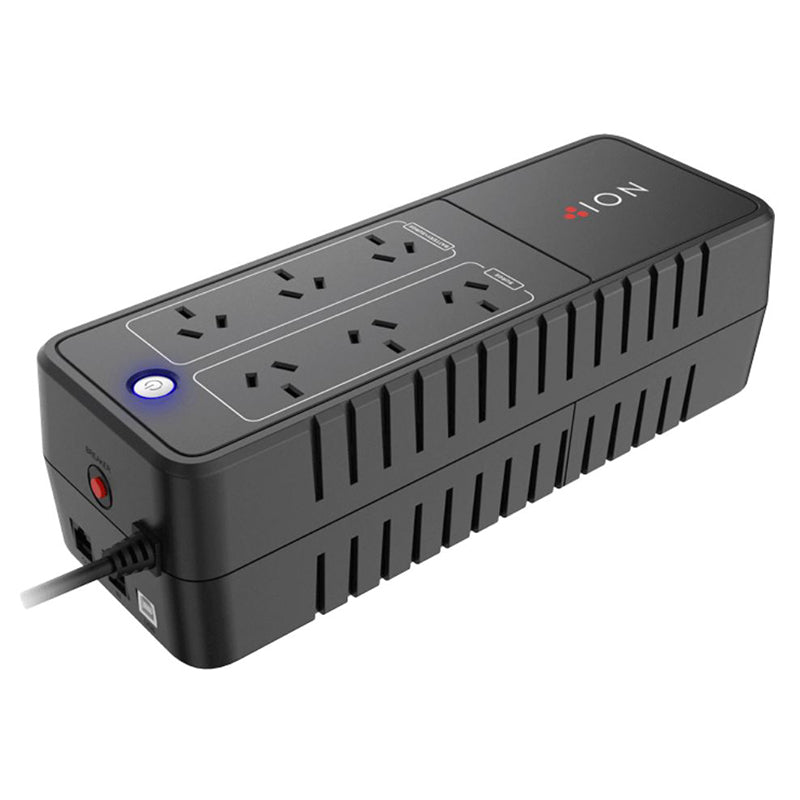

ION F10 6 Outlet 850VA Power Board UPS
Compact Solution
Fanless Technology
Supports APFC Equipment
Auto-Restart/Auto-Charge
Cold Start Function on battery Mode
Intelligent LED Indicator
USB Communication Port & RJ-11/RJ-45 Protection
Wall mountable
SPECIFICATIONS:
Output Power Capacity |
490W/850VA |
Max Configurable Power |
490W/850VA |
Nominal Voltage (Batt.mode) |
220-240Vac |
Frequency (Batt.mode) |
50/60±1% Hz |
Waveform (Batt.mode) |
Simulated Sinewave |
THDv |
≤ 3% @ linear load, ≤5%@non-linear load |
Transfer Time |
4ms typical |
Overload Protection |
Circuit breaker or inner firmware protection |
Input | |
Nominal Input Voltage |
220-240Vac |
Voltage Range |
180-270Vac |
Frequency |
50/60Hz (Auto sensing) |
Indicators | |
Display |
LED |
Alarm |
Batt. Mode, low battery, overload, fault, etc. |
Battery | |
Battery Voltage |
12V |
Battery Type |
5.6AH |
Total Battery Quantity |
1 |
Recharge Time (to 90%) |
8H |
Charger Current |
0.7A |
UPS Physical | |
Maximum Height |
90mm |
Maximum Width |
110mm |
Maximum Depth |
309mm |
Net Weight |
3kg |
Communication | |
USB |
Yes |
RJ 11/45 |
Yes |
Management | |
Auto Recharge |
Yes |
Auto Restart |
Yes |
Power Management Software |
Yes |
Environment | |
Operation Temperature |
0-40°C |
Operation Humidity |
0-90% non-condensing |
