Description
SPECIFICATIONS:
OUTPUT |
|
Output power capacity |
360Watts / 650VA |
Max Configurable Power (Watts) |
360Watts / 650VA |
Nominal Output Voltage |
230V |
Output Voltage Distortion |
Less than 5% at full load |
Output Frequency (sync to mains) |
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal |
Topology |
Line Interactive |

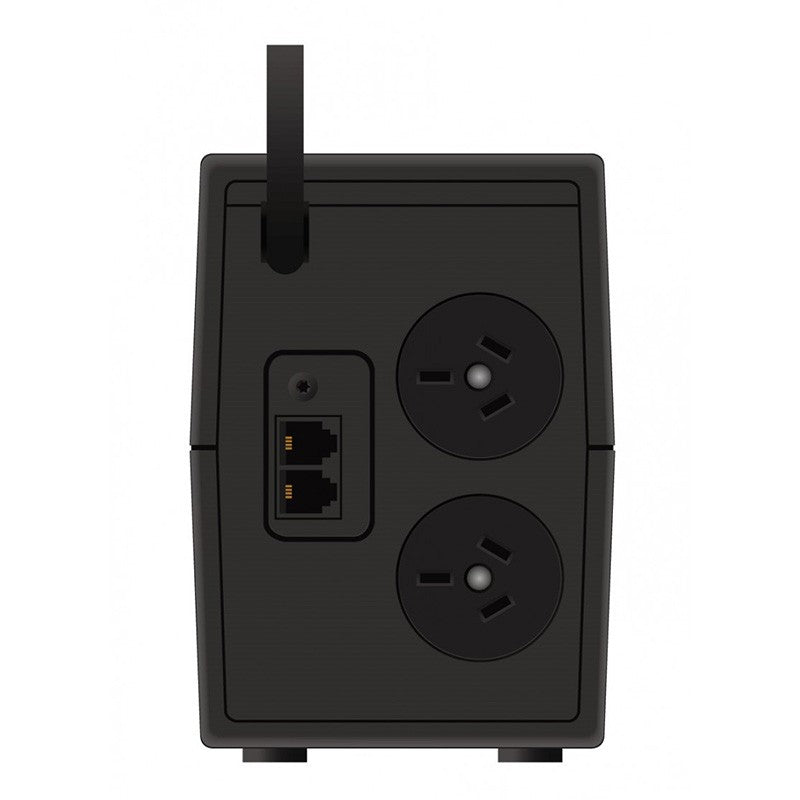

Output Connections |
(2) Australian 3 pin 10Amp |
Transfer Time |
2-4ms typical |
INPUT |
|
Nominal Input Voltage |
230V |
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections |
2m IEC to Australian 3 pin plug |
Input voltage range for main operations |
170 – 280V |
BATTERIES & RUNTIME |
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time |
3 hour(s) |
Expected Battery Life (years) |
3- 5 years |
COMMUNICATIONS & MANAGEMENT |
|
Interface Port(s) |
USB |
Control panel |
LCD status display with On Line : On Battery : Replace Battery and Overload indicators |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
SURGE PROTECTION AND FILTERING |
|
Surge energy rating |
320Joules |
Data Line Protection |
RJ-11 Surge Protection |
PHYSICAL |
|
Maximum Height |
143mm |
Maximum Width |
100mm |
Maximum Depth |
290mm |
Net Weight |
4.4kg |
Shipping Weight |
5.5kg |
Shipping Height |
220mm |
Shipping Width |
140mm |
Shipping Depth |
340mm |
Colour |
Black |
ENVIRONMENTAL |
|
Operating Environment |
0 – 40 °C |
Operating Relative Humidity |
0 – 95 % |
Operating Elevation |
0-3000meters |
Storage Temperature |
-15 – 45 °C |
Storage Relative Humidity |
0 – 95 % |
Storage Elevation |
0-15000meters |
Audible noise at 1 meter from surface of unit |
40.0dBA |
CONFORMANCE |
|
Approvals |
CE |
Standard warranty |
3 Years |
