Description
SPECIFICATIONS:
HARDWARE | |
Host Connector |
2 - USB-C® Male |
Video Output |
1 - HDMI™ Female |
Power Source |
Bus-powered |
Network Interface |
RJ45 (Gigabit Ethernet) |
Audio Supported |
Yes |
Ports |
1 - M.2 NVMe® /SATA Slot (2230,2242,2260,2280) 1 - USB-C® 3.2 Gen 2 1 - USB-C® Power Delivery 3.0 2 - USB™ Type-A 3.2 Gen 2 1 - USB™ Type-A 3.2 Gen 1 1 - 4K HDMI™ 1 - 4K DisplayPort™ 1 - SD™ & microSD™ 3.0 memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - Security Lock Slot |
PERFORMANCE | |
Maximum Display Resolution |
3840 x 2160 |
Maximum Display Refresh Rate |
60 |
Maximum Data Transfer Rate |
10 Gbps |
Maximum Displays Supported |
2 |
Compatible Networks |
10/100/1000 Mbps |
Audio Channel |
2.1 via HDMI™ / 3.5 mm Aux |
POWER | |
Power Delivery |
Up to 100W via USB-C® |
Power Consumption |
≤ 600 mA |
Input Current |
5A |
Input Voltage |
20V |
Output Current |
5A |
Output Voltage |
20V |
PHYSICAL SPECIFICATIONS | |
Color |
Grey & Black |
Enclosure Type |
Aluminum |
Cable Length |
0.6 in. (15 cm) |
Product Height |
1.02 in. (26 mm) |
Product Width |
3.14 in. (80 mm) |
Product Depth |
12.5 in. (318 mm) |
Product Weight |
0.83 lbs. (378g) |
Storage Temperature |
14 to 149°F (-10 to 65°C) |
Storage Humidity |
< 85% non-condensing |
Operating Temperature |
32 to 118°F (0 to 48°C) |
Operating Humidity |
< 85% non-condensing |
OTHERS |
|
Notes |
• To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10 Gbps USB-C® Gen 2 port on the docking station. • A 4K-capable display is required for obtaining the 3840 x 2160 resolution • If connected to a USB™ 3.0 (5 Gbps)/USB™ 2.0 port or if using a USB™ 3.0 (5 Gbps)/USB™ 2.0, performance may be limited. • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device • M1 MacBook Pro® and MacBook Air® only supports up to 1 external display. This single display limitation does not affect Intel® Mac® • Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time. If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance |
Package Contents |

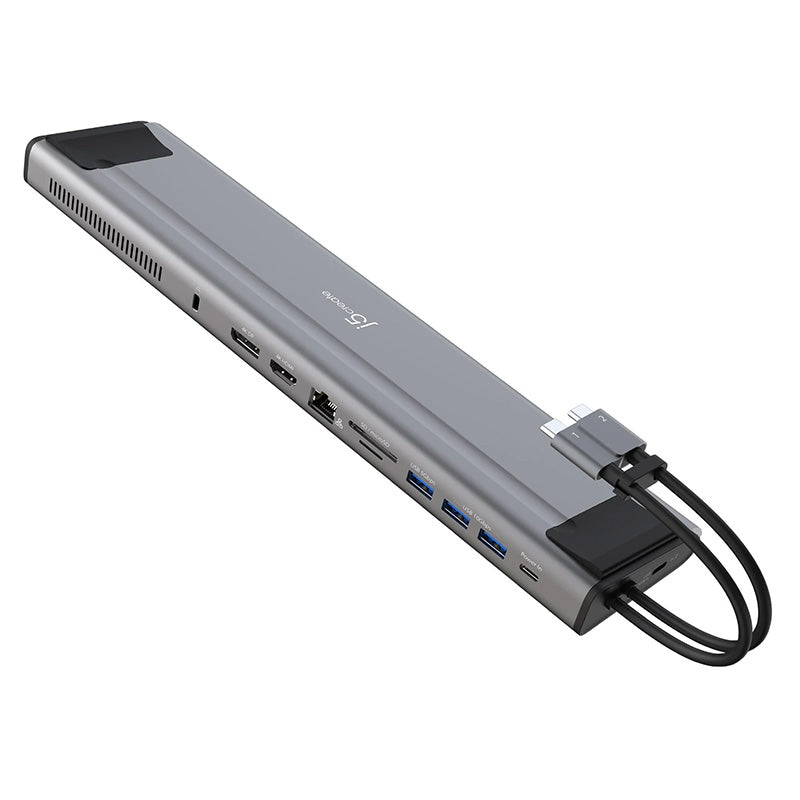

1 – JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station 1 - Quick Installation Guide (QIG) |
