Description

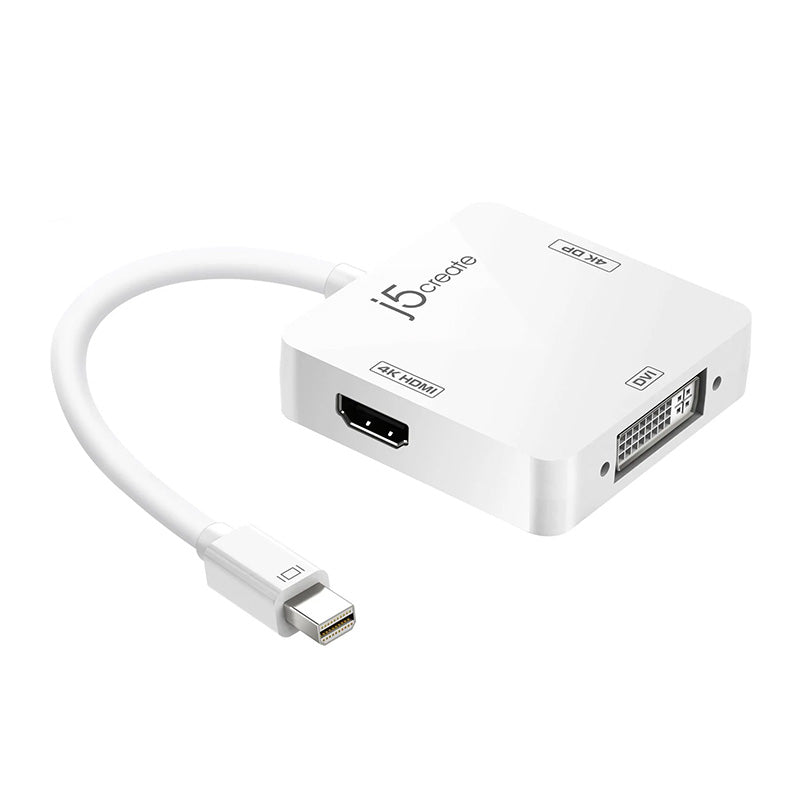

j5create mini DisplayPort to 4K DisplayPort with 4K HDMI and DVI Adapter
The JDA173 mini DisplayPort™ to 4K DisplayPort/4K HDMI™/DVI Adapter allows you to quickly and easily connect your Mac® or PC to an external monitor, HDTV, projector or other display device using DisplayPort™, HDMI™ or DVI. 3 different output signals in a single adapter provides maximum flexibility for connecting almost any display.
Connect the display to one of the DisplayPort™/HDMI™/DVI output ports
Supports resolutions up to DisplayPort™ 4K @ 60 Hz; HDMI™ 4K @ 30 Hz; DVI 1920 x 1080 @ 60 Hz
DP++™ Dual Mode DisplayPort™ Adapter
Supports Audio using DisplayPort™/HDMI™
Perfect for Mac® and Surface™
Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort™ signal
No software/drivers required
SPECIFICATIONS:
HARDWARE |
|
Connector Type |
Passive |
INTERFACE |
|
Host Interface |
DisplayPort™ Male Connector |
Video Interface |
DP™ (20 Pin) Female Connector; HDMI™ (19 Pin) Female Connector; DVI–D (25 Pin) Female Connector |
PHYSICAL SPECIFICATIONS |
|
Housing Material |
Plastic |
Dimensions |
Main Body: 60(W) X 60(H) X 15(D) Mm Cable Length: 100 Mm |
Weight |
Approximately 45g |
ENVIRONMENTAL |
|
Storage Temperature |
-10-65°C |
Storage Humidity |
85% Non-Condensing |
Operation Temperature |
0-40°C |
Operation Humidity |
85% Non-Condensing |
OTHERS |
|
System Requirements |
DisplayPort™ v1.2 required on graphics card or video source to support 4K x 2K @ 60 Hz resolution DP++™ port (Dual Mode DisplayPort™) required on video card or video source (DVI and HDMI™ pass-through must be supported) |
Package Contents |
JDA173 mini DisplayPort™ to 4K DisplayPort™/4K HDMI™/DVI Adapter Quick Installation Guide |
