j5create ScreenCast 4K Wireless Display Adapter

Host Connector

HDMI™ male

Power Source

USB™ micro-B to USB™ Type-A male

PERFORMANCE

HDMI™ Compliance

HDMI™ v1.4

Audio Channel

2.1 via HDMI™

Display Output Supported Resolutions

3840 x 2160
1920 × 1080
1280 × 720

Security (Encryption)

WPA2

WIRELESS PROTOCOLS

Standard

IEEE 802.11ac

Frequency

2.4 GHz, 5 GHz

Range

Up to 10 - 15 meters

Channel Width

20 MHz, 40 MHz

Antenna Type

External antenna

PHYSICAL SPECIFICATIONS

Color

White

Enclosure Type

Plastic

Cable Length

39 in. (100 cm)

Product Height

3.74 in. (95 mm)

Product Width

1.25 in. (32 mm)

Product Depth

0.43 in. (11 mm)

Product Weight

2.8 oz (79.5g)

Operating Temperature

+14 to +104 °F (-10 to +40 °C)

Operating Humidity

< 85% non-condensing

Storage Temperature

-4 to +122°F (-20 to +50°C)

Storage Humidity

< 85% non-condensing

OTHERS

System Requirements

Windows® 10 / 8.1

Android™ 4.0 or later

macOS® 10.15 or later with AirPlay® Support

iOS® 10.0 or later

iPadOS® 13 or later

Chrome OS™

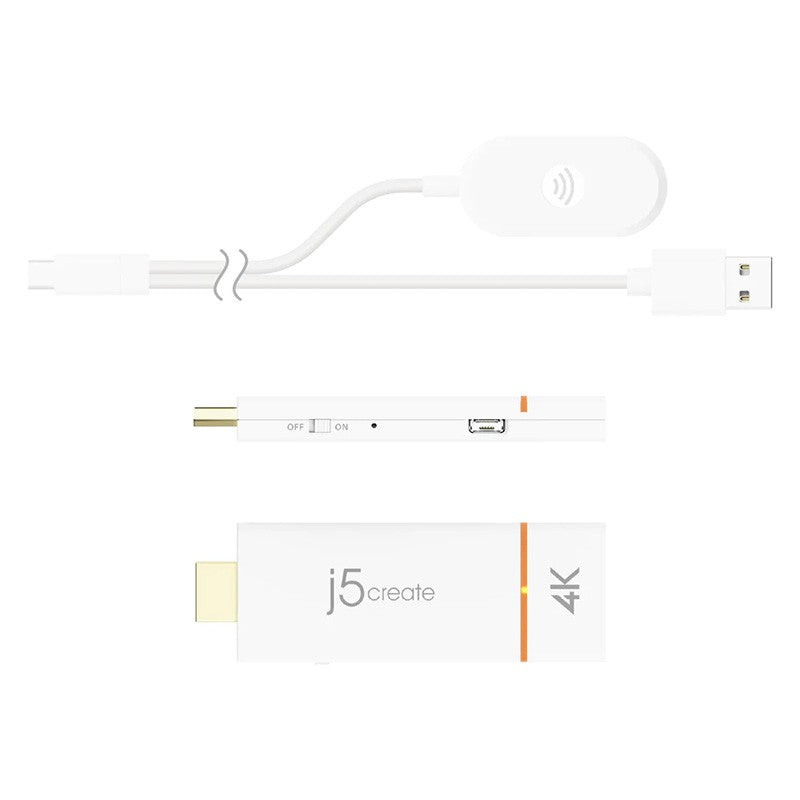

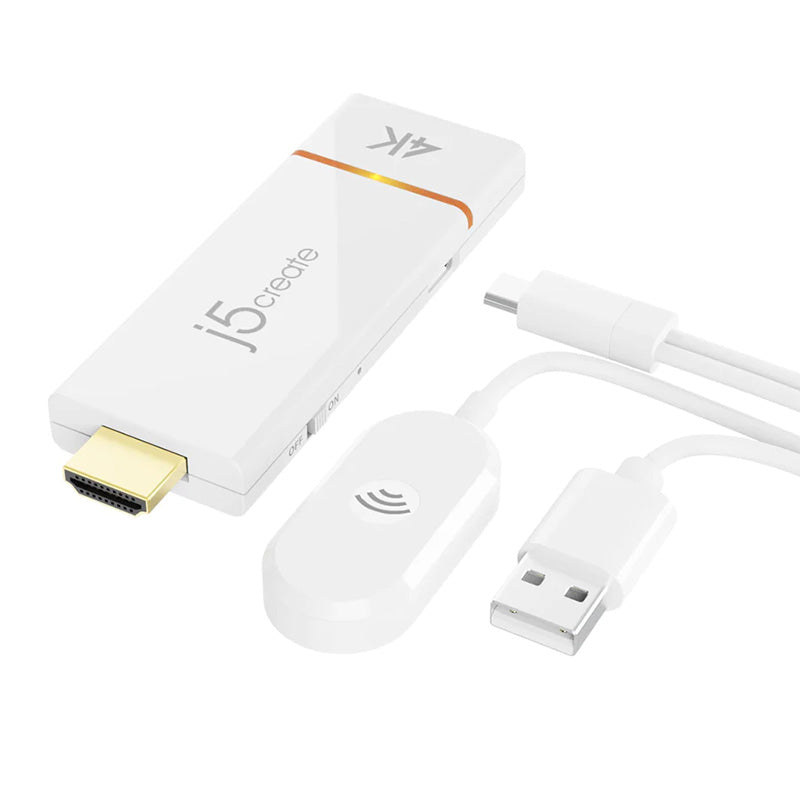

Package Contents

1 - JVAW76 ScreenCast 4K Wireless Display Adapter

1 - External antenna with USB™ Type-A power cable (3.9”)

1 - HDMI™ extension cable (5.11”)

1 - Quick Installation Guide (QIG)

Note

Intended to be used with an external wireless display
