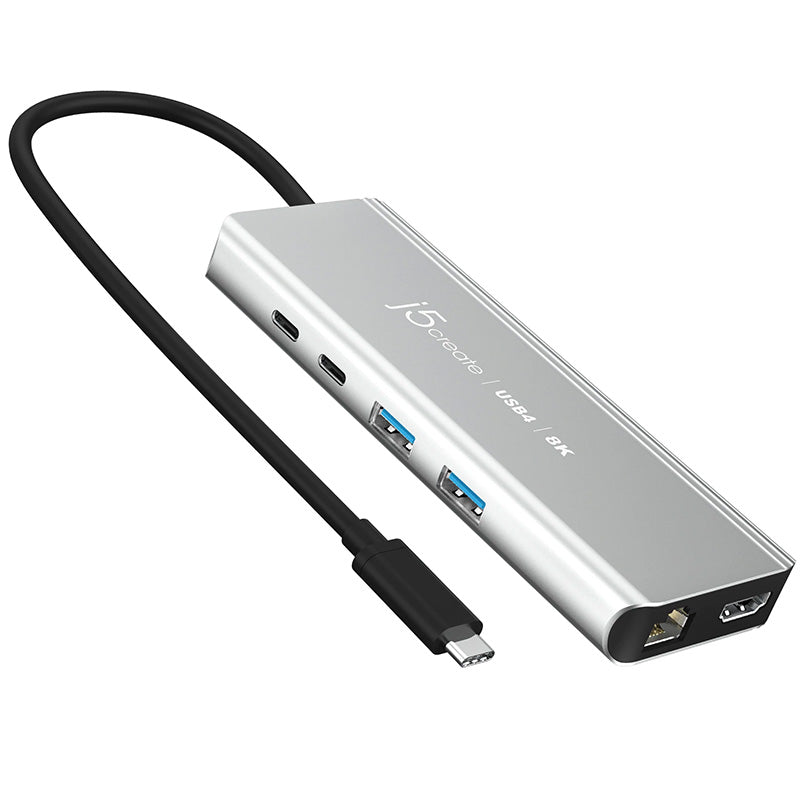

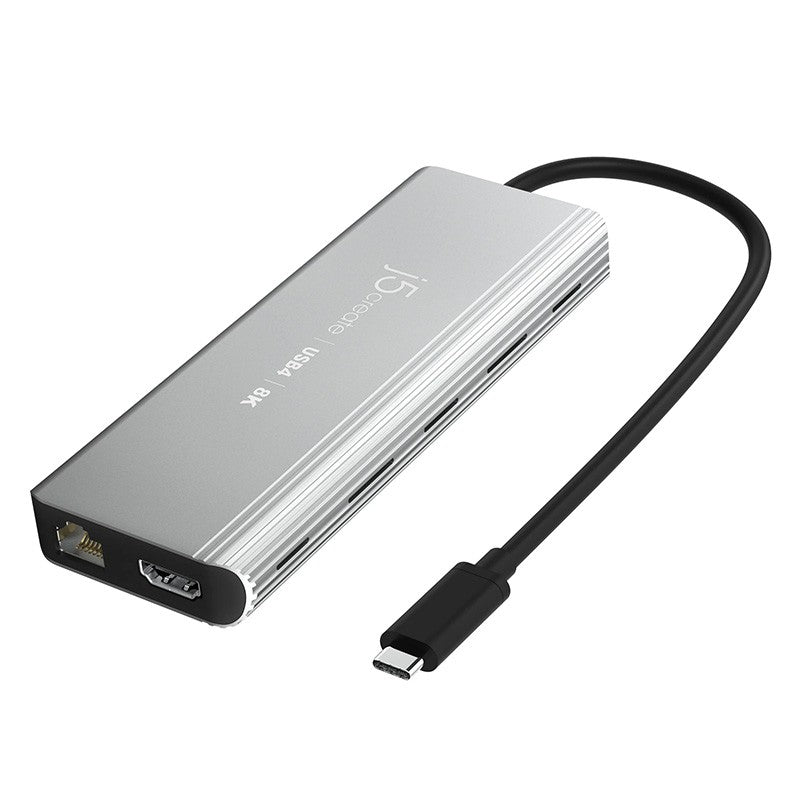

J5create USB4 8K Multi-Port Hub

Host Connector

1 - USB4® Male

Video Output

1 - HDMI™ Female

Power Source

Bus-powered or self-powered

Network Interface

Yes

Audio Supported

Yes

Ports

1- USB-C® 3.2 Gen2 10Gbps data transmission

1- USB-C® power delivery 3.0 100W

2- USB™ Type-A 3.2 Gen2 10Gbps data transmission

1- 8K HDMI™

1- RJ45 2.5 Gigabit Ethernet

PERFORMANCE

Maximum Display Resolution

7680 x 4320

Maximum Display Refresh Rate

60 Hz @ 3840 x 2160

144 Hz @ 3840 x 2160 (*Only for DSC host)

30 Hz @ 7680 x 4320

60 Hz @ 7680 x 4320 (*Only for DSC host)

Maximum Data Transfer Rate

10Gbps

Displays Supported

HDMI™

Compatible Networks

10M/100M/1000M/2.5 Gigabit

Audio Channel

1 - 2.1 via HDMI™

POWER

Power Delivery

Up to 100W via USB-C®

Power Consumption

≤ 900 mA

Input Current

Up to 5A

Input Voltage

Up to 20V

Output Current

Up to 4.75A

Output Voltage

Up to 20V

PHYSICAL SPECIFICATIONS

Color

Space Grey

Enclosure Type

Aluminum

Cable Length

7.87 in. (200 mm)

Product Height

5.3 in. (135 mm)

Product Width

2 in. (51 mm)

Product Depth

0.59 in. (15 mm)

Product Weight

3.84 oz (109g)

Storage Temperature

0 to 155°F (-17 to 68°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Operating Humidity

< 85% non-condensing

OTHERS

System Requirements

• Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops

• GPU and video source:

- DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz

- DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz

* DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above

* Recommended Graphics Cards: Intel® HD Graphics 620, Intel'® HD Graphics 520 or above

* Notes: Macs supports up to 4K 60Hz on an 8K HDMI™ display

Package Contents

1 - JCD403 USB4® 8K Multi-Port Hub

1 - Quick Installation Guide (QIG)

Notes

• DisplayPort™ 1.4 is required on graphics card and video source to achieve 8K @ 30

• DisplayPort™ 1.4 and Display Stream Compression (DSC) is required on graphics card and video source to achieve 8K   @ 60

• A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution

• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited

• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device

• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter   while copying files.

• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
