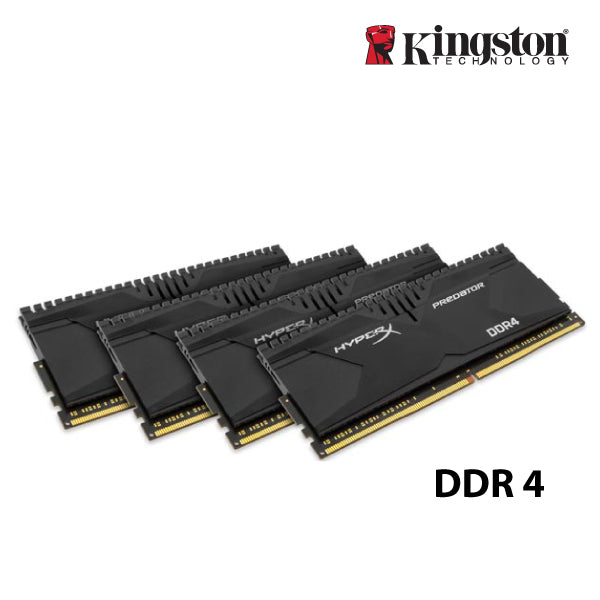

Kingston Predator 16GB HX424C12PB2K4/16 2400Mhz DDR4 RAM

HX424C12PB2K4/16
16GB (4GB 512M x 64-Bit x 4 pcs.)
DDR4-2400 CL12 288-Pin DIMM


               DESCRIPTION
       HyperX HX424C12PB2K4/16 is a kit of four 512M x 64-bit (4GB) DDR4-2400 CL12 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0 . Total kit capacity is 16GB. Each module has been tested to run at DDR4-2400 at a low latency timing of 12-13-13 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

XMP TIMING PARAMETERS


• JEDEC: DDR4-2133 CL15-15-15 @1.2V


• XMP Profile #1: DDR4-2400 CL12-13-13 @1.35V


• XMP Profile #2: DDR4-2133 CL13-13-13 @1.2V



  FEATURES


• Power Supply: VDD=1.2V Typical


• VDDQ = 1.2V Typical


• VPP - 2.5V Typical


• VDDSPD=2.2V to 3.6V


• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals


• Low-power auto self refresh (LPASR)


• Data bus inversion (DBI) for data bus


• On-die VREFDQ generation and calibration


• Single-rank


• On-board I2 serial presence-detect (SPD) EEPROM


• 16 internal banks; 4 groups of 4 banks each


• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)


• Selectable BC4 or BL8 on-the-fly (OTF)


• Fly-by topology


• Terminated control command and address bus

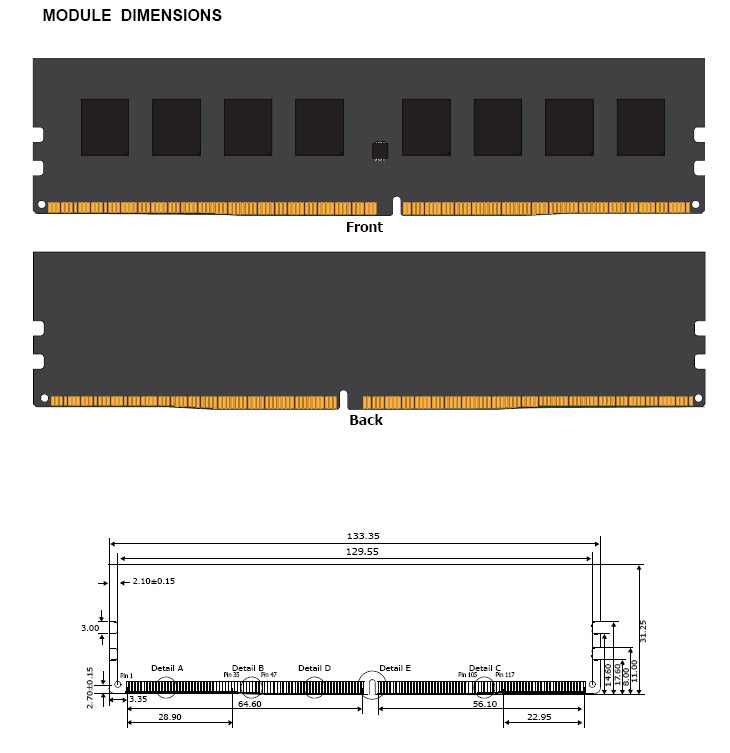

• Height 2.166 (55.00mm), w/ heatsink
