Description

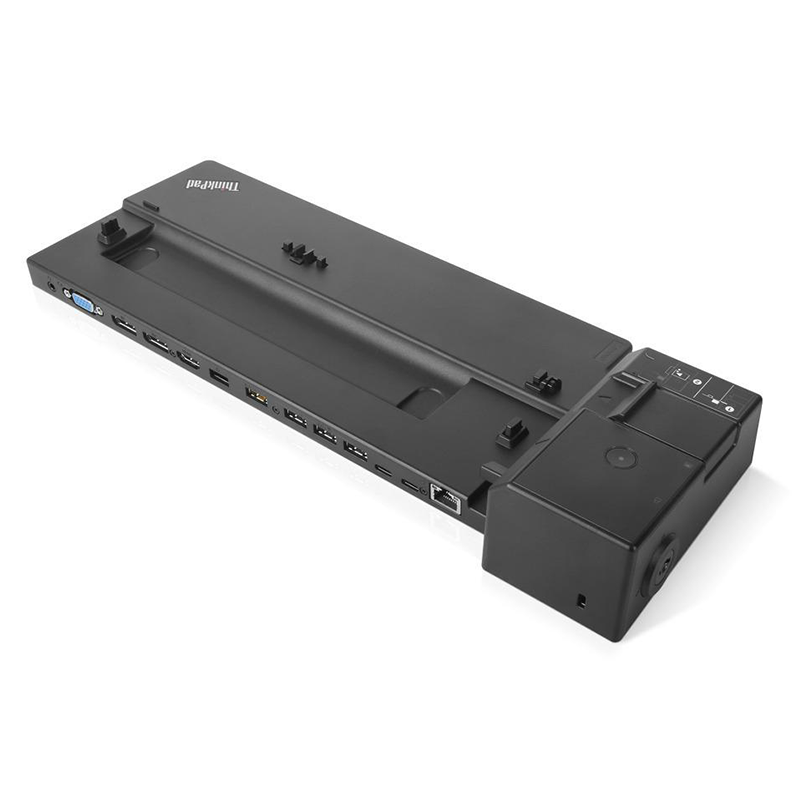

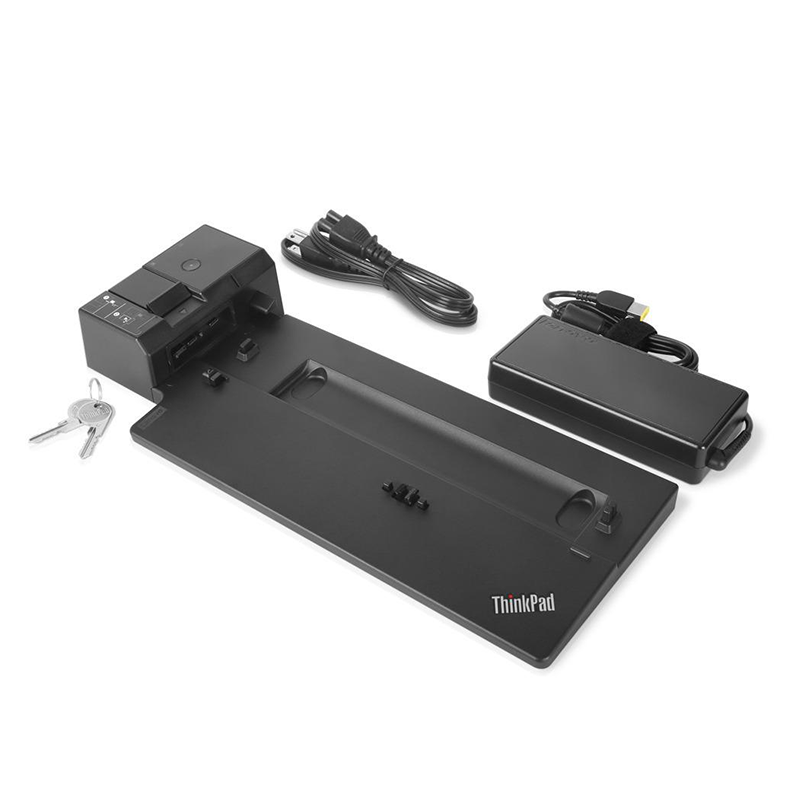

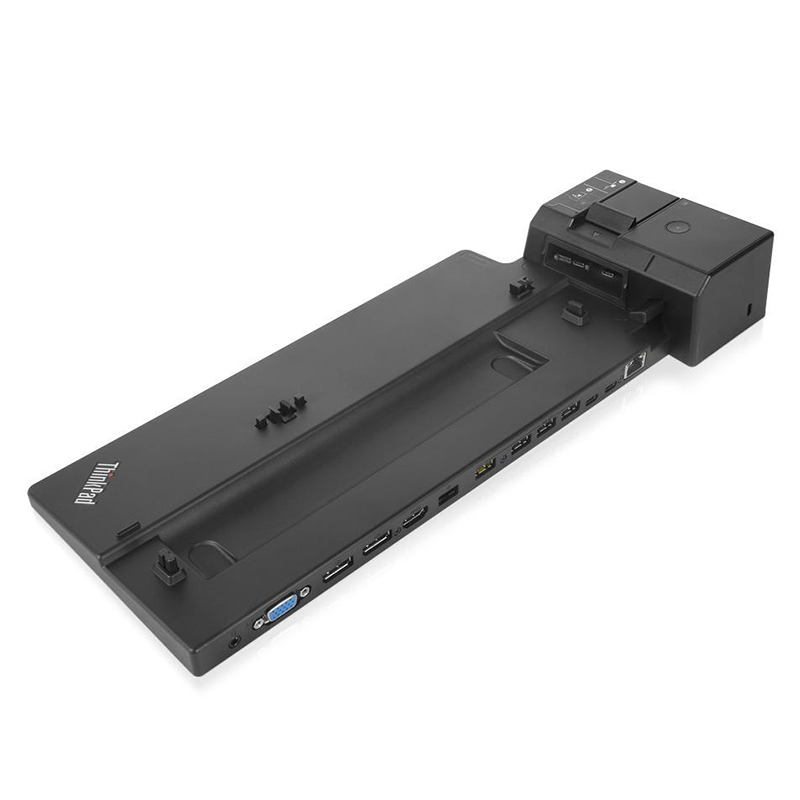

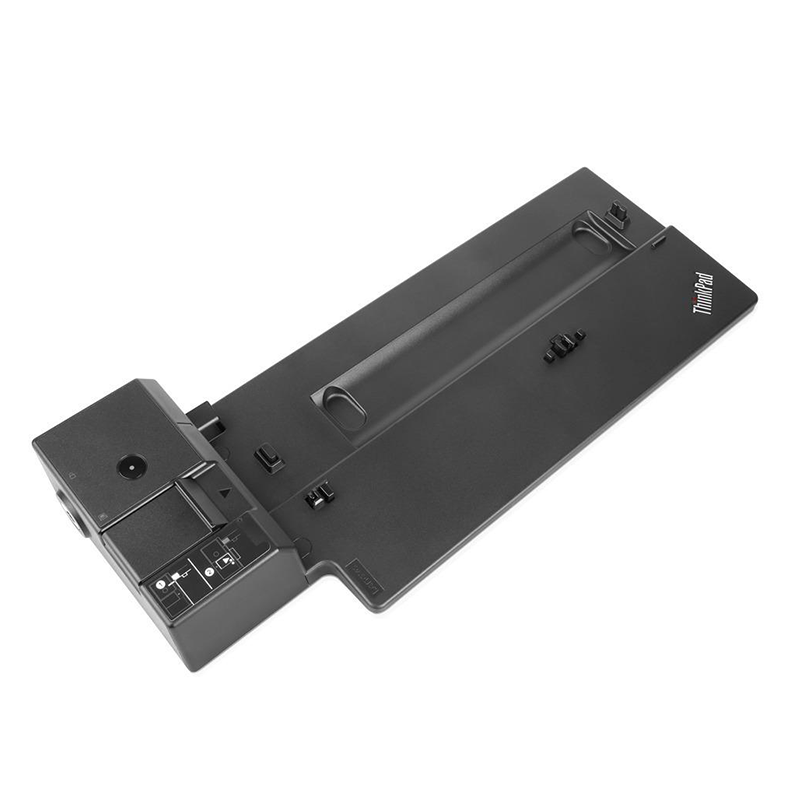

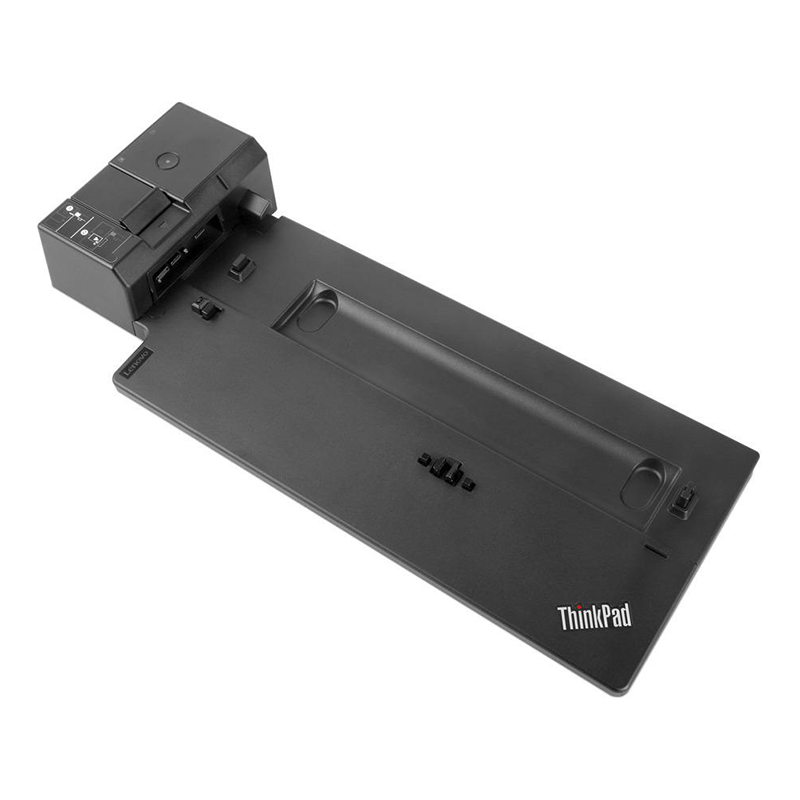

Lenovo 40AJ0135AU Thinkpad Ultra Docking Station
The ThinkPad Ultra Docking Station provides the best docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays. Its rapid charging support and mirrored power button make it easy to unlock and go.
Featuring multiple video ports, connect up to three UHD displays for maximum productivity gains. Designed for enterprise environments, ThinkPad Ultra Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed and extensively tested, ThinkPad Ultra Docks provide seamless docking in a minimised form factor.
Enterprise-class universal docking for 2018 T, L, X, and X1 Series ThinkPad notebooks; Innovative side connector minimises desk space; Intel vPro, PXE boot, Wake-on LAN, and MAC address pass-through; Supports ThinkPad RapidCharge; Mirrored power button and mechanical unlock; Optional master key lock
SPECIFICATIONS:
Compatibility |
P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280 |
Operating System Requirement |
Support OS: Windows 11, Windows 10 |
Physical Specifications |
Approximate Length: 422 mm (16.61 in) Approximate width: 200 mm (7.87 in) Approximate height: 86 mm (3.39 in) Approximate weight: 2.0 kg (4.4 lbs) |
Ports, Connectors, Security |

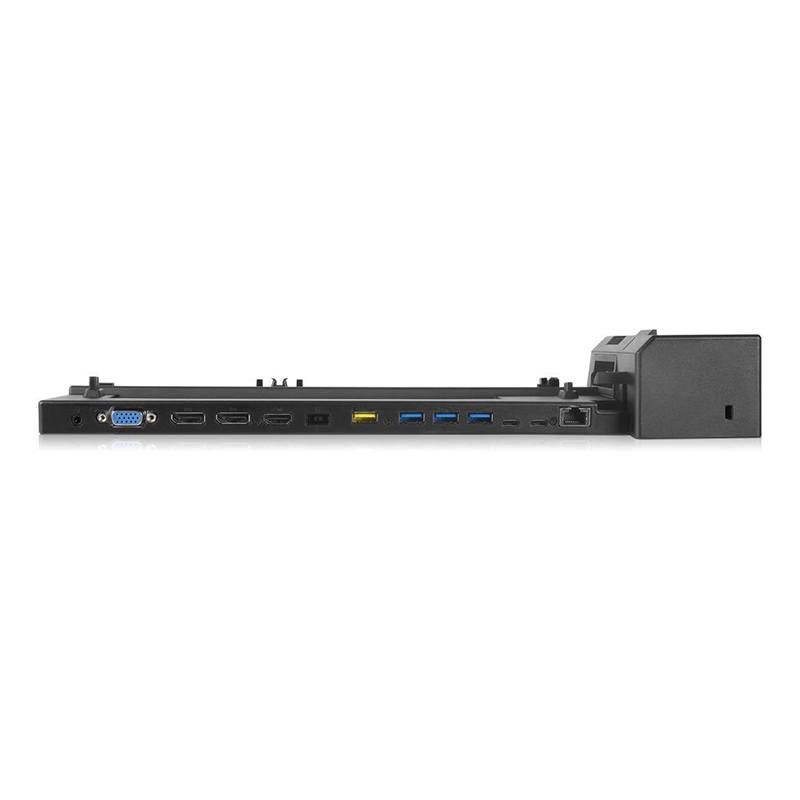

Four - USB 3.1 gen2 (10Gbps) with 1* always-on USB charging Two - USB-C ports (10Gbps, 5V 3A power) 10/1000 Gigabit Ethernet Two DisplayPort 1.4 HDMI 2.0 VGA Stereo/Mic Combo Audio Port DC-IN Kensington® Lock Slot |
Monitor Resolutions and Refresh Rates |
DisplayPort port: 4096*2160@60Hz HDMI port: 4096*2160@60Hz VGA port: 2048*1536@85Hz |
Operating Environment |
Maximum Humidity: 95% ( no Condensation) Minimum Humidity: 8% Maximum Temperature: 35° C (95° F) Minimum Temperature: 0° C (32° F) |
