Description
SPECIFICATIONS:
PERFORMANCE | |
Processor |
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB |
Graphics |
Integrated Intel® UHD Graphics |
Chipset |
Intel® SoC Platform |
Memory |
2x 8GB SO-DIMM DDR4-3200 |
Memory Slots |
Two DDR4 SO-DIMM slots, dual-channel capable |
Max Memory |
Up to 32GB DDR4-3200 |
Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
Storage Support |
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 1TB |
Card Reader |
No card reader |
Optical |
None |
Audio Chip |
High Definition (HD) Audio, Realtek® ALC256 codec |
Speakers |
2Wx1 |
Microphone |
No microphone |
Power Supply |
65W 89% Adapter |
DESIGN | |
Keyboard |
USB Calliope Keyboard, Black, English |
Mouse |
USB Calliope Mouse, Black |
Optional Bay |
None |
Expansion Slots |
Two M.2 slots (one for WLAN, one for SSD) |
Case Color |
Black |
System Fan |
1x System Fan |
Stand |
None |
Adapter Cage |
None |
Toolless Chassis Screw |
None |
Mounting |
None |
Pen |
Pen Not Supported |
Form Factor |
Tiny (1L) |
Dimensions (WxDxH) |
179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
Weight |
Around 1.11 kg (2.45 lbs) |
CONNECTIVITY | |
Ethernet |
Integrated 100/1000M |
WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
WWAN |
Non-WWAN |

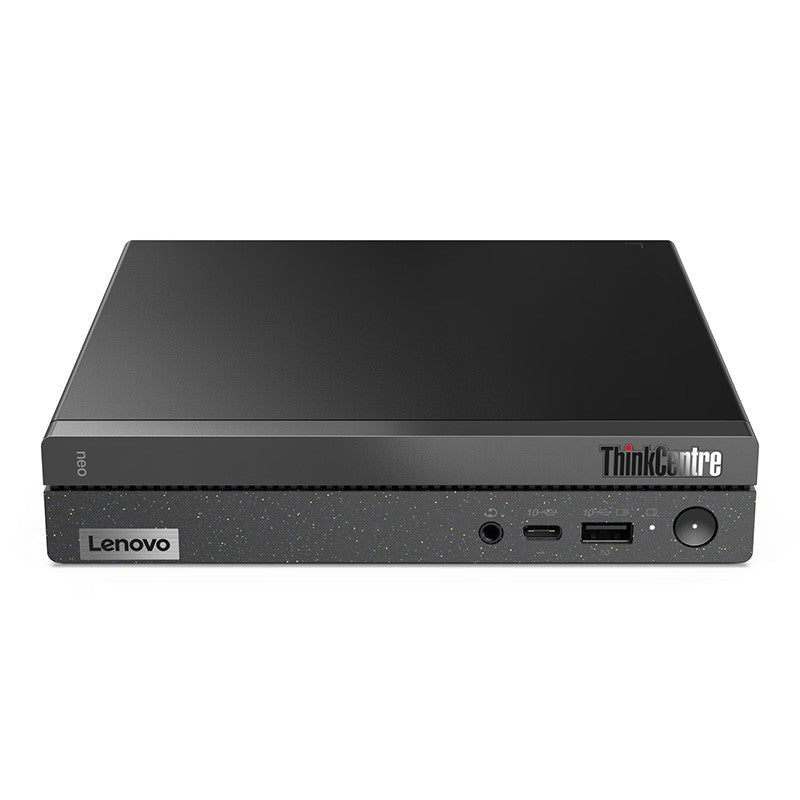

Front Ports |
1x USB-C® 3.2 Gen 2 (support data transfer and 5V@0.9A charging) 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging) 1x headphone / microphone combo jack (3.5mm) |

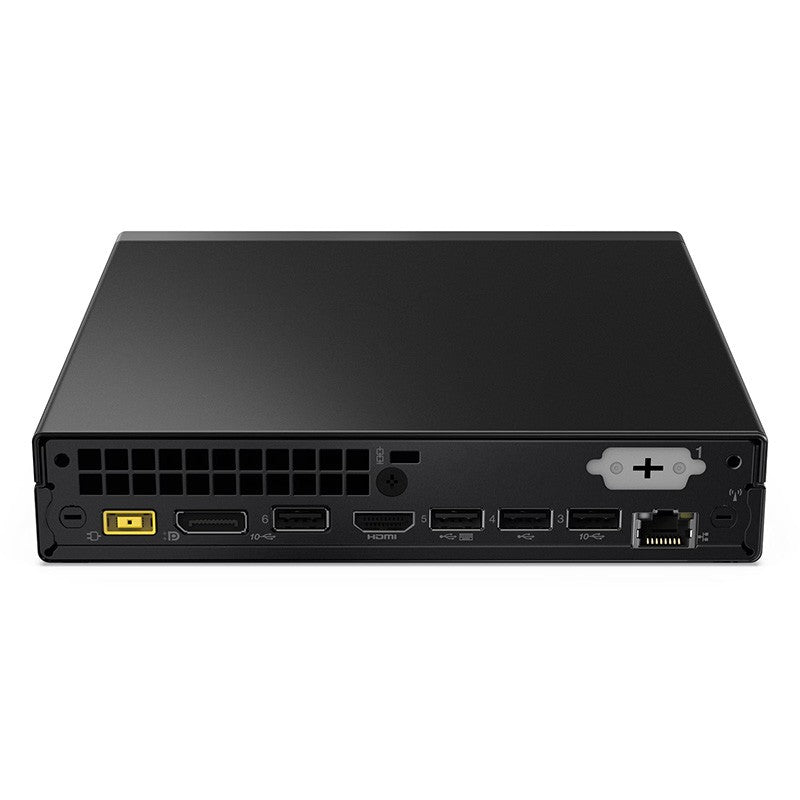

Rear Ports |
2x USB 2.0 2x USB 3.2 Gen 2 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4 1x Ethernet (RJ-45) |
Monitor Cable |
None |
SECURITY & PRIVACY | |
Security Chip |
Firmware TPM 2.0 integrated in SoC |
Physical Locks |
Kensington® Security Slot™, 3 x 7 mm |
Chassis Intrusion Switch |
Chassis Intrusion Switch |
MANAGEABILITY | |
System Management |
Non-vPro® |
CERTIFICATIONS | |
Green Certifications |
ENERGY STAR® 8.0 EPEAT™ Gold Registered ErP Lot 3/7 RoHS compliant TCO Certified 9.0 |
SOFTWARE | |
Operating System |
Windows® 11 Pro, English |
Bundled Software |
None |
