The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks^, automated firmware updates, next-level plug-and-play. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard notebooks.
^ThinkPad Universal USB-C Dock could charge Notebook max as 100W with 135W Slim Tip power adapter (sold seperately) connected to the dock.
DISCLAIMER: Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
-
One dock, no limits: Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
-
One cable, no hassle: With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
-
Entire fleet, one manager: The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
SPECIFICATIONS:
|
Colour
|
Black
|
|
Max Number of External Monitors
|
3
|
|
Weight
|
340 g
|
|
Refresh Rate
|
2x 3840x2160 @60 Hz; 1x 3840x2160 @30 Hz
|
|
AC Plug
|
Slim-tip
|
|
Warranty Type
|
CRU
|
|
Output Power
|
65 W with 90 W power adapter connected; 100 W with 135 W power adapter connected
|
|
Brand
|
ThinkPad
|
|
OS Requirements
|
Windows 10; Windows 7
|
|
Packed Weight
|
955 g
|
|
Agency Approvals
|
FCC/ICES; CE; KCC; RCM; BSMI; VCCI; CB; cULus; EAC; TUV- Mark; Serbia Kvalitet; LoA; Israel SII; Ukraine DoC; NOM
|
|
Audio Ports
|
1x Combo Audio Jack
|
|
Charging Port
|
DC-IN
|
|

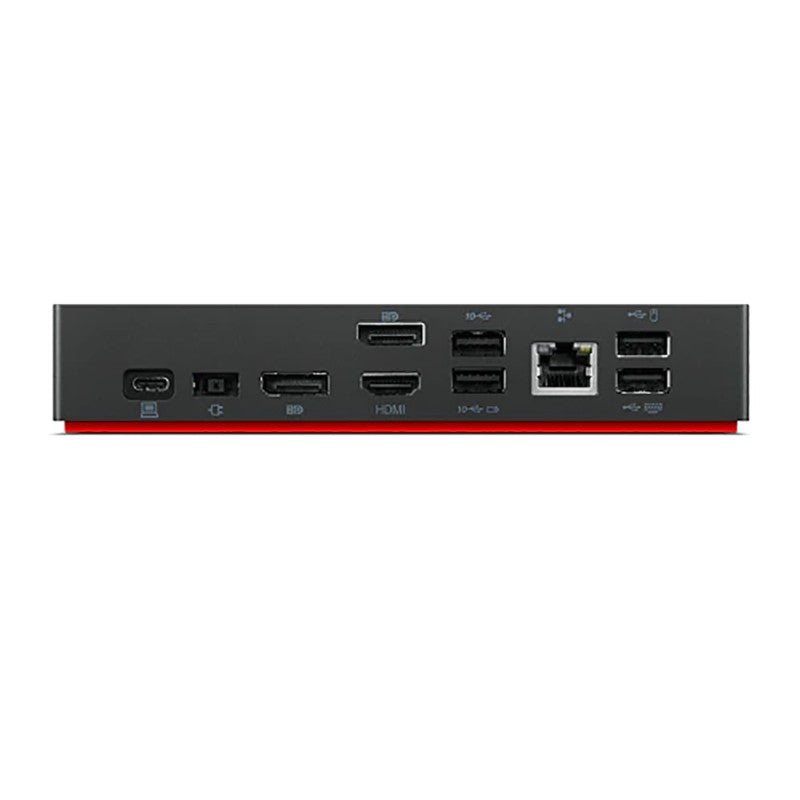

USB Ports
|
3x USB3.1; 2x USB2.0; 1x USB-C
|
|
Video Ports
|
2x Display Port; 1x HDMI Port
|
|
Ethernet
|
1x Gigabit Ethernet
|
|
Package Type
|
Brown Box
|
|
Packed Dimensions (L x D x H)
|
210 x 158 x 75 mm
|
|
Height
|
30.75 mm
|
|
Length
|
171 mm
|
|
Depth
|
80 mm
|
|
Warranty Period
|
Three Years
|
|
Maximum Operating Temperature
|
35 °C
|
|
Minimum Operating Temperature
|
0 °C
|
|
Maximum Relative Humidity (%)
|
95% (no Condensation)
|
|
Minimum Relative Humidity (%)
|
20%
|
|
Driver Needed
|
Yes
|
|
Input Power
|
90 W
|
|
Physical Security Feature
|
1x Security lock slot
|
|
Power Button
|
Yes
|
|
Power Delivery
|
Yes
|
|
Shipment Group
|

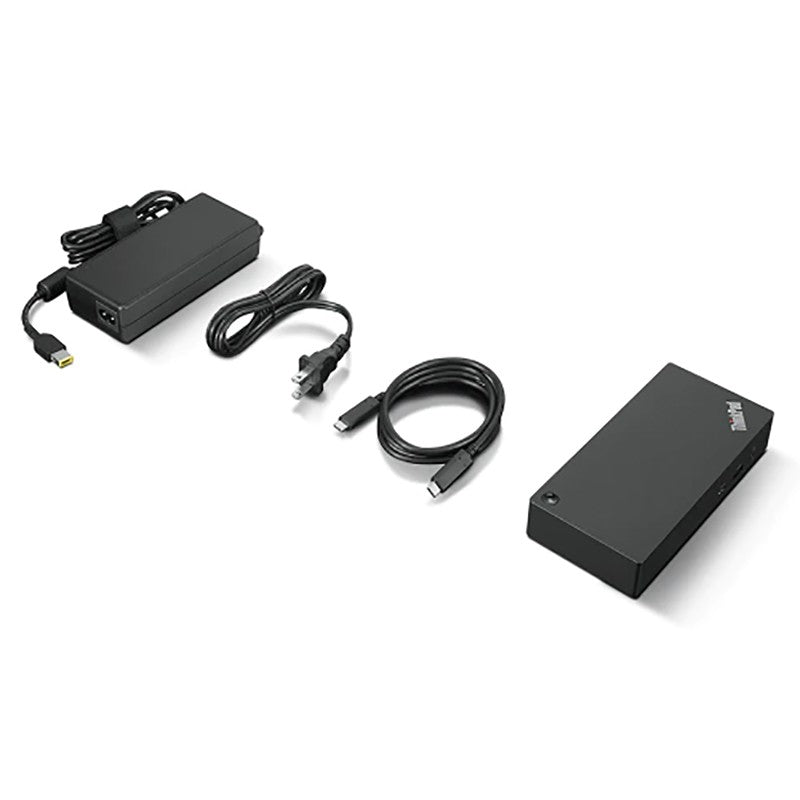

ThinkPad Universal USB-C Dock; 90 W AC Power adapter; Power cord; Pubs; Cable
|
|
