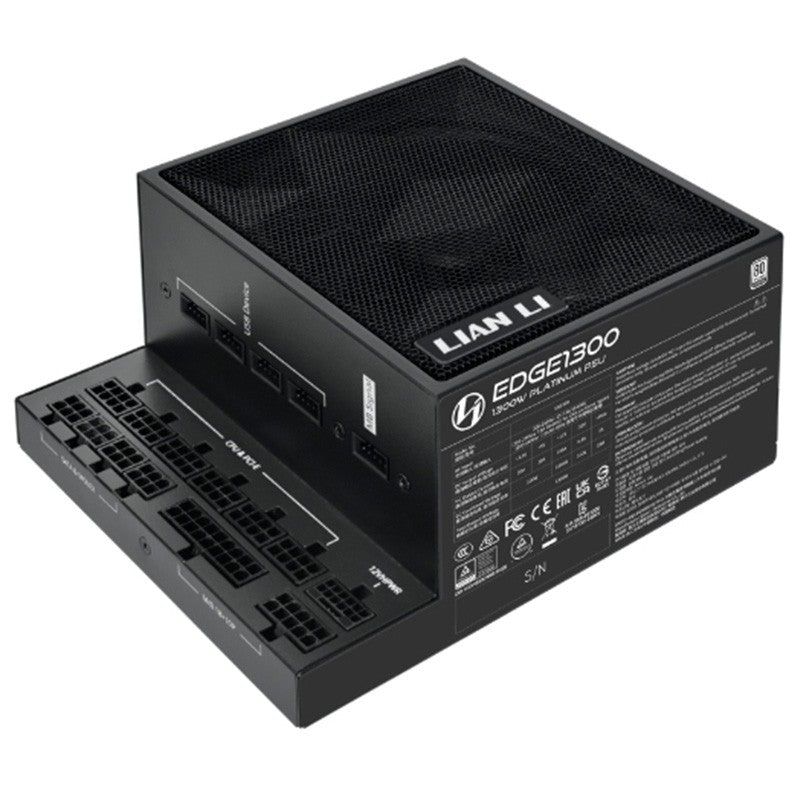

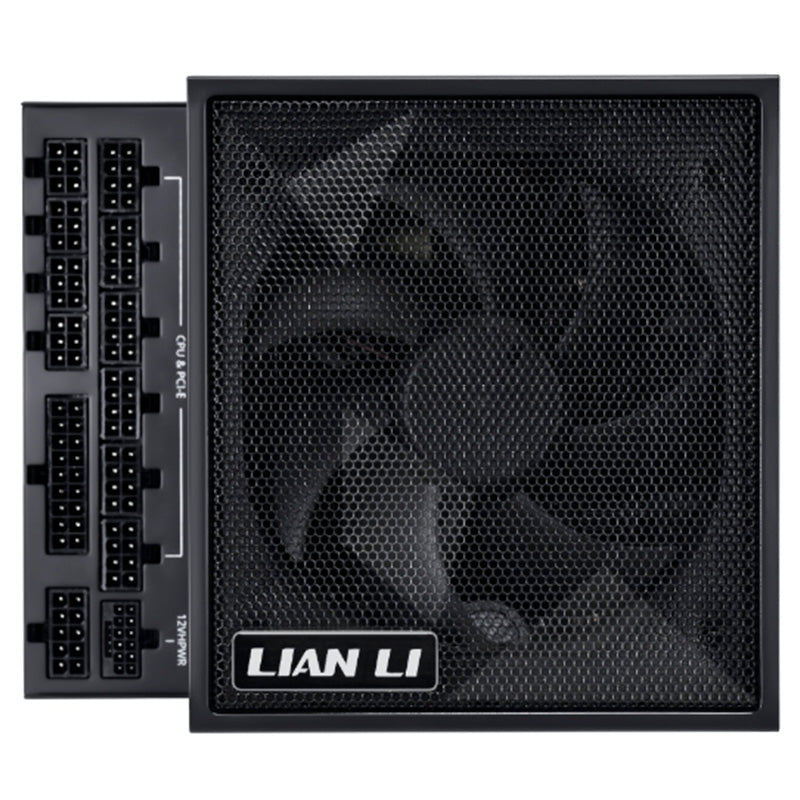

Lian Li 1300W EG1300.BE 80+ Platinum T-Shape ATX Power Supply with 4 Port USB Hub - Black

Power supply design

Fully modular

Color

Black

Material

Steel

Form factor

ATX 3.1

Certification

80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

Max. DC output

1300W

Combined +3.3V & +5V

120W

Combined +12V

1296W

Input voltage

100-240Vac

Input frequency range

15-7.5A 50-60Hz

PFC

Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

Efficiency

92.39% MAX

Protective circuit

OCP/OVP/OTP/OPP/SCP/UVP

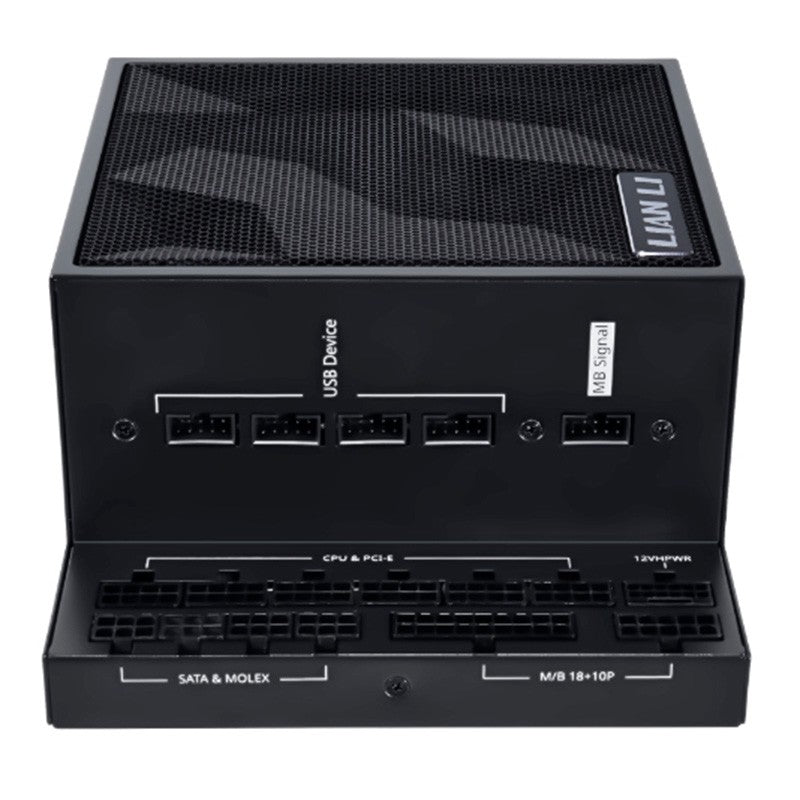

Connectors

1 x 24/20-Pin motherboard connector (500mm) x1pcs

1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs

1 x 8/6+2 Pin PCle connector (550m m) x4pcs

1 x 12V-2×6 connector (550mm) × 1pcs

1 x 12VHPWR - 2 x 8pin connector (550mm) × 1pcs

4 x 4-Pin Peripheral connector   (500mm-150mm-150mm- 150mm) x1pcs

4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs

4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs

4 x Y Type SATA connector (400mm-125mm*2) x1pcs

USB*9pin - USB*9pin connector (350mm) × 1pcs

USB*9pin -Type A connector (550mm) × 1pcs

Fan type

120mm FDB Fan

Fan speed

2400RPM

Fan noise level

33.61dBA
