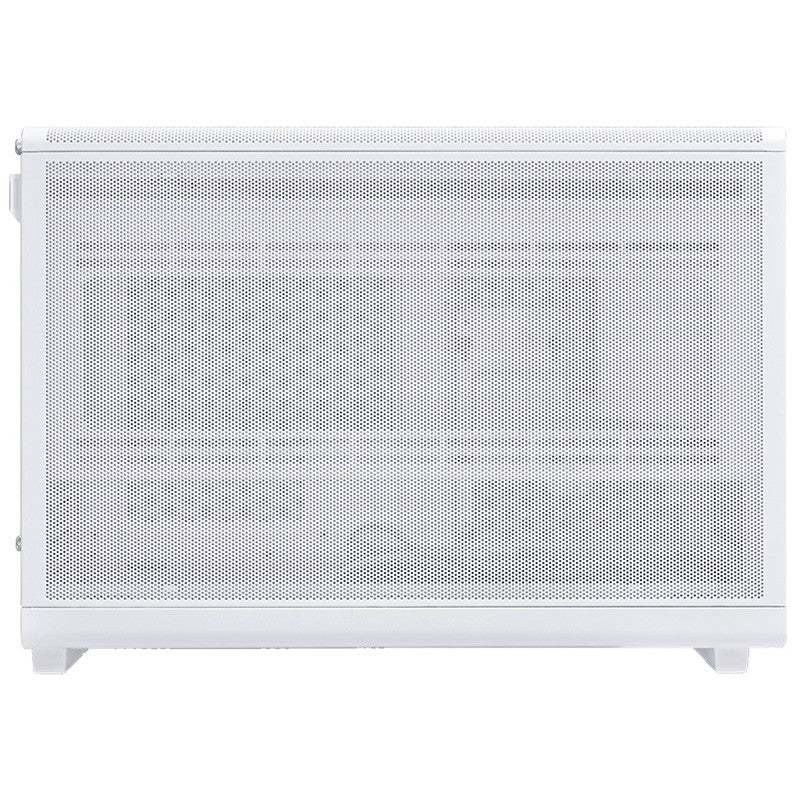

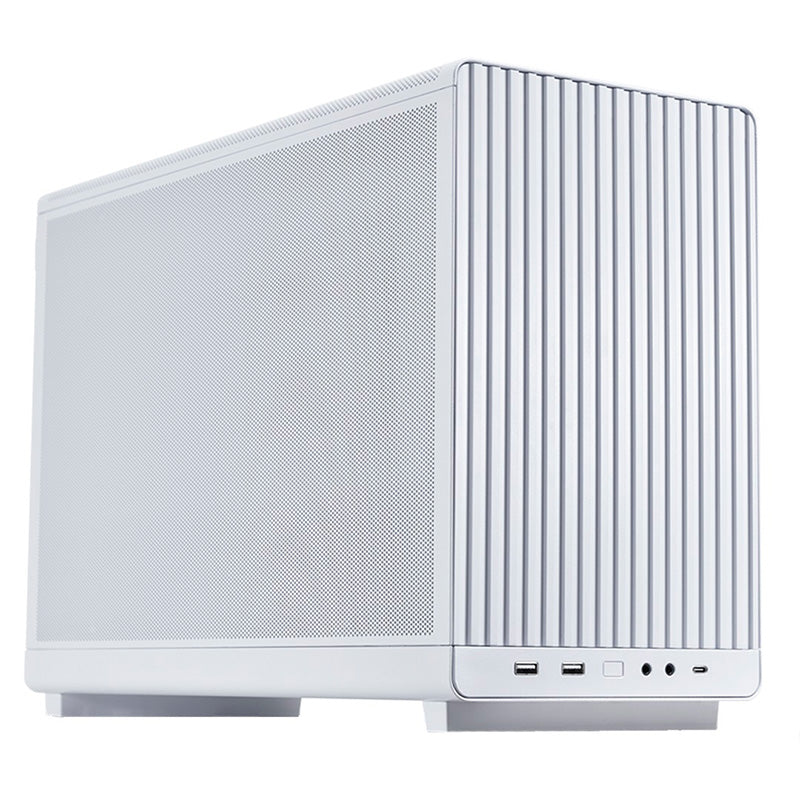

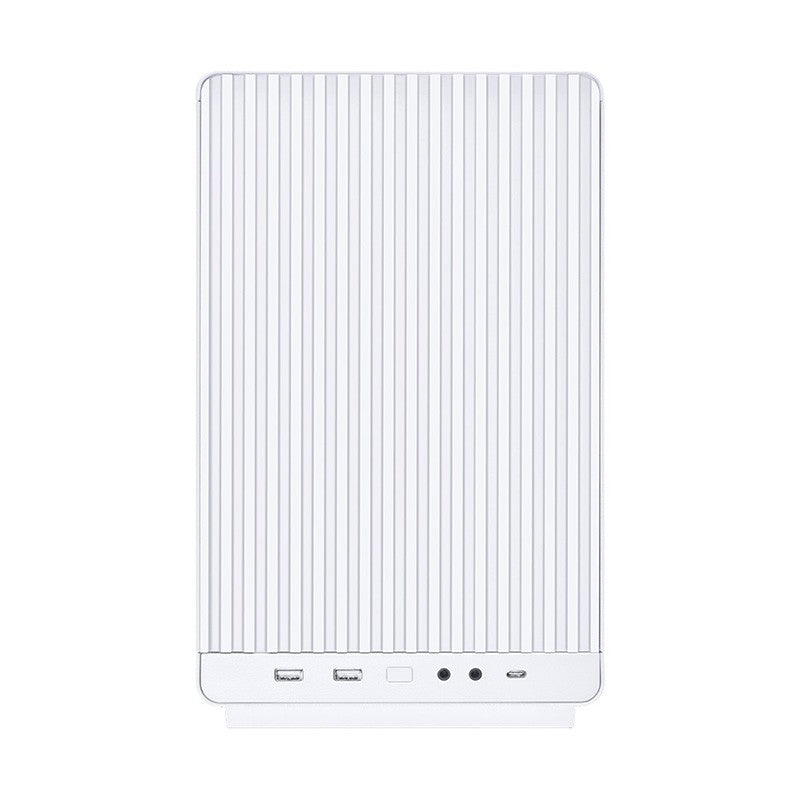

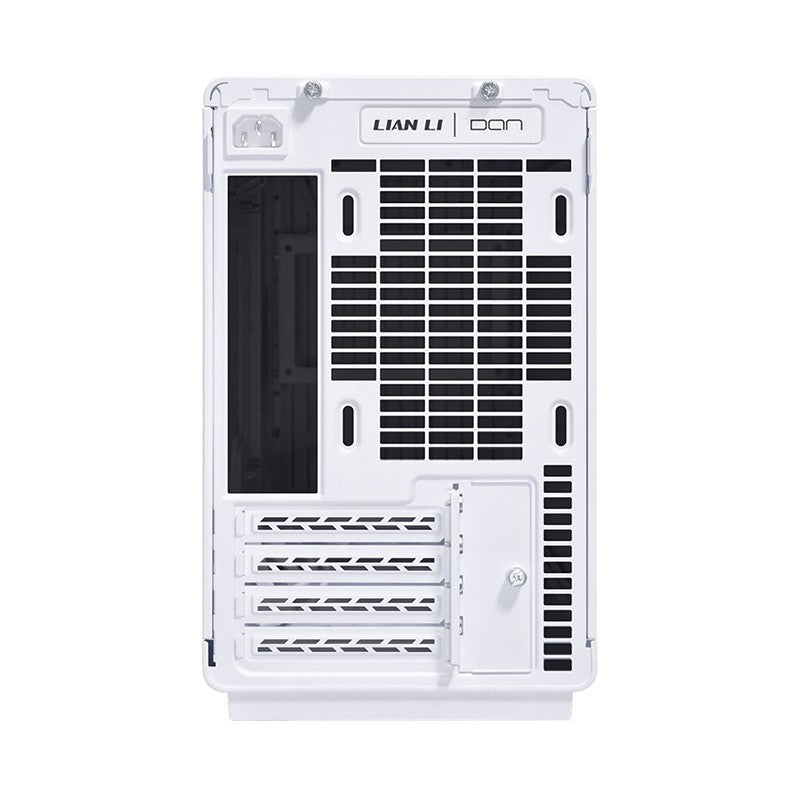

Lian Li DAN-A3 Mesh mATX Case - White

Case Type

MFF (Micro Form Factor)

Dimension

(D) 443 mm x (W)194 mm x (H) 321.5 mm
(D) 443 mm x (W) 194 mm x (H) 300 mm (w/o feet)

Capacity

26.3 L

Material

Steel

Motherboard Support

M -ATX / ITX

PSU Support

ATX / SFX / SFX-L (Max 220 mm)

Fan Support

Top: 3 x 120mm or 2 x 140 mm
Side: 3 x 120mm or 2 x 140 mm
Bottom: 3 x 120 mm
Rear: 1 x 120 mm

Radiator Support

Top: 1 x 200 / 280 / 240 mm
Side: 1 x 200 / 280 / 240 mm
Bottom: 1 x 240 mm (300 mm with fan at the bottom)

Drive Support

Tray: 2 x 2.5" SSD
Bottom: 1 x 2.5" SSD or 1 x 3.5" HDD

GPU Length Clearance

Max 415 mm

CPU Height Clearance

Max 165 mm

Expansion Slots

4

I/O Ports

1 x Power Button
2 x USB 3.0 Type-A
1 x USB 3.1 Type-C
1 x Mic
1 x HD Audio

Dust Filter

1 x Bottom
